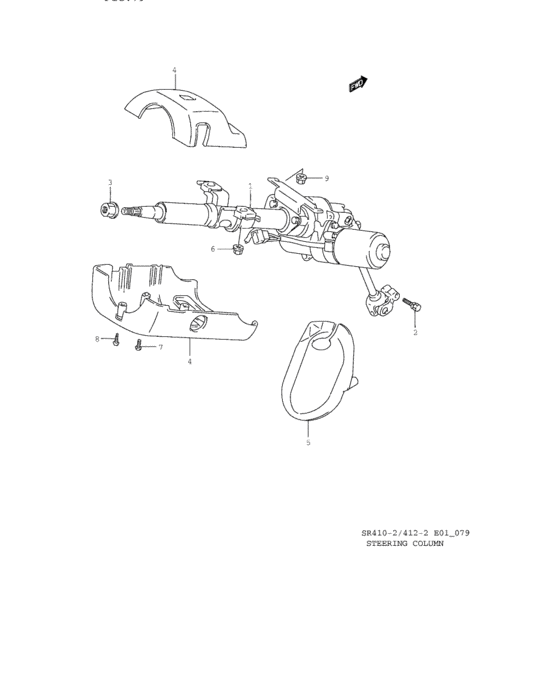

Steering column (STEERING COLUMN) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-75F00-000
Column assy, colps steering
GA:,4 |
48200-75F00-000 |
— | ||
|
1
|
1
48200-75F50-000
Column assy,colps steering
GA:Chile,Belgium |
48200-75F50-000 |
— | ||
|
1
|
1
48200-75F32-000
Column assy, colps steering
RHD,GL:,,4,GLX: |
48200-75F32-000 |
— | ||
| replacement | |||||
|
1
|
1
48200-75F33-000
COLUMN ASSY,COLPS STRG
RHD,GL:,,4,GLX: |
48200-75F33-000 |
— | ||
|
1
|
1
48200-75F83-000
Column assy, colps steering
LHD,GA:Belgium POWER STRG,GL:,0,Belgium,Brazil,Israel,GLX:Belgium,Taiwan |
48200-75F83-000 |
— | ||
| replacement | |||||
|
1
|
1
48200-75F84-000
Column assy,colps steering
LHD,GA:Belgium POWER STRG,GL:,0,Belgium,Brazil,Israel,GLX:Belgium,Taiwan |
48200-75F84-000 |
— | ||
|
2
|
2
09117-08053-000 BOLT(8X30) |
09117-08053-000 |
from US $1.26 |
||
|
3
|
3
09159-12025-000 NUT |
09159-12025-000 |
from US $0.77 |
||
|
4
|
4
48400-75F50-T01 COVER ASSY,STRG COL(GRAY)LHD,GA:Belgium,GL:Belgium,Brazil,Israel,GLX:Belgium,Taiwan |
48400-75F50-T01 |
US $47.84 |
||
|
4
|
4
48400-81A50-T01
Cover assy,steering column
LHD,GL:,0 |
48400-81A50-T01 |
— | ||
|
4
|
4
48400-75F00-T01 COVER ASSY,STRG COL(GRAY)RHD,GA:,4,GL:,4,GLX: |
48400-75F00-T01 |
US $47.84 |
||
|
4
|
4
48400-81A00-T01
COVER ASSY,STRG COL(GRAY)
RHD,GL: |
48400-81A00-T01 |
— | ||
|
5
|
5
48481-75F50-000
COVER,STRG JOINT
LHD |
48481-75F50-000 |
— | ||
|
5
|
5
48481-75F00-000
COVER,STRG JOINT
RHD |
48481-75F00-000 |
— | ||
|
6
|
6
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
6
|
6
09159-08135-000 NUT |
09159-08135-000 |
from US $0.74 |
||
|
7
|
7
09136-05030-000 SCREW(5X12) |
09136-05030-000 |
from US $0.52 |
||
|
8
|
8
03211-05123-000
Screw
|
03211-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
03211-0512A-000 SCREW |
03211-0512A-000 |
from US $0.45 |
||
|
9
|
9
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
