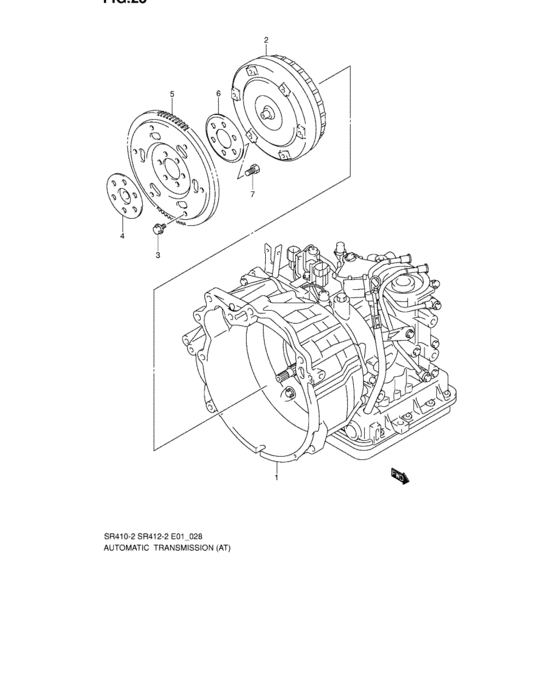

Automatic transmission (AT) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- AT
- grade
- GLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-75F82-000
Transmission assy, automatic
|
20002-75F82-000 |
— | ||
| replacement | |||||
|
1
|
1
20002-75F84-000
T/M ASSY,AUTOMATIC
|
20002-75F84-000 |
— | ||
|
2
|
2
22710-75F70-000
CONVERTER,TORQUE
SR410 |
22710-75F70-000 |
— | ||
|
2
|
2
22710-75F90-000
CONVERTER,TORQUE
SR412 |
22710-75F90-000 |
— | ||
|
3
|
3
09103-08335-000
Bolt
|
09103-08335-000 |
— | ||
| replacement | |||||
|
3
|
3
09103-08421-000 BOLT(8X9.5) |
09103-08421-000 |
from US $1.28 |
||
|
4
|
4
22611-75F10-000 FLANGE,T/C DRIVE PLATE |
22611-75F10-000 |
US $40.48 |
||
|
5
|
5
22620-75F11-000
プレート,ドライブ
|
22620-75F11-000 |
— | ||
| replacement | |||||
|
5
|
5
22620-75F13-000 PLATE,TC DRIVE |
22620-75F13-000 |
US $125.49 |
||
|
6
|
6
22631-75F10-000 PLATE,TC DRIVE REAR |
22631-75F10-000 |
US $8.76 |
||
|
7
|
7
09103-10282-000 BOLT(10X18.5) |
09103-10282-000 |
from US $2.08 |
||
