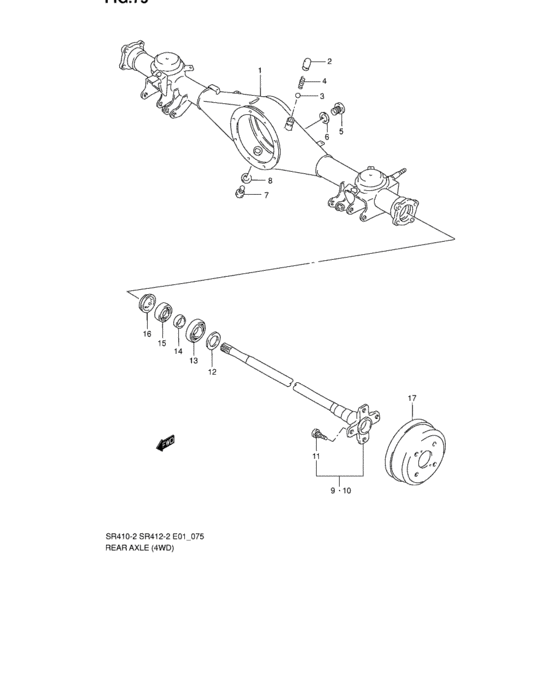

Rear axle (4WD) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 4WD
- transmission
- MT
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46510-75F60-000
HOUSING,RR AXLE
|
46510-75F60-000 |
— | ||
|
2
|
2
46541-52002-000 CAP,BREATHER |
46541-52002-000 |
from US $1.60 |
||
|
3
|
3
46542-52000-000
VALVE,BREATHER
|
46542-52000-000 |
— | ||
| replacement | |||||
|
3
|
3
46542-52001-000 VALVE,RR AXLE HSG BREATHER |
46542-52001-000 |
from US $1.10 |
||
|
4
|
4
09440-12004-000 SPRING |
09440-12004-000 |
from US $1.28 |
||
|
5
|
5
09248-20003-000 PLUG |
09248-20003-000 |
from US $2.81 |
||
|
6
|
6
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) |
09168-20003-000 |
from US $2.28 |
||
|
7
|
7
09247-12003-000 PLUGPlug (12x13) |
09247-12003-000 |
from US $0.68 |
||
|
8
|
8
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
|
9
|
9
44210-75FV0-000
SHAFT ASSY,REAR AXLE,R
|
44210-75FV0-000 |
— | ||
|
10
|
10
44220-75FV0-000
SHAFT ASSY,REAR AXLE,L
|
44220-75FV0-000 |
— | ||
|
11
|
11
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
from US $1.71 |
||
|
12
|
12
44251-76G00-000 SPACER,RR WHEEL BEARING |
44251-76G00-000 |
US $2.88 |
||
|
13
|
13
09262-30103-000 BEARING(30X62X16) |
09262-30103-000 |
from US $26.40 |
||
|
14
|
14
43485-67000-000 RING,RETAINER |
43485-67000-000 |
from US $9.25 |
||
|
15
|
15
43491-70D01-000 SEAL,RR SHAFT OIL |
43491-70D01-000 |
from US $5.09 |
||
|
16
|
16
43588-72000-000 PROTECTOR,OIL SEAL |
43588-72000-000 |
US $1.60 |
||
|
17
|
17
43511-70G20-000 DRUM,BRAKE RR |
43511-70G20-000 |
US $108.19 |
||
