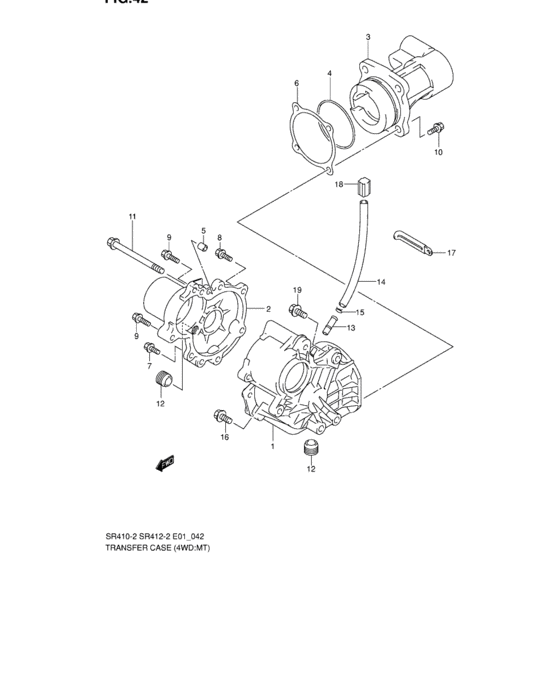

Transfer case (4WD:MT) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 4WD
- transmission
- MT
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29510-75810-000
CASE,T/F,L
|
29510-75810-000 |
— | ||
|
2
|
2
29521-75F91-000 CASE,T/F,R |
29521-75F91-000 |
US $160.08 |
||
|
3
|
3
29271-75F90-000 RETAINER,T/F OUTPUT |
29271-75F90-000 |
US $159.71 |
||
|
4
|
4
09280-76008-000 O RING(D:3.1,ID:74)O ring, rr final housing |
09280-76008-000 |
from US $5.15 |
||
|
5
|
5
04211-09169-000 PIN |
04211-09169-000 |
from US $0.68 |
||
|
6
|
6
29261-75F90-030 SHIM,T/F RETAINER T:0.30 |
29261-75F90-030 |
US $13.62 |
||
|
6
|
6
29261-75F90-200 SHIM,T/F RETAINER T:2.00 |
29261-75F90-200 |
US $16.45 |
||
|
6
|
6
29261-75F90-203 SHIM,T/F RETAINER T:2.03 |
29261-75F90-203 |
US $16.45 |
||
|
6
|
6
29261-75F90-206 SHIM,T/F RETAINER T:2.06 |
29261-75F90-206 |
US $16.45 |
||
|
6
|
6
29261-75F90-209 SHIM,T/F RETAINER T:2.09 |
29261-75F90-209 |
US $16.45 |
||
|
6
|
6
29261-75F90-212 SHIM,T/F RETAINER T:2.12 |
29261-75F90-212 |
US $16.45 |
||
|
6
|
6
29261-75F90-215 SHIM,T/F RETAINER T:2.15 |
29261-75F90-215 |
US $16.45 |
||
|
6
|
6
29261-75F90-218 SHIM,T/F RETAINER T:2.18 |
29261-75F90-218 |
US $21.60 |
||
|
6
|
6
29261-75F90-221 SHIM,T/F RETAINER T:2.21 |
29261-75F90-221 |
US $16.45 |
||
|
6
|
6
29261-75F90-224 SHIM,T/F RETAINER T:2.24 |
29261-75F90-224 |
US $16.45 |
||
|
6
|
6
29261-75F90-227 SHIM,T/F RETAINER T:2.27 |
29261-75F90-227 |
US $16.45 |
||
|
7
|
7
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
7
|
7
01550-0830A-000 BoltBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.06 |
||
|
8
|
8
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
8
|
8
01550-0840A-000 Bolt |
01550-0840A-000 |
from US $1.12 |
||
|
9
|
9
01550-08453-000
Bolt,cylinder h
|
01550-08453-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0845B-000 Bolt |
01550-0845B-000 |
from US $1.06 |
||
|
9
|
9
01550-0845A-000 BoltBolt, oil pump (s) |
01550-0845A-000 |
US $5.03 |
||
|
10
|
10
01550-10353-000
Bolt
|
01550-10353-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1035A-000 BoltBolt, fr fork upper |
01550-1035A-000 |
from US $1.62 |
||
|
11
|
11
09103-10148-000 BOLT(10X110)Bolt (l:110) |
09103-10148-000 |
from US $8.36 |
||
|
12
|
12
09246-16010-000 PLUG |
09246-16010-000 |
US $4.37 |
||
| replacement | |||||
|
12
|
12
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.37 |
||
|
13
|
13
09364-08006-000 UNION |
09364-08006-000 |
from US $3.44 |
||
|
14
|
14
09352-70113-600
HOSE(7X11X600)
L:600->380 |
09352-70113-600 |
— | ||
| replacement | |||||
|
14
|
14
09352-70119-600 Hose(7X11X600)L:600->380 |
09352-70119-600 |
from US $4.96 |
||
|
15
|
15
09401-11403-000 CLIPClip |
09401-11403-000 |
from US $1.60 |
||
|
16
|
16
01550-10353-000
Bolt
|
01550-10353-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-1035A-000 BoltBolt, fr fork upper |
01550-1035A-000 |
from US $1.62 |
||
|
17
|
17
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
17
|
17
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
18
|
18
27991-65D01-000 PLUG,BREATHER |
27991-65D01-000 |
from US $1.92 |
||
|
19
|
19
01550-10603-000
Bolt
|
01550-10603-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-1060B-000 Bolt |
01550-1060B-000 |
US $1.60 |
||
|
19
|
19
01550-1060A-000 Bolt |
01550-1060A-000 |
from US $1.60 |
||
