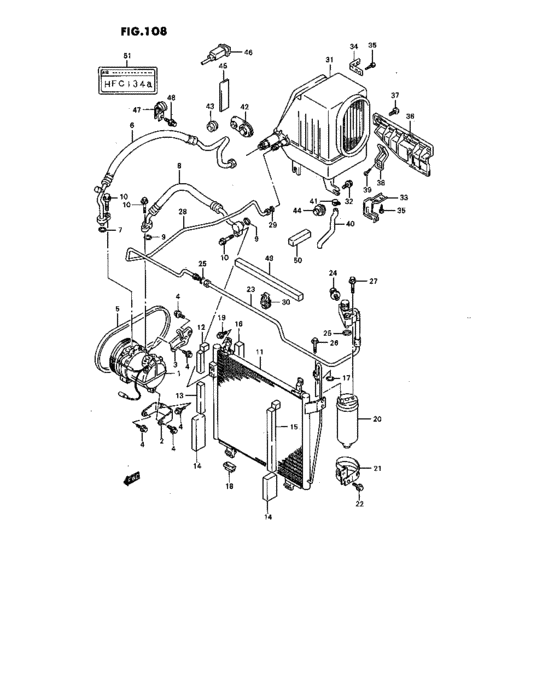

Air conditioner (LHD) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-75F51-000
AIR CONDITIONER SET
|
95000-75F51-000 |
— | ||
|
1
|
1
95200-70C01-000 COMPRESSOR ASSY->95200-70C30,USED WITH 95533-70C00 |
95200-70C01-000 |
US $768.31 |
||
| replacements | |||||
|
1
|
1
95200-70C30-000 COMPRESSOR ASSY->95200-70C30,USED WITH 95533-70C00 |
95200-70C30-000 |
from US $768.31 |
||
|
1
|
1
95533-70C00-000 HARNESS,COMPRESSOR JOINT->95200-70C30,USED WITH 95533-70C00 |
95533-70C00-000 |
from US $11.27 |
||
|
1
|
1
95200-70C30-000 COMPRESSOR ASSYJSAEMA61S00201558~ |
95200-70C30-000 |
from US $768.31 |
||
|
2
|
2
95110-73G01-000 BRACKET,COMPRESSOR |
95110-73G01-000 |
US $13.06 |
||
|
3
|
3
95121-75F00-000 STAY,COMPRESSOR |
95121-75F00-000 |
US $10.49 |
||
|
4
|
4
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
4
|
4
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
5
|
5
95142-80000-000 V-BELT |
95142-80000-000 |
from US $20.48 |
||
| replacement | |||||
|
5
|
5
95141-60D03-000 V-BELT,762 |
95141-60D03-000 |
from US $17.60 |
||
|
6
|
6
95710-75F50-000
Hose, suction
->95710-75F51,USED WITH 01550-06203 |
95710-75F50-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0620B-000 BoltBolt, inspection cap ->95710-75F51,USED WITH 01550-06203 |
01550-0620B-000 |
from US $0.76 |
||
|
6
|
6
95710-75F51-000 HOSE,SUCTION->95710-75F51,USED WITH 01550-06203 |
95710-75F51-000 |
US $150.14 |
||
|
6
|
6
01550-0620A-000 Bolt->95710-75F51,USED WITH 01550-06203 |
01550-0620A-000 |
from US $0.76 |
||
|
6
|
6
01550-06203-000
Bolt
->95710-75F51,USED WITH 01550-06203 |
01550-06203-000 |
— | ||
|
6
|
6
95710-75F51-000 HOSE,SUCTIONJSAEMA61S00206977~ |
95710-75F51-000 |
US $150.14 |
||
|
7
|
7
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
from US $1.28 |
||
|
8
|
8
95720-75F00-000
ホース,ディスチャージ
->95720-75F01,USED WITH 01550-06203(2PCS) |
95720-75F00-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0620B-000 BoltBolt, inspection cap ->95720-75F01,USED WITH 01550-06203(2PCS) |
01550-0620B-000 |
from US $0.76 |
||
|
8
|
8
95720-75F01-000
HOSE,DISCHARGE
->95720-75F01,USED WITH 01550-06203(2PCS) |
95720-75F01-000 |
— | ||
|
8
|
8
01550-0620A-000 Bolt->95720-75F01,USED WITH 01550-06203(2PCS) |
01550-0620A-000 |
from US $0.76 |
||
|
8
|
8
01550-06203-000
Bolt
->95720-75F01,USED WITH 01550-06203(2PCS) |
01550-06203-000 |
— | ||
|
8
|
8
95720-75F01-000
HOSE,DISCHARGE
JSAEMA61S00206977~ |
95720-75F01-000 |
— | ||
|
9
|
9
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
from US $1.28 |
||
|
10
|
10
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0625B-000 BoltBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
10
|
10
01550-0625A-000 BoltBolt |
01550-0625A-000 |
from US $0.96 |
||
|
10
|
10
01550-06203-000
Bolt
JSAEMA61S00206977~ |
01550-06203-000 |
— | ||
|
11
|
11
95310-75F00-000 CONDENSER ASSY |
95310-75F00-000 |
US $390.08 |
||
|
12
|
12
95812-75F00-000
PACKING,CONDENSER R NO.2
|
95812-75F00-000 |
— | ||
|
13
|
13
95813-75F10-000 PACKING,CONDENSER,R |
95813-75F10-000 |
US $2.50 |
||
|
14
|
14
95816-75F10-000 PACKING,CONDENSER |
95816-75F10-000 |
US $2.50 |
||
|
15
|
15
95814-75F10-000
PACKING,CONDENSER,L
|
95814-75F10-000 |
— | ||
|
16
|
16
95815-75F00-000
PACKING,CONDENSER REAR
|
95815-75F00-000 |
— | ||
|
17
|
17
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $1.12 |
||
|
18
|
18
95851-75F00-000 BUSH,COND |
95851-75F00-000 |
US $1.67 |
||
|
19
|
19
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
19
|
19
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
20
|
20
95330-77G00-000 RECEIVER DRYER |
95330-77G00-000 |
from US $35.20 |
||
|
21
|
21
95351-60G40-000 BRACKET,RCVR |
95351-60G40-000 |
from US $7.38 |
||
|
22
|
22
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
22
|
22
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
23
|
23
95731-75F50-000
PIPE,RECEIVER OUTLET NO.1
|
95731-75F50-000 |
— | ||
|
24
|
24
95526-77A00-000 SWITCH,DUAL PRESSURE |
95526-77A00-000 |
US $59.25 |
||
|
25
|
25
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $1.12 |
||
|
26
|
26
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
|
27
|
27
01550-06353-000
Bolt
|
01550-06353-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
27
|
27
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
28
|
28
95732-75F50-000
PIPE,RECEIVER OUTLET NO.2
|
95732-75F50-000 |
— | ||
|
29
|
29
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $1.12 |
||
|
30
|
30
09403-08321-000 CLAMP |
09403-08321-000 |
from US $0.43 |
||
|
31
|
31
95400-75F51-000
COOLING UNIT
|
95400-75F51-000 |
— | ||
|
32
|
32
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
32
|
32
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
33
|
33
95491-75F50-000
BRACKET,COOLING UNIT
|
95491-75F50-000 |
— | ||
|
34
|
34
95492-70B00-000 STAY,UNIT&HEATER NO.1 |
95492-70B00-000 |
US $5.56 |
||
|
35
|
35
03541-05103-000
Screw5 x 10
|
03541-05103-000 |
— | ||
| replacements | |||||
|
35
|
35
03541-0510B-000 SCREW |
03541-0510B-000 |
from US $0.80 |
||
|
35
|
35
03541-0510A-000 SCREWScrew, rr cover |
03541-0510A-000 |
from US $0.68 |
||
|
36
|
36
95841-75F50-000
COVER,CLG UNIT
|
95841-75F50-000 |
— | ||
|
37
|
37
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
37
|
37
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
38
|
38
95842-75F00-000
BRACKET,CLG UNIT COV
|
95842-75F00-000 |
— | ||
|
39
|
39
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
39
|
39
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
40
|
40
09352-90141-600 HOSE(9X14X600)L:600->140 |
09352-90141-600 |
US $26.40 |
||
|
41
|
41
09401-13417-000 CLIP |
09401-13417-000 |
from US $0.79 |
||
|
42
|
42
95833-50E01-000 GROMMET,JOINT PIPE |
95833-50E01-000 |
US $7.95 |
||
|
43
|
43
74812-60B00-000 GROMMET,HTR |
74812-60B00-000 |
US $4.31 |
||
|
44
|
44
74814-82000-000 GROMMET,CAR AIR CON,NO.2 |
74814-82000-000 |
US $6.08 |
||
|
45
|
45
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.51 |
||
|
46
|
46
95521-70G10-000 SWITCH,A/C |
95521-70G10-000 |
US $48.58 |
||
|
47
|
47
95771-50E00-000 CLAMP,SUCTION PIPE |
95771-50E00-000 |
US $6.96 |
||
|
48
|
48
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
48
|
48
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
49
|
49
95811-70B00-000 PACKING,HOOD |
95811-70B00-000 |
US $7.10 |
||
|
50
|
50
95811-75F00-000
PACKING,HOOD
|
95811-75F00-000 |
— | ||
|
51
|
51
95955-72B00-000 LABEL,REFRIGERANT |
95955-72B00-000 |
US $1.60 |
||
