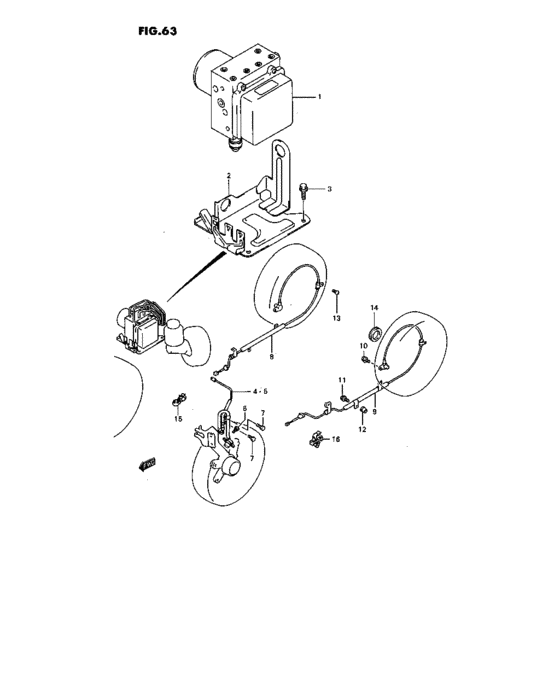

Anti lock brake system (W/ABS) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56100-75F00-000
ACTUATOR ASSY,ABS
|
56100-75F00-000 |
— | ||
|
2
|
2
56160-75F00-000
BRACKET,ACTUATOR
|
56160-75F00-000 |
— | ||
|
3
|
3
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
3
|
3
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
4
|
4
56210-75F00-000
SENSOR,FR WHEEL,R
|
56210-75F00-000 |
— | ||
| replacement | |||||
|
4
|
4
56210-75F01-000 SENSOR,FR WHEEL,R |
56210-75F01-000 |
US $135.79 |
||
|
5
|
5
56220-75F00-000
SENSOR,FR WHEEL,L
|
56220-75F00-000 |
— | ||
| replacement | |||||
|
5
|
5
56220-75F01-000 SENSOR,FR WHEEL,L |
56220-75F01-000 |
US $135.79 |
||
|
6
|
6
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
6
|
6
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
7
|
7
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
8
|
8
56310-75F00-000
SENSOR,RR WHEEL,R
|
56310-75F00-000 |
— | ||
|
9
|
9
56320-75F00-000
SENSOR,RR WHEEL,L
|
56320-75F00-000 |
— | ||
| replacement | |||||
|
9
|
9
56320-75F01-000 SENSOR,RR WHEEL,L |
56320-75F01-000 |
US $169.28 |
||
|
10
|
10
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
10
|
10
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
11
|
11
02162-05163-000
Bolt
|
02162-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0516A-000 SCREW |
02162-0516A-000 |
from US $0.70 |
||
|
12
|
12
09159-05016-000 NUT |
09159-05016-000 |
US $23.20 |
||
|
13
|
13
03241-05083-000
Screw
|
03241-05083-000 |
— | ||
| replacement | |||||
|
13
|
13
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
14
|
14
56451-75F00-000 RING,RR WHEEL SENSOR |
56451-75F00-000 |
US $40.48 |
||
|
15
|
15
34935-60D00-000
CLAMP,HARN NO.1 STRUT
|
34935-60D00-000 |
— | ||
|
16
|
16
09403-05313-000
Clip, band
|
09403-05313-000 |
— | ||
| replacement | |||||
|
16
|
16
18214-75F00-000 CLAMP |
18214-75F00-000 |
from US $1.82 |
||
