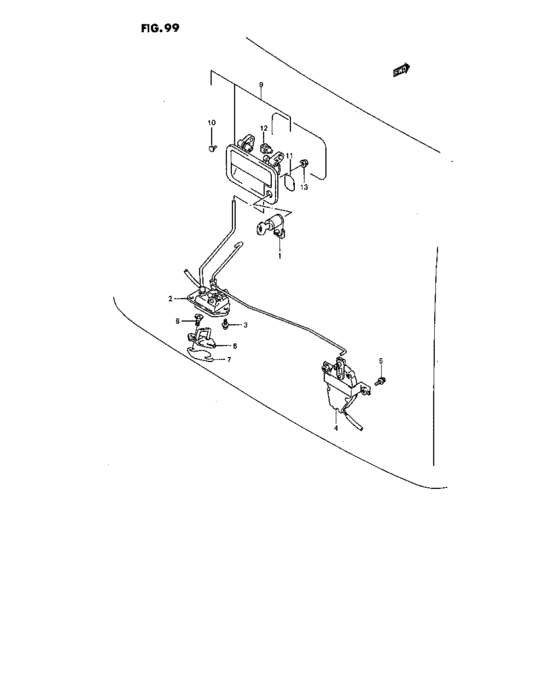

Back door lock (BACK DOOR LOCK) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82500-75820-000
CYLINDER ASSY,BACK DR LOCK
|
82500-75820-000 |
— | ||
|
2
|
2
82501-75F10-000
ラッチアッシ,バックドア
GA |
82501-75F10-000 |
— | ||
| replacement | |||||
|
2
|
2
82501-75F11-000
LATCH ASSY,BACK DR
GA |
82501-75F11-000 |
— | ||
|
2
|
2
82501-75F00-000
ラッチアッシ,バックドア
GL,GLX |
82501-75F00-000 |
— | ||
| replacement | |||||
|
2
|
2
82501-75F01-000 LATCH ASSY,BACK DRGL,GLX |
82501-75F01-000 |
US $106.72 |
||
|
3
|
3
02112-76163-000
Screw
|
02112-76163-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-7616A-000 SCREW |
02112-7616A-000 |
from US $0.96 |
||
|
4
|
4
82550-54FA0-000 ACTUATOR,BACK DR LATCHGL,GLX |
82550-54FA0-000 |
from US $91.04 |
||
|
5
|
5
02112-76163-000
Screw
|
02112-76163-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-7616A-000 SCREW |
02112-7616A-000 |
from US $0.96 |
||
|
6
|
6
82610-60D00-000 STRIKER,DOOR LATCH |
82610-60D00-000 |
from US $9.68 |
||
|
7
|
7
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
from US $0.68 |
||
|
8
|
8
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
8
|
8
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
from US $1.40 |
||
|
8
|
8
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.99 |
||
|
9
|
9
82820-60A10-5PK HANDLE,BACK DR OUT |
82820-60A10-5PK |
US $73.97 |
||
|
9
|
9
82820-60A10-0FT
Handle,back door,out(red)
|
82820-60A10-0FT |
— | ||
| replacement | |||||
|
9
|
9
82820-60A10-5PK HANDLE,BACK DR OUT |
82820-60A10-5PK |
US $73.97 |
||
|
9
|
9
82820-60A10-1VN
HANDLE,BACK DR OUT
|
82820-60A10-1VN |
— | ||
|
9
|
9
82820-60A10-26U
Handle,back door,out(white)
|
82820-60A10-26U |
— | ||
| replacement | |||||
|
9
|
9
82820-60A10-5PK HANDLE,BACK DR OUT |
82820-60A10-5PK |
US $73.97 |
||
|
9
|
9
82820-60A10-Y26
HANDLE,BACK DR OUT
|
82820-60A10-Y26 |
— | ||
|
9
|
9
82820-60A10-Z0L
HANDLE,BACK DR OUT
|
82820-60A10-Z0L |
— | ||
|
9
|
9
82820-60A10-Z2C
HANDLE,BACK DR OUT
|
82820-60A10-Z2C |
— | ||
|
9
|
9
82820-60A10-Z93
Handle,back door,out(blue)
|
82820-60A10-Z93 |
— | ||
| replacement | |||||
|
9
|
9
82820-60A10-5PK HANDLE,BACK DR OUT |
82820-60A10-5PK |
US $73.97 |
||
|
10
|
10
82817-60A00-000 RING,SNAP |
82817-60A00-000 |
from US $1.15 |
||
|
11
|
11
82818-60A00-000 JOINT |
82818-60A00-000 |
from US $2.08 |
||
|
12
|
12
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
