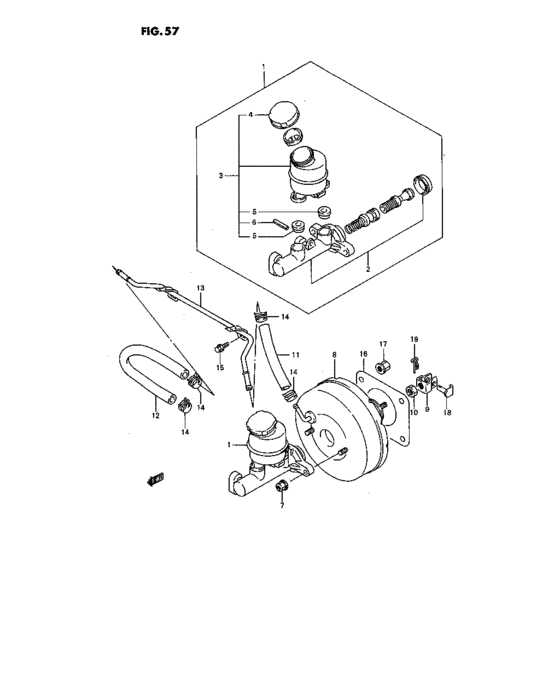

Bk master cylinder (LHD) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-75F50-000
Cylinder assy, brake master
N/ABS |
51100-75F50-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-75F51-000
CYLINDER ASSY,BRAKE MASTER
N/ABS |
51100-75F51-000 |
— | ||
|
1
|
1
51100-75FC0-000 CYLINDER ASSY,BRAKE MASTERW/ABS |
51100-75FC0-000 |
US $242.88 |
||
|
2
|
2
51810-75F50-000
Piston set, brake master
N/ABS |
51810-75F50-000 |
— | ||
| replacement | |||||
|
2
|
2
51810-76F10-000 PISTON SET,BRAKE MASTERN/ABS |
51810-76F10-000 |
US $98.26 |
||
|
2
|
2
51810-75FC0-000
PISTON SET,BRAKE MASTER
W/ABS |
51810-75FC0-000 |
— | ||
|
3
|
3
51200-75F50-000 RESERVOIR ASSY,BRAKE MASTER |
51200-75F50-000 |
US $70.66 |
||
|
4
|
4
51220-75F50-000
CAP SET RESERVOIR
|
51220-75F50-000 |
— | ||
| replacement | |||||
|
4
|
4
51220-77M00-000 CAP,RESERVOIR |
51220-77M00-000 |
from US $20 |
||
|
5
|
5
51232-70F00-000 GROMMET,RSVR CONNECTOR |
51232-70F00-000 |
from US $3.56 |
||
|
6
|
6
51240-75F50-000 PIN |
51240-75F50-000 |
US $4.38 |
||
|
7
|
7
08361-15083-000
Nut
|
08361-15083-000 |
— | ||
| replacement | |||||
|
7
|
7
08361-1508A-000 NUT |
08361-1508A-000 |
from US $3.20 |
||
|
8
|
8
51300-75F50-000
BOOSTER ASSY,BRAKE MASTER
N/ABS |
51300-75F50-000 |
— | ||
|
8
|
8
51300-75FC0-000
Booster assy, brake master
W/ABS |
51300-75FC0-000 |
— | ||
| replacement | |||||
|
8
|
8
51300-75F50-000
BOOSTER ASSY,BRAKE MASTER
W/ABS |
51300-75F50-000 |
— | ||
|
9
|
9
51182-70B20-000 CLEVIS,CYLINDER PUSH ROD |
51182-70B20-000 |
US $13.58 |
||
|
10
|
10
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
10
|
10
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
11
|
11
51021-75F00-000
HOSE,VACUUM BSTR TO PIPE
|
51021-75F00-000 |
— | ||
|
12
|
12
51030-75F01-000
HOSE,VACUUM PIPE TO INTK
|
51030-75F01-000 |
— | ||
|
13
|
13
51050-75F00-000
PIPE,BRAKE VACUUM
|
51050-75F00-000 |
— | ||
|
14
|
14
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.33 |
||
|
15
|
15
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
16
|
16
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
from US $1.60 |
||
|
17
|
17
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
17
|
17
09159-08135-000 NUT |
09159-08135-000 |
from US $0.74 |
||
|
18
|
18
09200-08069-000 PIN |
09200-08069-000 |
from US $1.37 |
||
|
19
|
19
09385-08007-000 PIN,SNAPClip |
09385-08007-000 |
from US $1.09 |
||
