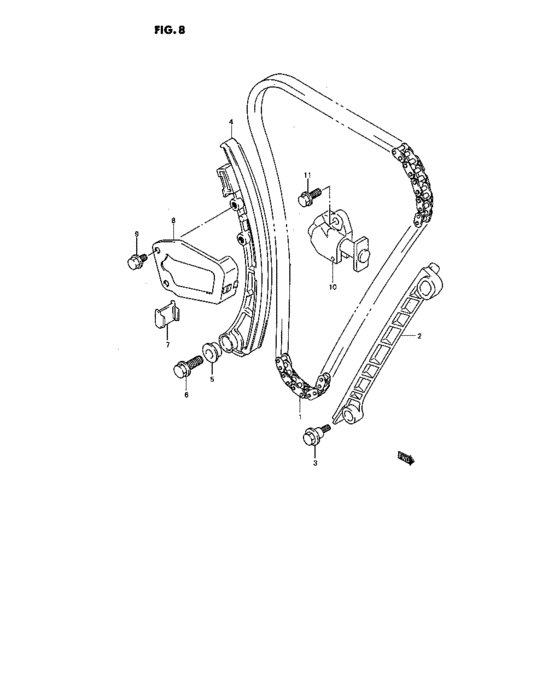

Cam chain (CAM CHAIN) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12761-73G00-000
Chain, timing
|
12761-73G00-000 |
— | ||
| replacement | |||||
|
1
|
1
12761-73G01-000 CHAIN,TIMING |
12761-73G01-000 |
from US $76.76 |
||
|
2
|
2
12771-73G00-000 GUIDE,TIMING CHAIN NO.1 |
12771-73G00-000 |
from US $26.60 |
||
|
3
|
3
12776-85FA0-000 BOLT,TIMING CHAIN GUIDEBolt, timing chain guide |
12776-85FA0-000 |
from US $3.04 |
||
|
4
|
4
12811-73G01-000
Tensioner, chain
|
12811-73G01-000 |
— | ||
| replacements | |||||
|
4
|
4
12811-58J00-000 Tensioner, Timing Chain |
12811-58J00-000 |
from US $81.83 |
||
|
4
|
4
12821-58J10-000 LINK,TENSIONER |
12821-58J10-000 |
from US $7.92 |
||
|
5
|
5
12812-73G10-000 SPACER,TIMING CHAIN TENSIONERSpacer, timing chain tensioner |
12812-73G10-000 |
from US $4.48 |
||
|
6
|
6
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0825B-000 Bolt |
01550-0825B-000 |
from US $1.06 |
||
|
6
|
6
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
7
|
7
12813-73G00-000 PAD,TIMING CHAIN TENSIONERPad, timing chain tensioner |
12813-73G00-000 |
from US $2.72 |
||
|
8
|
8
12821-73G00-000
リンク,タイミングチェーンテンショナ
|
12821-73G00-000 |
— | ||
| replacement | |||||
|
8
|
8
12821-78G00-000 LINK,TIMING CHAIN TENSIONER |
12821-78G00-000 |
US $33.60 |
||
|
9
|
9
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
9
|
9
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
12831-73G01-000
Adjuster assy, tensioner
|
12831-73G01-000 |
— | ||
|
11
|
11
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
