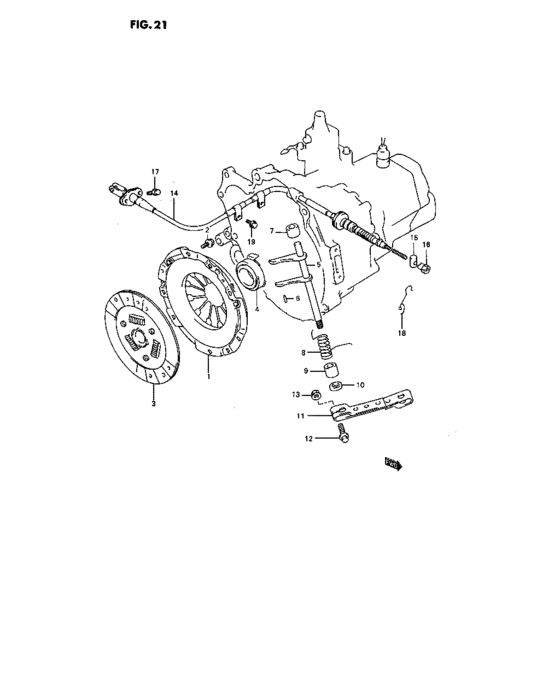

Clutch (CLUTCH) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-75F00-000
Cover assy,clutch
|
22100-75F00-000 |
— | ||
| replacement | |||||
|
1
|
1
22100-75F01-000 COVER ASSY,CLUTCH |
22100-75F01-000 |
from US $96.08 |
||
|
2
|
2
09117-08096-000 BOLT(8X16) |
09117-08096-000 |
from US $1.44 |
||
|
3
|
3
22400-75F00-000
ディスク,クラッチ
|
22400-75F00-000 |
— | ||
| replacement | |||||
|
3
|
3
22400-75F01-000 DISC,CLUTCH |
22400-75F01-000 |
US $92 |
||
|
4
|
4
09269-28004-000 BEARING(28X58X22) |
09269-28004-000 |
from US $50.92 |
||
|
5
|
5
23260-73B00-000
シャフト,クラッチレリーズ
|
23260-73B00-000 |
— | ||
| replacement | |||||
|
5
|
5
23260-73B21-000 SHAFT,CLUTCH RELEASE |
23260-73B21-000 |
US $43.79 |
||
|
5
|
5
23260-73B01-000
シャフト,クラッチレリーズ
JSAEMA61S00117128~ |
23260-73B01-000 |
— | ||
| replacement | |||||
|
5
|
5
23260-73B21-000 SHAFT,CLUTCH RELEASEJSAEMA61S00117128~ |
23260-73B21-000 |
US $43.79 |
||
|
6
|
6
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock |
09205-03019-000 |
from US $0.81 |
||
|
7
|
7
09300-14016-000 BUSH(14X18X20) |
09300-14016-000 |
US $2.24 |
||
|
8
|
8
23269-73B00-000 SPRING,RELEASE SHAFT RETURN |
23269-73B00-000 |
US $3.09 |
||
|
9
|
9
09300-14017-000 BUSH(14X22X15) |
09300-14017-000 |
from US $2.13 |
||
|
10
|
10
09283-14006-000 SEAL,OIL(14X22X6) |
09283-14006-000 |
from US $3.87 |
||
|
11
|
11
23266-75F00-000 ARM,CLUTCH RELEASE |
23266-75F00-000 |
US $50.42 |
||
|
12
|
12
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
12
|
12
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
13
|
13
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
14
|
14
23710-75F20-000
Cable assy, clutch
LHD |
23710-75F20-000 |
— | ||
| replacement | |||||
|
14
|
14
23710-75F21-000 CABLE ASSY,CLUTCHLHD |
23710-75F21-000 |
US $48.58 |
||
|
14
|
14
23710-75F00-000
ケーブルアッシ,クラッチ
RHD |
23710-75F00-000 |
— | ||
| replacement | |||||
|
14
|
14
23710-75F01-000 CABLE ASSY,CLUTCHRHD |
23710-75F01-000 |
US $55.94 |
||
|
15
|
15
09209-13018-000 PIN(13X18) |
09209-13018-000 |
from US $1.26 |
||
|
16
|
16
09150-06014-000
Nut
|
09150-06014-000 |
— | ||
| replacement | |||||
|
16
|
16
09150-06010-000 NUT |
09150-06010-000 |
from US $1.82 |
||
|
17
|
17
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
17
|
17
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
18
|
18
23915-73B01-000
クランプ,クラッチケーブル
|
23915-73B01-000 |
— | ||
| replacement | |||||
|
18
|
18
23915-73B02-000 CLAMP,CLUTCH CABLE |
23915-73B02-000 |
US $3.72 |
||
|
19
|
19
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
19
|
19
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
