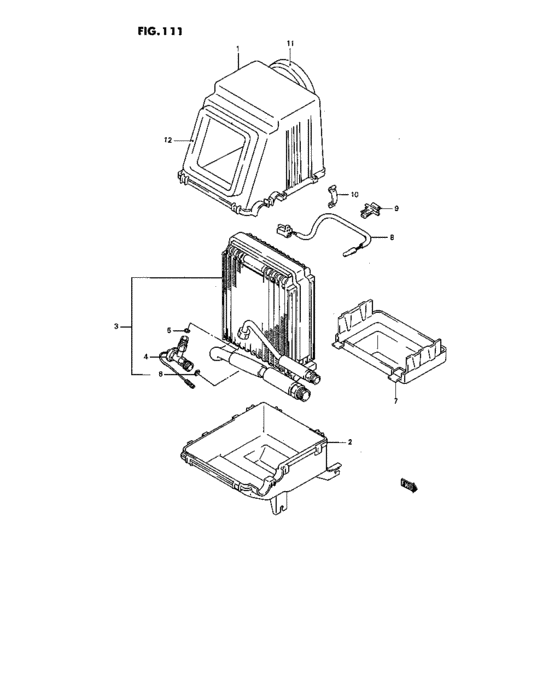

Cooling unit (LHD) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95400-75F51-000
COOLING UNIT
|
95400-75F51-000 |
— | ||
|
1
|
1
95421-78B00-000
CASE,EVAP,UPPER
|
95421-78B00-000 |
— | ||
|
2
|
2
95422-78B00-000
CASE,EVAP,LOWER
|
95422-78B00-000 |
— | ||
|
3
|
3
95410-75F50-000
CORE,EVAP
|
95410-75F50-000 |
— | ||
|
4
|
4
95431-72B00-000
Valve,expansion
|
95431-72B00-000 |
— | ||
| replacement | |||||
|
4
|
4
95431-72B20-000 VALVE,EXPANSION |
95431-72B20-000 |
US $100.46 |
||
|
5
|
5
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $1.12 |
||
|
6
|
6
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
from US $1.28 |
||
|
7
|
7
95465-78B01-000
PACKING,CORE LOWER
|
95465-78B01-000 |
— | ||
|
8
|
8
95541-60B50-000 THERMISTOR,EVAP |
95541-60B50-000 |
from US $28.31 |
||
|
9
|
9
95452-70B21-000 CLAMP,THERMISTER |
95452-70B21-000 |
US $2.25 |
||
|
10
|
10
74316-85500-000 CLAMPClamp, case |
74316-85500-000 |
from US $0.95 |
||
|
11
|
11
95461-70B01-000 PACKING,HEATERPacking, unit outlet |
95461-70B01-000 |
US $4.80 |
||
|
12
|
12
95462-70B01-000 PACKING,AIR DAMPER |
95462-70B01-000 |
US $8.21 |
||
