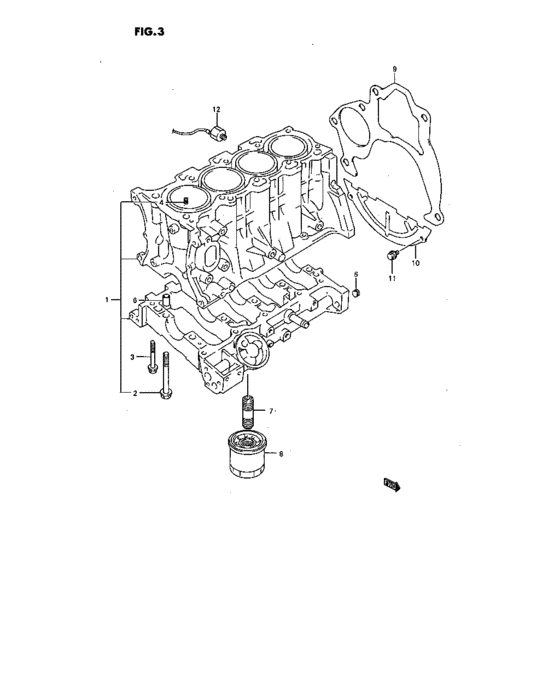

Cylinder (CYLINDER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-75F00-000
ブロックアッシ,シリンダ
|
11200-75F00-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-75F01-000
BLOCK ASSY,CYLINDER
|
11200-75F01-000 |
— | ||
|
2
|
2
11117-73G00-000 BOLT,CYLINDER HEAD |
11117-73G00-000 |
from US $4.80 |
||
|
3
|
3
11261-73G00-000
Bolt
|
11261-73G00-000 |
— | ||
| replacement | |||||
|
3
|
3
11261-73G01-000 BOLT,8X59 |
11261-73G01-000 |
from US $14.63 |
||
|
4
|
4
11112-73002-000
Plug, oil venturi
|
11112-73002-000 |
— | ||
| replacement | |||||
|
4
|
4
11112-73010-000 PLUG,OIL VENTURI |
11112-73010-000 |
from US $1.60 |
||
|
5
|
5
09246-05006-000 PLUG(1/8PT,H:5.5) |
09246-05006-000 |
from US $1.76 |
||
|
6
|
6
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
7
|
7
11241-73003-000 STAND,OIL FILTER |
11241-73003-000 |
from US $5.24 |
||
|
8
|
8
16510-82703-000 FILTER ASSY,OIL TOKYO ROKIFilter, oil |
16510-82703-000 |
from US $14.38 |
||
|
9
|
9
11311-60D13-000
Plate, clutch housing upper
|
11311-60D13-000 |
— | ||
| replacement | |||||
|
9
|
9
11311-60D14-000 PLATE,CLUTCH HSG UPPER |
11311-60D14-000 |
US $6.62 |
||
|
10
|
10
11321-70B04-000
Plate, clutch housing lower
|
11321-70B04-000 |
— | ||
| replacement | |||||
|
10
|
10
11320-78G00-000 PLATE,CLUTCH HSG LOWER |
11320-78G00-000 |
US $9.72 |
||
|
11
|
11
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
12
|
12
18640-73G00-000 SENSOR ASSY,KNOCK |
18640-73G00-000 |
US $337.60 |
||
