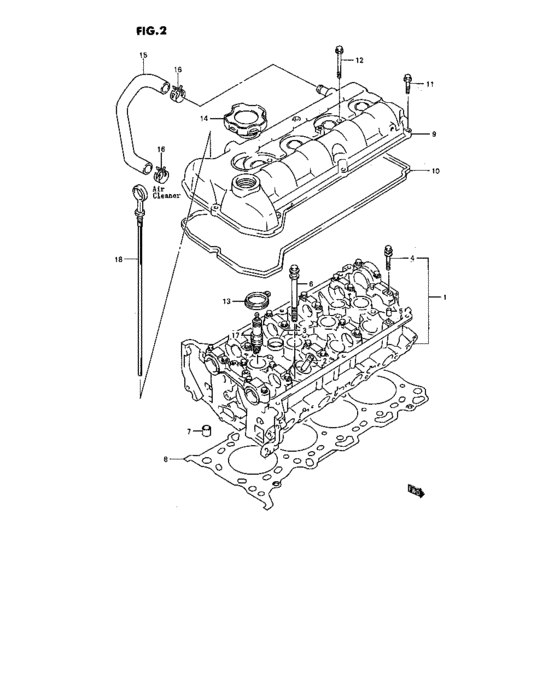

Cylinder head (CYLINDER HEAD) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-75F00-000
ヘッドアッシ,シリンダ
|
11100-75F00-000 |
— | ||
| replacements | |||||
|
1
|
1
11100-75F03-000
HEAD ASSY,CYLINDER
|
11100-75F03-000 |
— | ||
|
1
|
1
12921-78G30-000 SPRING,VALVE |
12921-78G30-000 |
US $10.40 |
||
|
2
|
2
11115-73G00-001
Guide, valve
|
11115-73G00-001 |
— | ||
| replacement | |||||
|
2
|
2
11115-73G01-001 GUIDE,VALVE |
11115-73G01-001 |
from US $13.38 |
||
|
3
|
3
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.60 |
||
|
4
|
4
11128-73G60-000 BOLT,CAMSHAFT HOUSING 6X36 |
11128-73G60-000 |
US $1.52 |
||
|
5
|
5
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.53 |
||
|
6
|
6
11117-73G00-000 BOLT,CYLINDER HEAD |
11117-73G00-000 |
from US $4.80 |
||
|
7
|
7
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
8
|
8
11141-75F10-000 GASKET,CYL HEAD |
11141-75F10-000 |
from US $77.31 |
||
|
9
|
9
11170-75F02-000
カバー,シリンダヘッド
->11170-75F03,USED WITH 11189-75F01 |
11170-75F02-000 |
— | ||
| replacements | |||||
|
9
|
9
11170-75F03-000 Cover,cylinder head->11170-75F03,USED WITH 11189-75F01 |
11170-75F03-000 |
US $237.36 |
||
|
9
|
9
11189-75F01-000 GASKET,CYL HEAD COVER->11170-75F03,USED WITH 11189-75F01 |
11189-75F01-000 |
from US $22.93 |
||
|
10
|
10
11189-75F01-000 GASKET,CYL HEAD COVER |
11189-75F01-000 |
from US $22.93 |
||
|
11
|
11
11178-71C00-000 Bolt |
11178-71C00-000 |
US $1.31 |
||
| replacement | |||||
|
11
|
11
11178-71C10-000 BOLT,CYLINDER HEAD COVER |
11178-71C10-000 |
from US $1.31 |
||
|
11
|
11
01550-06253-000
Bolt (6x25)
JSAEMA61S00109020~ |
01550-06253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0625B-000 BoltBolt, head cover JSAEMA61S00109020~ |
01550-0625B-000 |
from US $0.91 |
||
|
11
|
11
01550-0625A-000 BoltBolt JSAEMA61S00109020~ |
01550-0625A-000 |
from US $0.96 |
||
|
12
|
12
01547-06553-000
Bolt
|
01547-06553-000 |
— | ||
| replacement | |||||
|
12
|
12
01547-0655B-000 Bolt |
01547-0655B-000 |
from US $1.91 |
||
|
13
|
13
11179-73G00-000 GASKET,SPARK PLUG HOLEGasket, spark plug hole |
11179-73G00-000 |
from US $10.94 |
||
|
14
|
14
16920-86502-000
Cap, oil filler
|
16920-86502-000 |
— | ||
| replacements | |||||
|
14
|
14
16920-83G00-000
Cap,oil filler
|
16920-83G00-000 |
— | ||
|
14
|
14
16920-83G01-000 CAP OIL FILLER |
16920-83G01-000 |
US $10.22 |
||
|
15
|
15
11191-75F00-000 HOSE,BREATHER |
11191-75F00-000 |
US $15.16 |
||
|
16
|
16
09401-18404-000 CLIP |
09401-18404-000 |
from US $1.17 |
||
|
17
|
17
09482-00448-000 PLUG,SPARK(NGK DCPR7E) |
09482-00448-000 |
from US $7.85 |
||
|
18
|
18
16910-75F00-000 GAUGE,OIL LEVEL |
16910-75F00-000 |
US $31.17 |
||
|
19
|
19
11180-75F01-000 COVER,CYL HEAD UPPERJSAEMA61S00101204~ |
11180-75F01-000 |
US $18.58 |
||
|
20
|
20
01547-06163-000
Bolt (green)
JSAEMA61S00101204~ |
01547-06163-000 |
— | ||
| replacement | |||||
|
20
|
20
01547-0616B-000 BoltJSAEMA61S00101204~ |
01547-0616B-000 |
from US $0.76 |
||
