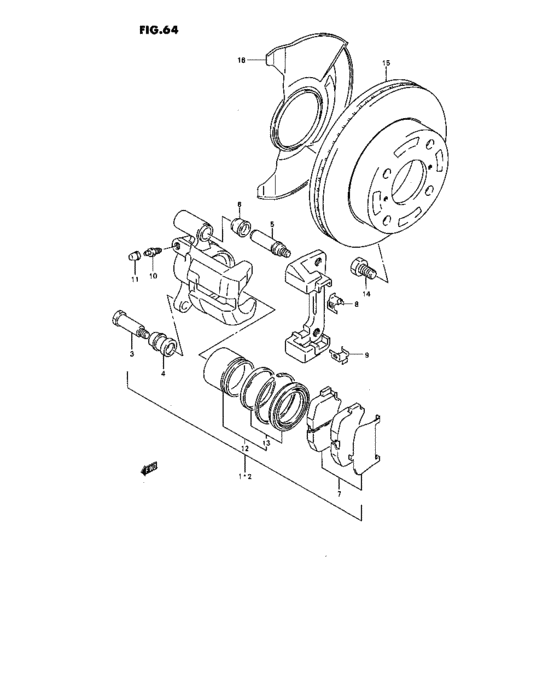

Front brake (FRONT BRAKE) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-75F10-000
キャリパアッシ,フロントブレーキ,ライト
|
55101-75F10-000 |
— | ||
| replacements | |||||
|
1
|
1
55810-75F32-000 PAD SET,DISC BRAKE |
55810-75F32-000 |
US $125.60 |
||
|
1
|
1
55101-75F12-999
CALIPER,FR BRAKE,R
|
55101-75F12-999 |
— | ||
|
1
|
1
55101-75F13-999 Caliper,fr Brake,r |
55101-75F13-999 |
US $316.48 |
||
|
2
|
2
55102-75F10-000
キャリパアッシ,フロントブレーキ,レフト
|
55102-75F10-000 |
— | ||
| replacements | |||||
|
2
|
2
55810-75F32-000 PAD SET,DISC BRAKE |
55810-75F32-000 |
US $125.60 |
||
|
2
|
2
55102-75F12-999
CALIPER,FR BRAKE,L
|
55102-75F12-999 |
— | ||
|
2
|
2
55102-75F13-999 Caliper,fr Brake,l |
55102-75F13-999 |
US $316.48 |
||
|
3
|
3
55191-75F00-000 PIN,CYLINDER SLIDE NO.1 |
55191-75F00-000 |
from US $12.17 |
||
|
4
|
4
55193-75F00-000 BUSH,PIN SLIDE |
55193-75F00-000 |
from US $10.01 |
||
|
5
|
5
55192-75F00-000 PIN,CYLINDER SLIDE NO.2 |
55192-75F00-000 |
from US $9.14 |
||
|
6
|
6
55201-75F00-000 BOOT,PIN |
55201-75F00-000 |
from US $5.67 |
||
|
7
|
7
55810-75F10-000
パッドセット,ディスクブレーキ
|
55810-75F10-000 |
— | ||
| replacement | |||||
|
7
|
7
55810-75F32-000 PAD SET,DISC BRAKE |
55810-75F32-000 |
US $125.60 |
||
|
8
|
8
55234-75F00-000 PLATE,PAD SUPPORT NO.1 |
55234-75F00-000 |
from US $7.25 |
||
|
9
|
9
55235-75F00-000 PLATE,PAD SUPPORT NO.2 |
55235-75F00-000 |
from US $7.25 |
||
|
10
|
10
55473-82030-000
Plug, bleeder
|
55473-82030-000 |
— | ||
| replacement | |||||
|
10
|
10
55151-78451-000 PLUG,BLEEDER |
55151-78451-000 |
from US $4.32 |
||
|
11
|
11
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
12
|
12
55830-60C10-000
Piston/seal set
|
55830-60C10-000 |
— | ||
| replacements | |||||
|
12
|
12
55830-60C12-000
PISTON / SEAL SET
|
55830-60C12-000 |
— | ||
|
12
|
12
55830-60C13-000
Piston / Seal Set
|
55830-60C13-000 |
— | ||
|
13
|
13
55100-82820-000
Seal set,piston
|
55100-82820-000 |
— | ||
| replacements | |||||
|
13
|
13
55100-82822-000
SEAL SET,PISTON
|
55100-82822-000 |
— | ||
|
13
|
13
55100-82823-000 Seal Set,piston |
55100-82823-000 |
US $10.10 |
||
|
13
|
13
55100-82824-000 Seal Set,Piston |
55100-82824-000 |
from US $8 |
||
|
14
|
14
09117-12006-000 BOLT(12X27) |
09117-12006-000 |
from US $1.51 |
||
|
15
|
15
55311-75F00-000
ディスク,フロントブレーキ
|
55311-75F00-000 |
— | ||
| replacement | |||||
|
15
|
15
55311-75F11-000 DISC,FR BRAKE |
55311-75F11-000 |
US $136.80 |
||
|
16
|
16
55321-60B20-000 COVER,BRAKE DISC DUST |
55321-60B20-000 |
US $24.84 |
||
