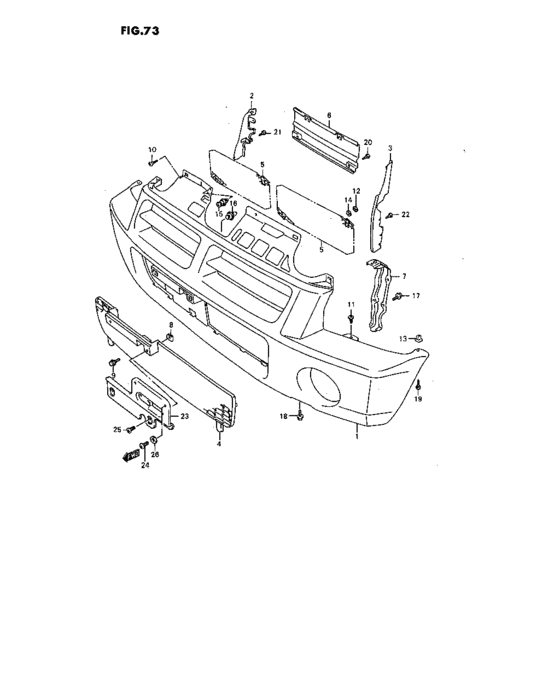

Front bumper (FRONT BUMPER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-75F00-5PK
BUMPER,FR(BLACK)
GA:,Belgium |
71711-75F00-5PK |
— | ||
|
1
|
1
71711-75F00-799 BUMPER,FR(PRIMARY)GA:Australia,GL,GLX,PAINT TO MATCH |
71711-75F00-799 |
US $464.64 |
||
|
2
|
2
71712-75F00-000 EXTENSION,FR BUMPER,R |
71712-75F00-000 |
US $6.84 |
||
|
3
|
3
71713-75F00-000 EXTENSION,FR BUMPER,L |
71713-75F00-000 |
US $84.64 |
||
|
4
|
4
71717-75F01-5PK
NET,FR BUMPER
|
71717-75F01-5PK |
— | ||
|
5
|
5
71718-75F00-000 NET,FR BUMPER UPR |
71718-75F00-000 |
US $28.15 |
||
|
6
|
6
71721-75F01-000 PANEL,HEAT INSULATOR |
71721-75F01-000 |
US $14.28 |
||
|
7
|
7
71731-74F01-000 STAY,FRONT BUMPER |
71731-74F01-000 |
US $34.40 |
||
|
8
|
8
71812-82010-000
Nut
|
71812-82010-000 |
— | ||
| replacement | |||||
|
8
|
8
09148-06021-000 NUTNut, air cleaner |
09148-06021-000 |
from US $1.34 |
||
|
9
|
9
09111-06061-000
Bolt,6x16.5
|
09111-06061-000 |
— | ||
| replacement | |||||
|
9
|
9
09111-06094-000 BOLT(6X16.5) |
09111-06094-000 |
from US $0.74 |
||
|
10
|
10
09139-05056-000 SCREW(5X15.5) |
09139-05056-000 |
US $1.22 |
||
|
11
|
11
09139-06072-000 SCREW(6X16) |
09139-06072-000 |
from US $1.28 |
||
|
12
|
12
09148-04010-000 NUTEcrou |
09148-04010-000 |
from US $0.54 |
||
|
13
|
13
09148-05018-000 NUT |
09148-05018-000 |
from US $0.63 |
||
|
14
|
14
09161-04008-000 WASHER(4X12X2) |
09161-04008-000 |
from US $0.36 |
||
|
15
|
15
09409-06322-5PK CLIP(BLACK)Clip (black) |
09409-06322-5PK |
from US $1.71 |
||
|
16
|
16
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
17
|
17
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
17
|
17
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
18
|
18
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
18
|
18
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
19
|
19
03242-05163-000
Screw
|
03242-05163-000 |
— | ||
| replacement | |||||
|
19
|
19
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
20
|
20
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
20
|
20
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
21
|
21
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
21
|
21
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
22
|
22
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
22
|
22
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
23
|
23
71741-75F00-000
Bracket, license plate
|
71741-75F00-000 |
— | ||
| replacement | |||||
|
23
|
23
71741-75F01-000
Bracket,license plate
|
71741-75F01-000 |
— | ||
|
24
|
24
02142-06083-000
Screw airspoile
|
02142-06083-000 |
— | ||
| replacement | |||||
|
24
|
24
02142-0608A-000 SCREW |
02142-0608A-000 |
from US $0.70 |
||
|
25
|
25
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
25
|
25
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
26
|
26
09160-06079-000 WASHER(6.5X16X1.2) |
09160-06079-000 |
from US $1.12 |
||
| replacement | |||||
|
26
|
26
09160-06052-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06052-000 |
from US $1.44 |
||
