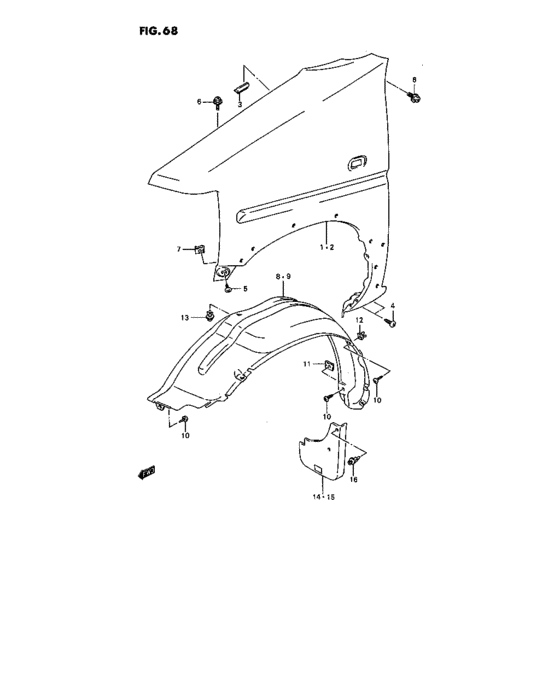

Front fender (FRONT FENDER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57611-75F21-000
Panel, front fender rh
GA,GL |
57611-75F21-000 |
— | ||
| replacement | |||||
|
1
|
1
57611-75FV1-X06 PANEL,FR FENDER,RGA,GL |
57611-75FV1-X06 |
US $202.40 |
||
|
1
|
1
57611-75F31-000
Panel, front fender rh
GLX |
57611-75F31-000 |
— | ||
| replacement | |||||
|
1
|
1
57611-75FV1-X06 PANEL,FR FENDER,RGLX |
57611-75FV1-X06 |
US $202.40 |
||
|
2
|
2
57711-75F21-000
Panel, front fender lh
GA,GL |
57711-75F21-000 |
— | ||
| replacement | |||||
|
2
|
2
57711-75FV1-X06 PANEL,FR FENDER,LGA,GL |
57711-75FV1-X06 |
US $202.40 |
||
|
2
|
2
57711-75F31-000
Panel, front fender lh
GLX |
57711-75F31-000 |
— | ||
| replacement | |||||
|
2
|
2
57711-75FV1-X06 PANEL,FR FENDER,LGLX |
57711-75FV1-X06 |
US $202.40 |
||
|
3
|
3
57612-74F00-000 CLIP |
57612-74F00-000 |
US $3.90 |
||
|
4
|
4
03241-05083-000
Screw
|
03241-05083-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
5
|
5
03241-05083-000
Screw
|
03241-05083-000 |
— | ||
| replacement | |||||
|
5
|
5
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
6
|
6
09128-06073-000 SCREW(6X10) |
09128-06073-000 |
US $1.22 |
||
|
7
|
7
09148-05003-000 NUT |
09148-05003-000 |
from US $0.70 |
||
|
8
|
8
72321-74F00-000 LINING,FR FENDER,R |
72321-74F00-000 |
US $45.26 |
||
|
9
|
9
72322-74F00-000 LINING,FR FENDER,L |
72322-74F00-000 |
US $45.26 |
||
|
10
|
10
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
11
|
11
09148-05003-000 NUT |
09148-05003-000 |
from US $0.70 |
||
|
12
|
12
09148-05018-000 NUT |
09148-05018-000 |
from US $0.61 |
||
|
13
|
13
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $1.40 |
||
|
14
|
14
72211-74F00-5PK
FLAP,MUD FR,R
GA,GL |
72211-74F00-5PK |
— | ||
|
15
|
15
72216-74F00-5PK
FLAP,MUD FR,L
GA,GL |
72216-74F00-5PK |
— | ||
|
16
|
16
09409-08313-5PK CLIP(BLACK)GA,GL |
09409-08313-5PK |
from US $1.92 |
||
