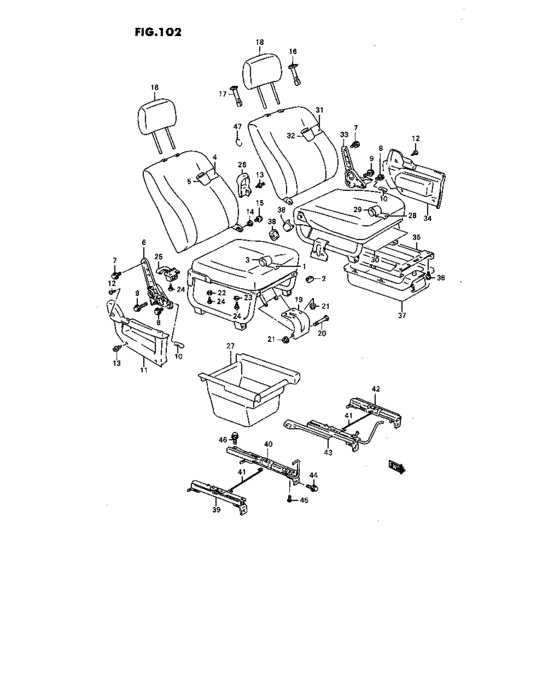

Front seat (LHD) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-75F60-000
CUSHION SUB ASSY,FR,R
GA |
85105-75F60-000 |
— | ||
|
1
|
1
85105-75F50-000
Cushion sub assy,fr,r
GL,GLX |
85105-75F50-000 |
— | ||
|
2
|
2
87199-55F00-000
PROTECTOR,SEAT CUSHION
GA |
87199-55F00-000 |
— | ||
|
3
|
3
85680-75F01-J0G
TRIM,FR CUSHION,L
|
85680-75F01-J0G |
— | ||
|
4
|
4
85305-75F50-000
Back sub assy,fr,r
|
85305-75F50-000 |
— | ||
|
5
|
5
85380-75F10-J0G
TRIM,FR BACK,R
|
85380-75F10-J0G |
— | ||
|
6
|
6
85210-75F00-000 RECLINING ASSY,FR SEAT,R |
85210-75F00-000 |
US $144.62 |
||
|
7
|
7
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
7
|
7
01570-0816A-000 Bolt |
01570-0816A-000 |
from US $1.12 |
||
|
8
|
8
01570-10163-000
ボルト
|
01570-10163-000 |
— | ||
| replacement | |||||
|
8
|
8
01570-1016A-000 Bolt |
01570-1016A-000 |
US $17.30 |
||
|
9
|
9
01570-10403-000
Bolt, upper
|
01570-10403-000 |
— | ||
| replacement | |||||
|
9
|
9
01570-1040A-000 Bolt |
01570-1040A-000 |
US $1.06 |
||
|
10
|
10
85211-82000-T01 KNOB,RECL |
85211-82000-T01 |
US $4.05 |
||
|
11
|
11
85221-75F00-T01 COVER,RECLINING,R |
85221-75F00-T01 |
US $75.20 |
||
|
12
|
12
03241-05083-000
Screw
|
03241-05083-000 |
— | ||
| replacement | |||||
|
12
|
12
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
13
|
13
09409-05305-T01
クリップ(グレー)
|
09409-05305-T01 |
— | ||
| replacement | |||||
|
13
|
13
09409-05302-4MM CLIP(GRAY) |
09409-05302-4MM |
US $2.11 |
||
|
14
|
14
85291-80290-000 BUSH,SEAT BACK FIXING |
85291-80290-000 |
from US $0.41 |
||
|
15
|
15
09136-06004-000 SCREW(6X12) |
09136-06004-000 |
from US $0.56 |
||
|
16
|
16
85341-72C10-5PK GUIDE,HEADRESTRAINT,R |
85341-72C10-5PK |
from US $3.38 |
||
|
17
|
17
85840-72C10-5PK GUIDE,HEADRESTRAINT,L |
85840-72C10-5PK |
from US $9.43 |
||
|
18
|
18
86401-75F50-T92
Headrestraint assy
|
86401-75F50-T92 |
— | ||
| replacement | |||||
|
18
|
18
86401-75F51-T92
HEADRESTRAINT ASSY
|
86401-75F51-T92 |
— | ||
|
19
|
19
85961-75F50-000
MALE,FR CUSH BOARD HNG
|
85961-75F50-000 |
— | ||
|
20
|
20
85962-74F00-000
PIN,FRONT SEAT CUSHION HINGE
|
85962-74F00-000 |
— | ||
|
21
|
21
08313-20063-000
Nut
|
08313-20063-000 |
— | ||
| replacements | |||||
|
21
|
21
08313-2006B-000 NUT |
08313-2006B-000 |
from US $0.76 |
||
|
21
|
21
08313-2006A-000 NUT |
08313-2006A-000 |
from US $1.24 |
||
|
22
|
22
85291-75F00-000
CUSHION,FR CUSHION BOARD
|
85291-75F00-000 |
— | ||
|
23
|
23
87196-83000-000 CUSHION |
87196-83000-000 |
US $3.09 |
||
|
24
|
24
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
24
|
24
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
25
|
25
85970-75F00-000 LOCK,FR CUSH |
85970-75F00-000 |
US $45.60 |
||
|
26
|
26
85131-75F50-T01
PROTECTOR,FR CUSH FRAME
|
85131-75F50-T01 |
— | ||
|
27
|
27
85190-75F00-000
Box assy,fr cushion under
GL,GLX |
85190-75F00-000 |
— | ||
|
28
|
28
85106-75F50-000
Cushion sub assy, lh
|
85106-75F50-000 |
— | ||
| replacement | |||||
|
28
|
28
85106-75F51-000
CUSHION SUB ASSY,FR,L
|
85106-75F51-000 |
— | ||
|
29
|
29
85680-75F50-J0G
TRIM,FR CUSHION,L
|
85680-75F50-J0G |
— | ||
|
30
|
30
85141-74F00-000
SILENCER,FR CUSHION
|
85141-74F00-000 |
— | ||
|
31
|
31
85306-75F50-000
Back sub assy,fr,l
|
85306-75F50-000 |
— | ||
|
32
|
32
85380-75F00-J0G
TRIM,FR BACK,L
|
85380-75F00-J0G |
— | ||
|
33
|
33
85710-75F00-000
RECLINING ASSY,FR SEAT,L
|
85710-75F00-000 |
— | ||
|
34
|
34
85721-74F00-T01
COVER,RECL,L
|
85721-74F00-T01 |
— | ||
|
35
|
35
85120-75F00-000
ブラケット,シートアンダトレー
GL,GLX |
85120-75F00-000 |
— | ||
| replacement | |||||
|
35
|
35
85120-75F01-000
BRACKET,UNDER TRAY
GL,GLX |
85120-75F01-000 |
— | ||
|
36
|
36
03242-05123-000
Screw, inner cover
GL,GLX |
03242-05123-000 |
— | ||
| replacement | |||||
|
36
|
36
03241-0512A-000 SCREWGL,GLX |
03241-0512A-000 |
from US $0.68 |
||
|
37
|
37
85150-74F11-000
Tray assy, front seat under
GL,GLX |
85150-74F11-000 |
— | ||
| replacement | |||||
|
37
|
37
85150-80G10-000 TRAY ASSY,FR UNDERGL,GLX |
85150-80G10-000 |
from US $52.31 |
||
|
38
|
38
85295-74F10-T01 COVER,FR BUCKLE |
85295-74F10-T01 |
US $4.75 |
||
|
39
|
39
86630-74F10-000
ADJUSTER,FR OUTSIDE,R
|
86630-74F10-000 |
— | ||
|
40
|
40
86610-75F00-000
ADJUSTER,FR INSIDE,R
|
86610-75F00-000 |
— | ||
|
41
|
41
86621-74F00-000 ROD,FRONT SEAT ADJUSTER,R |
86621-74F00-000 |
US $6.26 |
||
|
42
|
42
86830-74F10-000
ADJUSTER,FR OUTSIDE,L
|
86830-74F10-000 |
— | ||
|
43
|
43
86810-75F00-000
ADJUSTER,FR INSIDE,L
|
86810-75F00-000 |
— | ||
|
44
|
44
09118-08157-000 BOLT(8X20) |
09118-08157-000 |
US $23.20 |
||
|
45
|
45
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
45
|
45
01570-0816A-000 Bolt |
01570-0816A-000 |
from US $1.12 |
||
|
46
|
46
09103-12040-000 BOLT(12X22) |
09103-12040-000 |
US $1.92 |
||
|
47
|
47
09387-19001-000 RING |
09387-19001-000 |
from US $0.77 |
||
|
48
|
48
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
48
|
48
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
49
|
49
85385-75F00-000
WIRE,FR SEAT BACK SIDE
|
85385-75F00-000 |
— | ||
