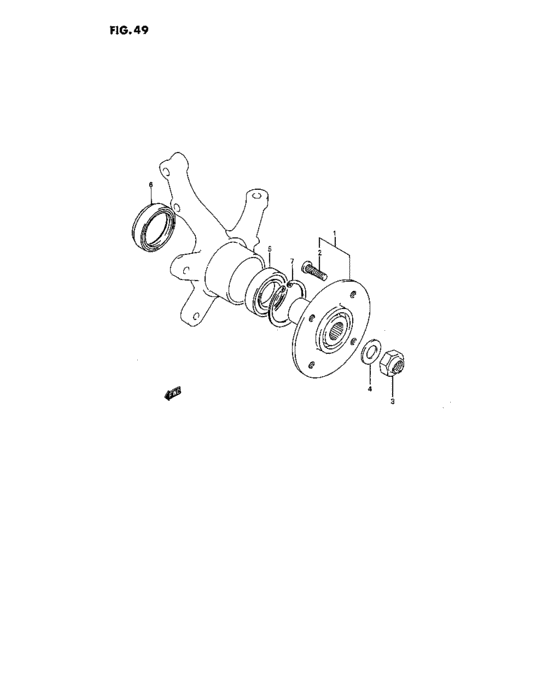

Front wheel hub (FRONT WHEEL HUB) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43420-51841-000
HUB SET FRONT WHEEL
|
43420-51841-000 |
— | ||
| replacement | |||||
|
1
|
1
43420-85800-000 HUB SET,FR WHL |
43420-85800-000 |
from US $126.36 |
||
|
2
|
2
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
from US $1.13 |
||
|
3
|
3
09159-18008-000 NUT |
09159-18008-000 |
from US $3.60 |
||
|
4
|
4
09160-18017-000 WASHER(18X35X4) |
09160-18017-000 |
from US $0.91 |
||
|
5
|
5
43440-78A20-000
Bearing, front wheel
|
43440-78A20-000 |
— | ||
| replacements | |||||
|
5
|
5
43440-58J00-000
BEARING,FR WHEEL
|
43440-58J00-000 |
— | ||
|
5
|
5
43440-58J01-000 BEARING,FR WHEEL |
43440-58J01-000 |
from US $56.24 |
||
|
6
|
6
43430-60810-000 SEAL SET,WHEEL BEARING OIL |
43430-60810-000 |
from US $24.80 |
||
|
7
|
7
08331-41626-000
Ring 62mm
|
08331-41626-000 |
— | ||
| replacement | |||||
|
7
|
7
08331-4162A-000 CIRCLIP |
08331-4162A-000 |
from US $2.50 |
||
