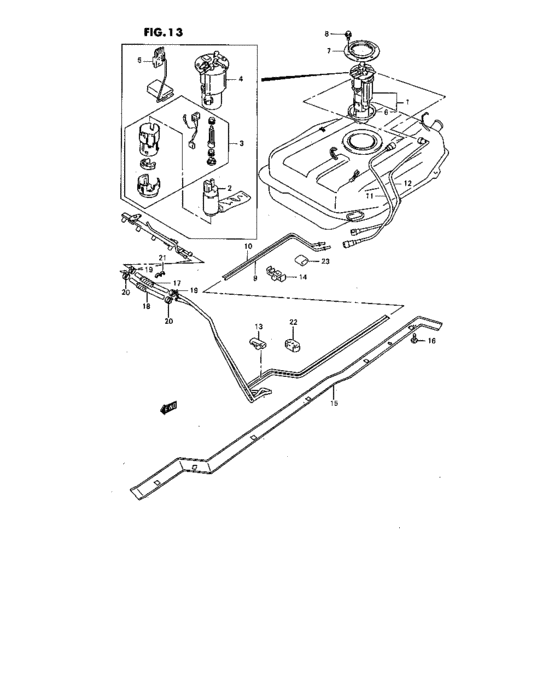

Fuel Pump (FUEL PUMP) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-75820-000
ポンプセット,フューエル
|
15100-75820-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-75822-000 PUMP SET,FUEL |
15100-75822-000 |
US $689.92 |
||
|
2
|
2
15110-75F00-000 PUMP ASSY,FUEL |
15110-75F00-000 |
US $624 |
||
|
3
|
3
15180-75FT0-000
パーツセット,フューエルポンプ
|
15180-75FT0-000 |
— | ||
|
4
|
4
15310-75F00-000
フィルタアッシ,フューエル
|
15310-75F00-000 |
— | ||
| replacement | |||||
|
4
|
4
15310-75F01-000
FILTER ASSY,FUEL
|
15310-75F01-000 |
— | ||
|
5
|
5
34810-75F00-000
GAUGE ASSY,FUEL LEVEL
|
34810-75F00-000 |
— | ||
|
6
|
6
15111-75F00-000
Gasket
|
15111-75F00-000 |
— | ||
| replacement | |||||
|
6
|
6
15111-75F01-000 GASKET,FUEL PUMP |
15111-75F01-000 |
from US $8.84 |
||
|
7
|
7
15121-75F00-000
Plate
|
15121-75F00-000 |
— | ||
| replacement | |||||
|
7
|
7
15121-75F01-000 PLATE,FUEL PUMP |
15121-75F01-000 |
from US $6.17 |
||
|
8
|
8
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
9
|
9
15811-75F00-000
Pipe,fuel
|
15811-75F00-000 |
— | ||
|
10
|
10
15861-75F00-000 PIPE,FUEL RTN |
15861-75F00-000 |
US $26.13 |
||
|
11
|
11
15812-75F10-000
Pipe, fuel
|
15812-75F10-000 |
— | ||
| replacement | |||||
|
11
|
11
15812-75F11-000
PIPE,FUEL PUMP TO PIPE
|
15812-75F11-000 |
— | ||
|
12
|
12
15862-75F00-000
パイプ,フューエルリターンパイプツーポンプ
|
15862-75F00-000 |
— | ||
| replacement | |||||
|
12
|
12
15862-75F03-000 PIPE,FUEL RTN PIPE TO PUMP |
15862-75F03-000 |
US $32.02 |
||
|
13
|
13
15893-67B00-000 CLAMP,FUEL PIPE |
15893-67B00-000 |
US $1.76 |
||
|
14
|
14
15893-75F00-000 CLAMP,FUEL PIPE |
15893-75F00-000 |
US $2.24 |
||
|
15
|
15
15871-75F00-000 COVER,FUEL PIPE |
15871-75F00-000 |
US $26.13 |
||
|
16
|
16
03541-05103-000
Screw5 x 10
|
03541-05103-000 |
— | ||
| replacements | |||||
|
16
|
16
03541-0510B-000 SCREW |
03541-0510B-000 |
from US $0.80 |
||
|
16
|
16
03541-0510A-000 SCREWScrew, rr cover |
03541-0510A-000 |
from US $0.68 |
||
|
17
|
17
15815-75FV0-000
ホース,フューエル(パイプツーポンプ)
|
15815-75FV0-000 |
— | ||
| replacement | |||||
|
17
|
17
15815-80F50-000 HOSE,FUEL |
15815-80F50-000 |
US $118.40 |
||
|
18
|
18
15856-64GV0-000 HOSE,FUEL PIPE TO PUMP |
15856-64GV0-000 |
from US $26.91 |
||
|
19
|
19
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.10 |
||
|
20
|
20
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.28 |
||
|
21
|
21
09408-00121-000 CLAMP |
09408-00121-000 |
US $1.76 |
||
|
22
|
22
15438-75F00-000 CUSHION,FUEL PIPE |
15438-75F00-000 |
US $4.20 |
||
|
23
|
23
15439-75F00-000 CUSHION,FUEL PIPE |
15439-75F00-000 |
US $5.48 |
||
