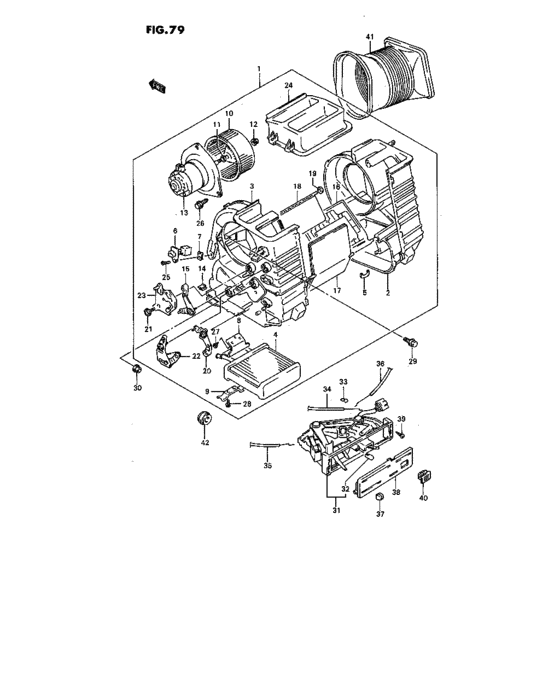

Heater unit (LHD) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-75F50-000
HEATER UNIT
|
74100-75F50-000 |
— | ||
|
2
|
2
74111-75F50-000
CASE,HTR,R
|
74111-75F50-000 |
— | ||
|
3
|
3
74112-70F10-000
CASE,HEATER
|
74112-70F10-000 |
— | ||
|
4
|
4
74120-75F00-000 CORE,HTR |
74120-75F00-000 |
from US $475.20 |
||
|
5
|
5
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $1.60 |
||
|
6
|
6
74140-75F50-000 RESISTOR,BLOWER |
74140-75F50-000 |
US $27.42 |
||
|
7
|
7
74189-70B00-000 NUT,SPEED |
74189-70B00-000 |
US $3.72 |
||
|
8
|
8
74141-75F50-000
CLAMP,HTR PIPE
|
74141-75F50-000 |
— | ||
|
9
|
9
74142-74F00-000
CLAMP,HTR PIPE NO.2
|
74142-74F00-000 |
— | ||
|
10
|
10
88190-79000-000 FAN,BLOWER |
88190-79000-000 |
US $29.81 |
||
|
11
|
11
17112-82000-000 WASHER,FAN |
17112-82000-000 |
from US $0.34 |
||
|
12
|
12
08316-10053-000
Nut
|
08316-10053-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.96 |
||
|
13
|
13
74150-75F50-000
MOTOR
|
74150-75F50-000 |
— | ||
|
14
|
14
74151-50F00-000 CABLE |
74151-50F00-000 |
from US $2.21 |
||
|
15
|
15
74170-70F10-000
LEVER ASSY,VENT
|
74170-70F10-000 |
— | ||
|
16
|
16
74171-70F10-000
DAMPER ASSY
|
74171-70F10-000 |
— | ||
|
17
|
17
74172-70F10-000
DAMPER ASSY
|
74172-70F10-000 |
— | ||
|
18
|
18
74173-70F10-000
Door assy, vent
|
74173-70F10-000 |
— | ||
|
19
|
19
74163-60B00-000 PACKING,DAMPER |
74163-60B00-000 |
US $2.94 |
||
|
20
|
20
74180-70F10-000
LEVER ASSY,HEAT
|
74180-70F10-000 |
— | ||
|
21
|
21
74183-82005-000 SCREW,LINK |
74183-82005-000 |
US $1.73 |
||
|
22
|
22
74190-70F10-000
LEVER ASSY,TEMP
|
74190-70F10-000 |
— | ||
|
23
|
23
74181-75F50-000
LEVER ASSY,MODE CONT
|
74181-75F50-000 |
— | ||
|
24
|
24
74911-75F00-000
ADAPTER,HTR
|
74911-75F00-000 |
— | ||
|
25
|
25
03211-04123-000
Screw
|
03211-04123-000 |
— | ||
| replacement | |||||
|
25
|
25
03211-0412A-000 SCREW |
03211-0412A-000 |
from US $0.80 |
||
|
26
|
26
74135-82000-000 SCREW,MOTOR |
74135-82000-000 |
US $1.73 |
||
|
27
|
27
03512-05123-000
Screw
|
03512-05123-000 |
— | ||
| replacement | |||||
|
27
|
27
03511-0512A-000 SCREW |
03511-0512A-000 |
from US $0.96 |
||
|
28
|
28
02112-05103-000
Bolt
|
02112-05103-000 |
— | ||
| replacement | |||||
|
28
|
28
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
29
|
29
09118-06106-000 BOLT(6X16) |
09118-06106-000 |
from US $1.12 |
||
|
30
|
30
08361-25063-000
Nut
|
08361-25063-000 |
— | ||
| replacement | |||||
|
30
|
30
08361-2506A-000 NUT |
08361-2506A-000 |
US $0.80 |
||
|
31
|
31
74400-75F50-000
LEVER ASSY,HTR CONT
|
74400-75F50-000 |
— | ||
|
32
|
32
74517-70B00-000
BULB,12V 1.4W
|
74517-70B00-000 |
— | ||
|
33
|
33
74441-70B00-000 HOLDER,HEATER CABLE |
74441-70B00-000 |
US $2.80 |
||
|
34
|
34
74451-75F50-000 CABLE,MODE CONTROL |
74451-75F50-000 |
US $10.49 |
||
|
35
|
35
74452-75F50-000
CABLE,TEMP CONTROL
|
74452-75F50-000 |
— | ||
|
36
|
36
74453-75F50-000
CABLE,FRESH AIR CONTROL
|
74453-75F50-000 |
— | ||
|
37
|
37
74461-60F02-000 KNOB,HTR CONTROL |
74461-60F02-000 |
US $2.24 |
||
|
38
|
38
74510-61D00-000 PANEL,HEATER CONTROL |
74510-61D00-000 |
US $78.02 |
||
|
39
|
39
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
39
|
39
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
40
|
40
95646-62B50-000 PLUG,A/C SWITCHN/AIR CON |
95646-62B50-000 |
US $4.05 |
||
|
41
|
41
74611-70B02-000 DUCT,AIRN/AIR CON |
74611-70B02-000 |
US $35.33 |
||
|
42
|
42
74812-60B00-000 GROMMET,HTR |
74812-60B00-000 |
US $4.31 |
||
