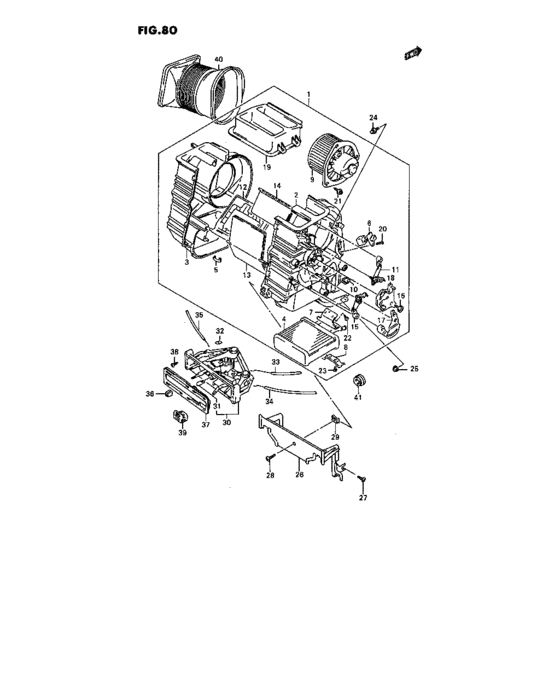

Heater unit (RHD) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-75F00-000
ヒータユニット
|
74100-75F00-000 |
— | ||
|
2
|
2
74111-60D03-000 CASE,HTR,R |
74111-60D03-000 |
US $60.35 |
||
|
3
|
3
74112-75F00-000
CASE,HTR,L
|
74112-75F00-000 |
— | ||
|
4
|
4
74120-75F00-000 CORE,HTR |
74120-75F00-000 |
from US $475.20 |
||
|
5
|
5
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $1.60 |
||
|
6
|
6
74140-75F00-000 RESISTOR,BLOWER |
74140-75F00-000 |
US $20.61 |
||
|
7
|
7
74141-75F50-000
CLAMP,HTR PIPE
|
74141-75F50-000 |
— | ||
|
8
|
8
74142-74F00-000
CLAMP,HTR PIPE NO.2
|
74142-74F00-000 |
— | ||
|
9
|
9
74150-75F00-000
MOTOR,BLOW
|
74150-75F00-000 |
— | ||
|
10
|
10
74151-50F00-000 CABLE |
74151-50F00-000 |
from US $2.21 |
||
|
11
|
11
74170-60D00-000 LEVER ASSY,VENT |
74170-60D00-000 |
US $21.71 |
||
|
12
|
12
74171-70B00-000 DOOR,AIR MIXTURE |
74171-70B00-000 |
US $21.34 |
||
|
13
|
13
74172-70B02-000 DOOR ASSY,HEAT |
74172-70B02-000 |
US $21.34 |
||
|
14
|
14
74173-70B02-000
ドアアッシ,ベント
|
74173-70B02-000 |
— | ||
| replacement | |||||
|
14
|
14
74173-50F00-000 DOOR ASSY,VENT |
74173-50F00-000 |
US $21.34 |
||
|
15
|
15
74180-60D00-000 LEVER ASSY,HEAT |
74180-60D00-000 |
US $16.30 |
||
|
16
|
16
74183-82005-000 SCREW,LINK |
74183-82005-000 |
US $1.73 |
||
|
17
|
17
74190-72B01-000 LEVER ASSY,TEMP |
74190-72B01-000 |
US $20.61 |
||
|
18
|
18
74186-60D02-000 LEVER ASSY,MODE CONT |
74186-60D02-000 |
US $8.91 |
||
|
19
|
19
74911-75F00-000
ADAPTER,HTR
|
74911-75F00-000 |
— | ||
|
20
|
20
03211-04123-000
Screw
|
03211-04123-000 |
— | ||
| replacement | |||||
|
20
|
20
03211-0412A-000 SCREW |
03211-0412A-000 |
from US $0.96 |
||
|
21
|
21
74135-82000-000 SCREW,MOTOR |
74135-82000-000 |
US $1.73 |
||
|
22
|
22
03512-05123-000
Screw
|
03512-05123-000 |
— | ||
| replacement | |||||
|
22
|
22
03511-0512A-000 SCREW |
03511-0512A-000 |
from US $0.96 |
||
|
23
|
23
02112-05103-000
Bolt
|
02112-05103-000 |
— | ||
| replacement | |||||
|
23
|
23
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
24
|
24
09118-06106-000 BOLT(6X16) |
09118-06106-000 |
from US $1.12 |
||
|
25
|
25
08361-25063-000
Nut
|
08361-25063-000 |
— | ||
| replacement | |||||
|
25
|
25
08361-2506A-000 NUT |
08361-2506A-000 |
US $0.80 |
||
|
26
|
26
74912-75F00-000
Cover, heater
|
74912-75F00-000 |
— | ||
|
27
|
27
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
27
|
27
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
28
|
28
03541-05103-000
Screw5 x 10
|
03541-05103-000 |
— | ||
| replacements | |||||
|
28
|
28
03541-0510B-000 SCREW |
03541-0510B-000 |
from US $0.80 |
||
|
28
|
28
03541-0510A-000 SCREWScrew, rr cover |
03541-0510A-000 |
from US $0.68 |
||
|
29
|
29
09148-05020-000 NUT |
09148-05020-000 |
from US $0.45 |
||
|
30
|
30
74400-60D05-000 LEVER ASSY,HTR CONT |
74400-60D05-000 |
US $200 |
||
|
31
|
31
74517-70B00-000
BULB,12V 1.4W
|
74517-70B00-000 |
— | ||
|
32
|
32
74441-70B00-000 HOLDER,HEATER CABLE |
74441-70B00-000 |
US $2.80 |
||
|
33
|
33
74451-75F00-000
CABLE,MODE CONTROL L:390
|
74451-75F00-000 |
— | ||
|
34
|
34
74452-75F00-000
CABLE,TEMP CONTROL L:525
|
74452-75F00-000 |
— | ||
|
35
|
35
74453-75F00-000
CABLE,FRESH AIR CONTROL L:640
|
74453-75F00-000 |
— | ||
|
36
|
36
74461-60F02-000 KNOB,HTR CONTROL |
74461-60F02-000 |
US $2.24 |
||
|
37
|
37
74510-61D00-000 PANEL,HEATER CONTROL |
74510-61D00-000 |
US $78.02 |
||
|
38
|
38
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
38
|
38
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
39
|
39
95646-62B50-000 PLUG,A/C SWITCHN/AIR CON |
95646-62B50-000 |
US $4.05 |
||
|
40
|
40
74611-70B02-000 DUCT,AIRN/AIR CON |
74611-70B02-000 |
US $35.33 |
||
|
41
|
41
74812-60B00-000 GROMMET,HTR |
74812-60B00-000 |
US $4.31 |
||
