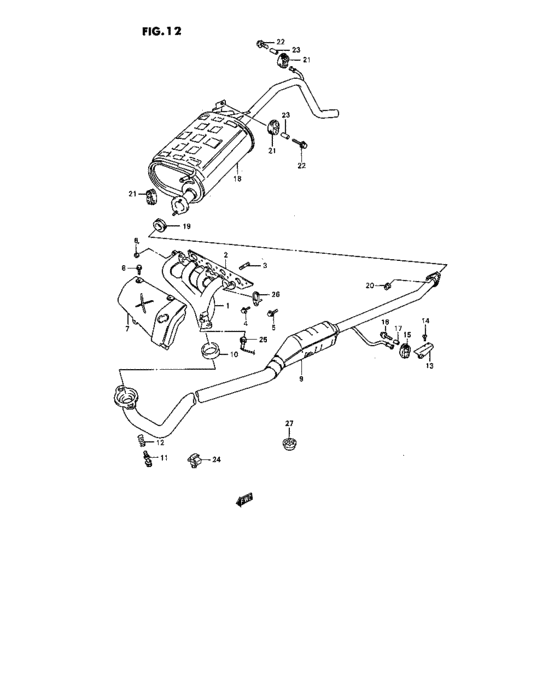

Muffler (MUFFLER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-75FV0-000 MANIFOLD,EXH |
14111-75FV0-000 |
US $211.60 |
||
|
2
|
2
14141-75F00-000
GASKET,EXH MANF
|
14141-75F00-000 |
— | ||
|
3
|
3
14119-81402-000 STUD BOLT |
14119-81402-000 |
US $2.72 |
||
|
4
|
4
14118-73G01-000 BOLT,EXH MANF |
14118-73G01-000 |
from US $15.45 |
||
|
5
|
5
14118-73G01-000 BOLT,EXH MANF |
14118-73G01-000 |
from US $15.45 |
||
|
6
|
6
09159-08056-000 NUT |
09159-08056-000 |
US $1.28 |
||
|
7
|
7
14131-75F02-000
Cover, exhaust manifold
|
14131-75F02-000 |
— | ||
| replacement | |||||
|
7
|
7
14130-75F1V-000 COVER,EXH MANF |
14130-75F1V-000 |
US $20.61 |
||
|
8
|
8
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $1.04 |
||
|
9
|
9
14190-75F11-000
PIPE,EXHAUST
|
14190-75F11-000 |
— | ||
|
10
|
10
14183-78502-000
Ring
|
14183-78502-000 |
— | ||
| replacement | |||||
|
10
|
10
14183-75FC0-000 RING,SEAL EXH PIPE |
14183-75FC0-000 |
from US $14.09 |
||
|
11
|
11
09119-10039-000
Bolt
|
09119-10039-000 |
— | ||
| replacement | |||||
|
11
|
11
14493-76G01-000 BOLT,EXH PIPE |
14493-76G01-000 |
from US $3.04 |
||
|
12
|
12
14492-82001-000 SPRING,EXH PIPE |
14492-82001-000 |
from US $1.28 |
||
|
13
|
13
14284-75F00-000 BRACKET,EXH PIPE |
14284-75F00-000 |
US $7.88 |
||
|
14
|
14
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
15
|
15
14281-78010-000
Mounting, muffler
|
14281-78010-000 |
— | ||
| replacement | |||||
|
15
|
15
14281-60G01-000 MOUNTING,MUF |
14281-60G01-000 |
from US $5.96 |
||
|
16
|
16
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
16
|
16
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
17
|
17
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
17
|
17
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.04 |
||
|
18
|
18
14300-75F00-000 MUFFLER |
14300-75F00-000 |
US $401.12 |
||
|
19
|
19
14182-60B00-000
GASKET,EXH PIPE
|
14182-60B00-000 |
— | ||
| replacement | |||||
|
19
|
19
14182-60B01-000 Gasket,exh Pipe |
14182-60B01-000 |
from US $3.34 |
||
|
20
|
20
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
21
|
21
14281-78010-000
Mounting, muffler
|
14281-78010-000 |
— | ||
| replacement | |||||
|
21
|
21
14281-60G01-000 MOUNTING,MUF |
14281-60G01-000 |
from US $5.96 |
||
|
22
|
22
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
22
|
22
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
23
|
23
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
23
|
23
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.04 |
||
|
24
|
24
09403-05313-000
Clip, band
|
09403-05313-000 |
— | ||
| replacement | |||||
|
24
|
24
18214-75F00-000 CLAMP |
18214-75F00-000 |
from US $1.82 |
||
|
25
|
25
18213-64F00-000 SENSOR,OXYGEN |
18213-64F00-000 |
US $242.88 |
||
|
26
|
26
11851-62B00-000 HOOK |
11851-62B00-000 |
from US $1.87 |
||
|
27
|
27
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
