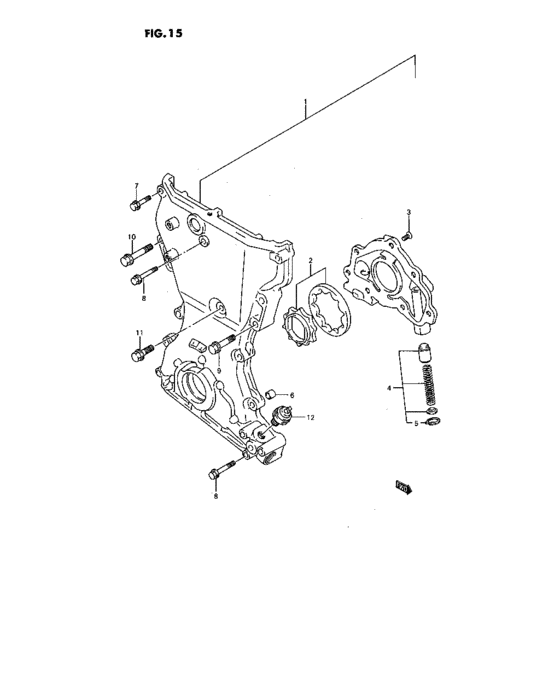

Oil pump (OIL PUMP) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-75F00-000
PUMP ASSY,OIL
|
16100-75F00-000 |
— | ||
|
2
|
2
16130-70B01-000 ROTOR SET,OIL PUMPRotor set, oil pump |
16130-70B01-000 |
US $121.60 |
||
|
3
|
3
02122-06163-000
Screw
|
02122-06163-000 |
— | ||
| replacements | |||||
|
3
|
3
02122-0616B-000 SCREWScrew, intake pipe |
02122-0616B-000 |
from US $0.80 |
||
|
3
|
3
02122-0616A-000 SCREW |
02122-0616A-000 |
from US $0.76 |
||
|
4
|
4
16150-60A00-000
Valve set, relief
|
16150-60A00-000 |
— | ||
| replacement | |||||
|
4
|
4
16150-60A20-000 VALVE SET,OIL PUMP RELIEF |
16150-60A20-000 |
from US $4.48 |
||
|
5
|
5
08331-41156-000
Circlip
|
08331-41156-000 |
— | ||
| replacement | |||||
|
5
|
5
08331-4115A-000 CIRCLIP |
08331-4115A-000 |
US $1.76 |
||
|
6
|
6
04211-09109-000 PINKnock pin |
04211-09109-000 |
from US $0.86 |
||
|
7
|
7
01550-06303-000
Bolt (6x30)
|
01550-06303-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0630A-000 Bolt |
01550-0630A-000 |
from US $1.12 |
||
|
8
|
8
01550-06503-000
Bolt
|
01550-06503-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0650B-000 Bolt |
01550-0650B-000 |
US $15.50 |
||
|
8
|
8
01550-0650A-000 BoltBolt (6x50) |
01550-0650A-000 |
from US $0.96 |
||
|
9
|
9
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
9
|
9
01550-0840A-000 Bolt |
01550-0840A-000 |
from US $1.12 |
||
|
10
|
10
01550-08453-000
Bolt,cylinder h
|
01550-08453-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0845B-000 Bolt |
01550-0845B-000 |
from US $1.06 |
||
|
10
|
10
01550-0845A-000 BoltBolt, oil pump (s) |
01550-0845A-000 |
US $5.03 |
||
|
11
|
11
09103-08344-000
Bolt (8x40)
|
09103-08344-000 |
— | ||
| replacement | |||||
|
11
|
11
09103-08388-000 BOLT(8X40)Bolt, rr final gr case |
09103-08388-000 |
US $16.90 |
||
|
12
|
12
37820-82001-000
Switch assy, oil pressure
|
37820-82001-000 |
— | ||
| replacement | |||||
|
12
|
12
37820-820P0-000 SWITCH ASSY,OIL PRESSURE |
37820-820P0-000 |
from US $12.67 |
||
