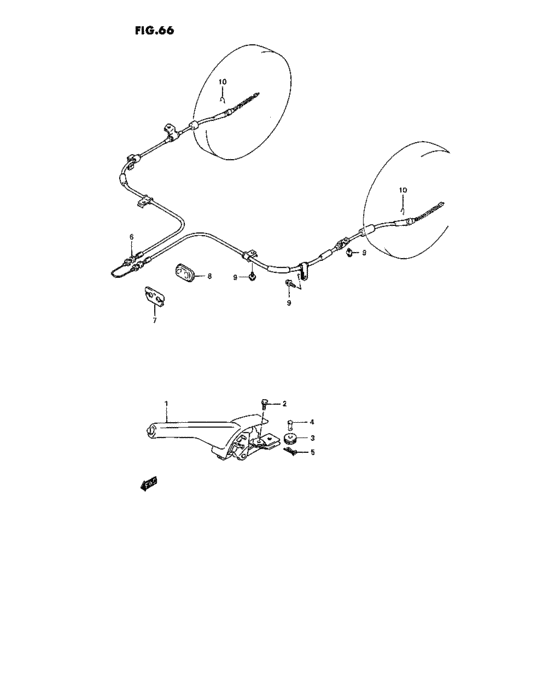

Parking brake (PARKING BRAKE) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54000-75F10-5PK
LEVER ASSY,PARKING BK
|
54000-75F10-5PK |
— | ||
| replacement | |||||
|
1
|
1
54000-75F11-5PK LEVER ASSY,PARK BK(BLACK) |
54000-75F11-5PK |
US $111.50 |
||
|
2
|
2
01570-06163-000
Bolt
|
01570-06163-000 |
— | ||
| replacements | |||||
|
2
|
2
01570-0616B-000 Bolt |
01570-0616B-000 |
from US $0.80 |
||
|
2
|
2
01570-0616A-000 Bolt |
01570-0616A-000 |
from US $0.96 |
||
|
3
|
3
54482-78010-000 PULLEY,PARKING BRAKE CABLE |
54482-78010-000 |
US $2.39 |
||
|
4
|
4
09200-08039-000 PIN |
09200-08039-000 |
US $1.28 |
||
|
5
|
5
09385-08007-000 PIN,SNAPClip |
09385-08007-000 |
from US $1.09 |
||
|
6
|
6
54400-75F00-000 CABLE,PARKING BRAKE |
54400-75F00-000 |
US $144.99 |
||
|
7
|
7
54495-82000-000 STRENGTH,PARKING CABLE |
54495-82000-000 |
US $2.94 |
||
|
8
|
8
54499-84000-000 GROMMET,PARKING CABLE,NO.1 |
54499-84000-000 |
US $3.83 |
||
|
9
|
9
02162-06123-000
Bolt (6x12)
N/ABS |
02162-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
02162-0612B-000 SCREWBolt N/ABS |
02162-0612B-000 |
from US $0.80 |
||
|
9
|
9
02162-0612A-000 SCREWBolt, bracket N/ABS |
02162-0612A-000 |
from US $0.79 |
||
|
9
|
9
02162-06163-000
Screw
W/ABS |
02162-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
02162-0616B-000 SCREWBolt, adjust W/ABS |
02162-0616B-000 |
from US $0.96 |
||
|
10
|
10
53771-70G00-000 CLIP,PARKING CABLE |
53771-70G00-000 |
US $2.61 |
||
