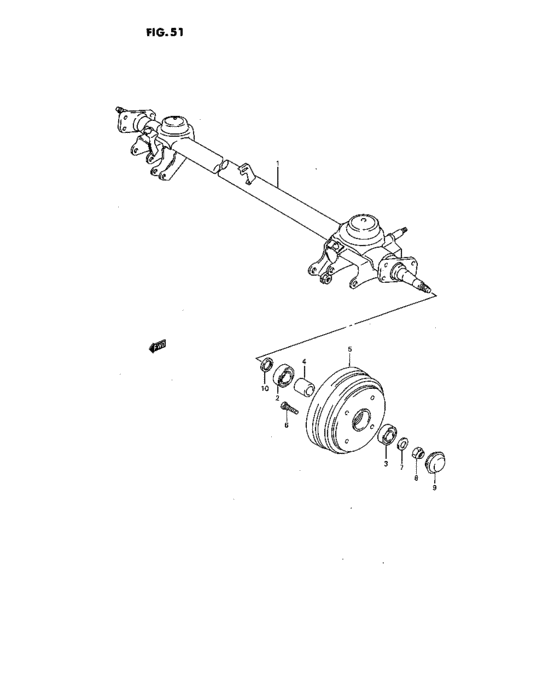

Rear axle (REAR AXLE) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46510-75F30-000
Axle, rear
N/ABS |
46510-75F30-000 |
— | ||
| replacement | |||||
|
1
|
1
46510-75F31-000
AXLE,RR
N/ABS |
46510-75F31-000 |
— | ||
|
1
|
1
46510-75F50-000
アクスル,リヤ
W/ABS |
46510-75F50-000 |
— | ||
| replacement | |||||
|
1
|
1
46510-75F51-000
Axle comp,rear
W/ABS |
46510-75F51-000 |
— | ||
|
2
|
2
09262-25061-000 BEARING(25X52X15) |
09262-25061-000 |
from US $19 |
||
|
3
|
3
09262-20069-000 BEARING(20X47X14) |
09262-20069-000 |
from US $12.16 |
||
|
4
|
4
09180-21001-000 SPACER(20.4X32X30) |
09180-21001-000 |
from US $1.91 |
||
|
5
|
5
43511-75F02-000 DRUM,BRAKE RR |
43511-75F02-000 |
US $142.05 |
||
|
6
|
6
09119-12016-000 BOLT(12X33) |
09119-12016-000 |
from US $2.36 |
||
|
7
|
7
08322-01163-000
Washer
|
08322-01163-000 |
— | ||
| replacement | |||||
|
7
|
7
08322-0116A-000 WASHER |
08322-0116A-000 |
from US $0.80 |
||
|
8
|
8
09159-16011-000 NUT |
09159-16011-000 |
from US $2.24 |
||
|
9
|
9
43241-79001-000
Cap, spindle
|
43241-79001-000 |
— | ||
| replacement | |||||
|
9
|
9
43241-79002-000 CAP,SPINDLE |
43241-79002-000 |
from US $4.37 |
||
|
10
|
10
43439-75F00-000 SPACER,REAR WHEEL BRG INNER |
43439-75F00-000 |
US $7.88 |
||
