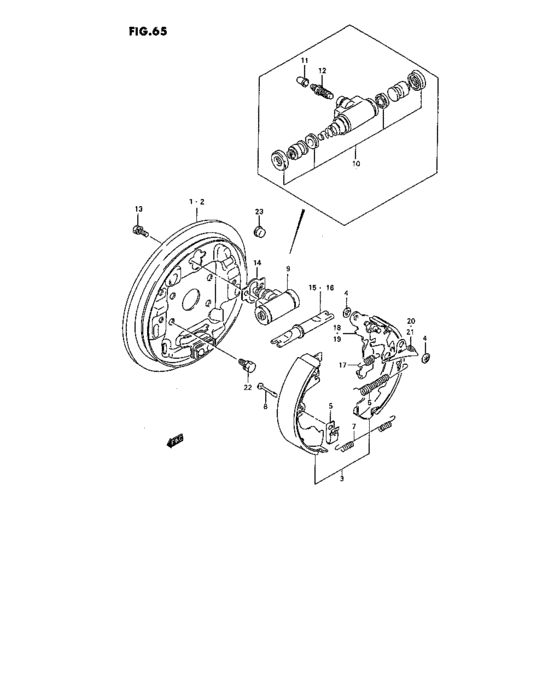

Rear brake (REAR BRAKE) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53101-75F20-000 PLATE,RR BRAKE BACKING,R |
53101-75F20-000 |
from US $76.54 |
||
|
2
|
2
53102-75F20-000 PLATE,RR BRAKE BACKING,L |
53102-75F20-000 |
from US $76.54 |
||
|
3
|
3
53200-70822-000
シューセット,ブレーキ
|
53200-70822-000 |
— | ||
| replacement | |||||
|
3
|
3
53200-75F11-000 SHOE SET,BRAKE |
53200-75F11-000 |
US $65.87 |
||
|
4
|
4
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
| replacement | |||||
|
4
|
4
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
5
|
5
52243-84010-000 SPRING,SHOE HOLD DOWN |
52243-84010-000 |
from US $2.21 |
||
|
6
|
6
53231-70G00-000 SPRING,SHOE RETURN UPPER |
53231-70G00-000 |
from US $3.67 |
||
|
7
|
7
53232-70G00-000 SPRING,SHOE RETURN LOWER |
53232-70G00-000 |
US $5.47 |
||
|
8
|
8
52241-84010-000 PIN,SHOE HOLD DOWN |
52241-84010-000 |
from US $1.76 |
||
|
9
|
9
53401-75F00-000
シリンダアッシ,リヤホイール
|
53401-75F00-000 |
— | ||
| replacement | |||||
|
9
|
9
53401-76G02-000 CYLINDER ASSY,REAR WHEEL |
53401-76G02-000 |
from US $51.62 |
||
|
10
|
10
52400-84811-000 PISTON CUP&BOOT SET |
52400-84811-000 |
US $9.46 |
||
|
11
|
11
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
12
|
12
55151-60D10-000 PLUG,BLEEDER |
55151-60D10-000 |
from US $2.81 |
||
|
13
|
13
01570-06103-000
Bolt
|
01570-06103-000 |
— | ||
| replacement | |||||
|
13
|
13
01570-0610A-000 Bolt |
01570-0610A-000 |
from US $2.48 |
||
|
14
|
14
53446-50A10-000 SEAT,REAR WHEEL CYLINDER |
53446-50A10-000 |
US $2.29 |
||
|
15
|
15
53701-70G10-000 STRUT ASSY,REAR BRAKE,R |
53701-70G10-000 |
from US $26.13 |
||
|
16
|
16
53702-70G10-000 STRUT ASSY,REAR BRAKE,L |
53702-70G10-000 |
from US $26.13 |
||
|
17
|
17
53711-70G00-000 SPRING,PARKING LEVER |
53711-70G00-000 |
from US $2.88 |
||
|
18
|
18
53751-70G00-000 LEVER,PARKING SHOE,R |
53751-70G00-000 |
US $14.43 |
||
|
19
|
19
53761-70G00-000 LEVER,PARKING SHOE,L |
53761-70G00-000 |
US $13.98 |
||
|
20
|
20
53782-70G01-000 LEVER,ADJUSTING,R |
53782-70G01-000 |
US $10.78 |
||
|
21
|
21
53781-70G01-000 LEVER,ADJUSTING,L |
53781-70G01-000 |
US $10.78 |
||
|
22
|
22
09117-08070-000 BOLT(8X19) |
09117-08070-000 |
US $19.10 |
||
|
23
|
23
53141-75F00-000 PLUG,BACKING PLATE |
53141-75F00-000 |
US $3.05 |
||
