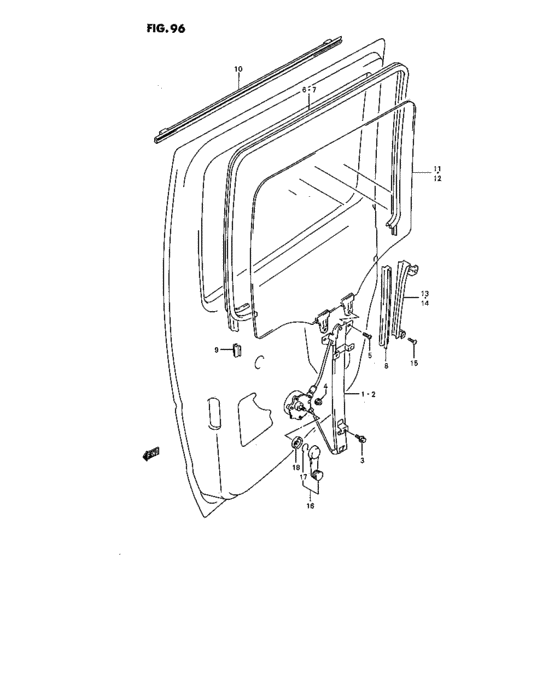

Rr door regulator (RR DOOR REGULATOR) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83510-74F00-000 REGULATOR ASSY,RR WINDOW,RGA,GL |
83510-74F00-000 |
US $116.29 |
||
|
1
|
1
83501-74F10-000 REGULATOR ASSY,RR WINDOW,RGLX |
83501-74F10-000 |
US $336.72 |
||
|
2
|
2
83540-74F00-000 REGULATOR ASSY,RR WINDOW,LGA,GL |
83540-74F00-000 |
US $116.29 |
||
|
2
|
2
83502-74F10-000 REGURATOR ASSY,RR WINDOW,LGLX |
83502-74F10-000 |
US $336.72 |
||
|
3
|
3
02162-06123-000
Bolt (6x12)
GA,GL |
02162-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
02162-0612B-000 SCREWBolt GA,GL |
02162-0612B-000 |
from US $0.80 |
||
|
3
|
3
02162-0612A-000 SCREWBolt, bracket GA,GL |
02162-0612A-000 |
from US $0.79 |
||
|
4
|
4
08316-10063-000
Nut
GA,GL |
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUTGA,GL |
08316-1006B-000 |
from US $0.80 |
||
|
5
|
5
02112-76103-000
Screw
|
02112-76103-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-7610A-000 SCREW |
02112-7610A-000 |
from US $3.59 |
||
|
6
|
6
83675-74F00-000 RUN,RR DOOR GLASS,R |
83675-74F00-000 |
US $145.73 |
||
|
7
|
7
83671-74F00-000 RUN,RR DOOR GLASS |
83671-74F00-000 |
US $145.73 |
||
|
8
|
8
83672-74F00-000
Run, door glass fr
|
83672-74F00-000 |
— | ||
| replacement | |||||
|
8
|
8
83662-76F00-000 RUN,RR DOOR GLASS RR |
83662-76F00-000 |
from US $7.34 |
||
|
9
|
9
87415-70B00-000 STOPPER,DOOR GLASS |
87415-70B00-000 |
US $3.75 |
||
|
10
|
10
83840-74F02-000 WEATHERSTRIP,RR DR OUT |
83840-74F02-000 |
US $59.62 |
||
|
11
|
11
84541-74F31-000
ガラス,リヤドアウィンド,ライト
|
84541-74F31-000 |
— | ||
|
12
|
12
84546-74F31-000
ガラス,リヤドアウィンド,レフト
|
84546-74F31-000 |
— | ||
|
13
|
13
81770-74F00-000 SASH,RR DOOR REAR,R |
81770-74F00-000 |
US $16.01 |
||
|
14
|
14
81780-74F00-000 SASH,RR DOOR REAR,L |
81780-74F00-000 |
US $16.01 |
||
|
15
|
15
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $1.12 |
||
|
16
|
16
82960-60G00-T01 HANDLE,DR WINDOW RGLTR(GRAY)GA,GL |
82960-60G00-T01 |
from US $12.13 |
||
|
17
|
17
78463-78000-000 SNAPGA,GL |
78463-78000-000 |
from US $1.24 |
||
|
18
|
18
82972-70B00-T01 ESCUTCHEON,WINDOW RGLTR HDL(GRGA,GL |
82972-70B00-T01 |
from US $1.82 |
||
