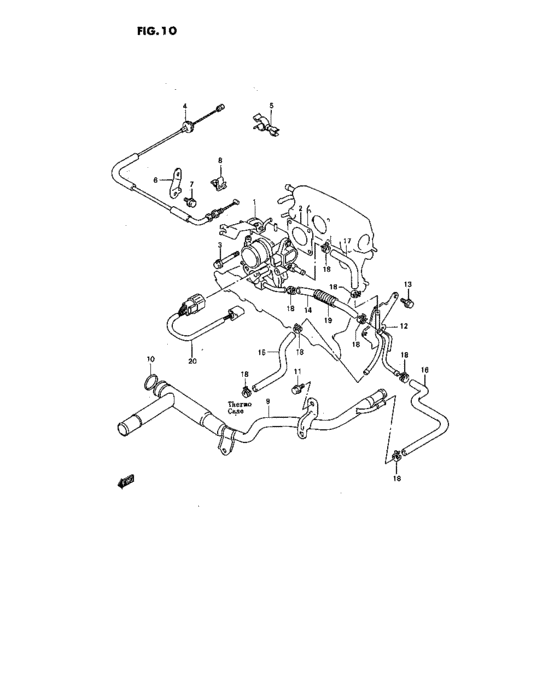

Throttle body (THROTTLE BODY) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-75F11-000
Body assy,throttle
|
13400-75F11-000 |
— | ||
|
2
|
2
13420-73GT0-000 SENSOR SET,THROTTLE POSITION |
13420-73GT0-000 |
US $279.68 |
||
|
3
|
3
13421-75F00-000 GASKET,THROTTLE BODY |
13421-75F00-000 |
US $3.72 |
||
|
4
|
4
01550-06503-000
Bolt
|
01550-06503-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0650B-000 Bolt |
01550-0650B-000 |
US $15.50 |
||
|
4
|
4
01550-0650A-000 BoltBolt (6x50) |
01550-0650A-000 |
from US $0.96 |
||
|
5
|
5
15910-75F11-000
Cable assy, accel
LHD |
15910-75F11-000 |
— | ||
| replacement | |||||
|
5
|
5
15910-75F13-000
CABLE ASSY,ACCEL
LHD |
15910-75F13-000 |
— | ||
|
5
|
5
15910-75F00-000
ケーブルアッシ,アクセル
RHD |
15910-75F00-000 |
— | ||
| replacement | |||||
|
5
|
5
15910-75F02-000
CABLE ASSY,ACCEL
RHD |
15910-75F02-000 |
— | ||
|
6
|
6
09408-00079-000 CLAMPLHD |
09408-00079-000 |
from US $0.65 |
||
|
7
|
7
15918-75F00-000
Bracket,accel cable
RHD:W/ABS |
15918-75F00-000 |
— | ||
| replacement | |||||
|
7
|
7
15918-75F0V-000
Bracket,accel cable
RHD:W/ABS |
15918-75F0V-000 |
— | ||
|
8
|
8
02162-06123-000
Bolt (6x12)
RHD:W/ABS |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt RHD:W/ABS |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket RHD:W/ABS |
02162-0612A-000 |
from US $0.79 |
||
|
9
|
9
09403-05311-000 CLAMPRHD:W/ABS |
09403-05311-000 |
US $14.40 |
||
|
10
|
10
17830-75F10-000
パイプ,ウォータインレット
|
17830-75F10-000 |
— | ||
| replacement | |||||
|
10
|
10
17830-75FV0-000 PIPE,WATER INLET |
17830-75FV0-000 |
US $152 |
||
|
11
|
11
17849-53E00-000 O-RING,WATER INLET PIPEO ring, water inlet pipe |
17849-53E00-000 |
from US $1.52 |
||
|
12
|
12
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
12
|
12
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
13
|
13
17950-75F00-000
パイプ,ウォータスロットル
|
17950-75F00-000 |
— | ||
|
13
|
13
17950-75F01-000
PIPE,WATER THROTTLE
JSAEMA61S00102120~ |
17950-75F01-000 |
— | ||
|
14
|
14
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
17956-75F00-000
ホース,ウォータスロットルアウトレット,NO.1
|
17956-75F00-000 |
— | ||
| replacements | |||||
|
15
|
15
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.35 |
||
|
15
|
15
13491-78A30-000
HOSE,WATER THROT BODY INLET
|
13491-78A30-000 |
— | ||
|
15
|
15
17956-75F01-000
ホース,ウォータスロットルアウトレット,NO.1
->17956-75F02,USED WITH 09401-12410(2PCS),JSAEMA61S00102120~ |
17956-75F01-000 |
— | ||
| replacements | |||||
|
15
|
15
09401-12410-000 CLIPClip, filter outlet ->17956-75F02,USED WITH 09401-12410(2PCS),JSAEMA61S00102120~ |
09401-12410-000 |
from US $1.35 |
||
|
15
|
15
17956-75F02-000 HOSE,WATER THROT OUTLET NO.1->17956-75F02,USED WITH 09401-12410(2PCS),JSAEMA61S00102120~ |
17956-75F02-000 |
US $6.55 |
||
|
15
|
15
17956-75F02-000 HOSE,WATER THROT OUTLET NO.1JSAEMA61S00117128~ |
17956-75F02-000 |
US $6.55 |
||
|
16
|
16
17957-75F00-000
ホース,ウォータスロットルインレット,NO.1
->17957-75F01,USED WITH 09401-12410(2PCS) |
17957-75F00-000 |
— | ||
| replacements | |||||
|
16
|
16
09401-12410-000 CLIPClip, filter outlet ->17957-75F01,USED WITH 09401-12410(2PCS) |
09401-12410-000 |
from US $1.35 |
||
|
16
|
16
17957-75F01-000 HOSE,WATER THROT INLET NO.1->17957-75F01,USED WITH 09401-12410(2PCS) |
17957-75F01-000 |
US $7.29 |
||
|
16
|
16
17957-75F01-000 HOSE,WATER THROT INLET NO.1JSAEMA61S00117128~ |
17957-75F01-000 |
US $7.29 |
||
|
17
|
17
17958-75F00-000
ホース,ウォータスロットルアウトレット,NO.2
->17958-75F01,USED WITH 09401-12410(2PCS) |
17958-75F00-000 |
— | ||
| replacements | |||||
|
17
|
17
09401-12410-000 CLIPClip, filter outlet ->17958-75F01,USED WITH 09401-12410(2PCS) |
09401-12410-000 |
from US $1.35 |
||
|
17
|
17
17958-75F01-000 HOSE,WATER THROT OUTLET NO.2->17958-75F01,USED WITH 09401-12410(2PCS) |
17958-75F01-000 |
US $8.10 |
||
|
17
|
17
17958-75F01-000 HOSE,WATER THROT OUTLET NO.2JSAEMA61S00117128~ |
17958-75F01-000 |
US $8.10 |
||
|
18
|
18
17959-75F00-000 HOSE,WATER THROT INLET NO.2 |
17959-75F00-000 |
US $5.92 |
||
|
18
|
18
17959-75F01-000
ホース,ウォータスロットルインレット,NO.2
->17959-75F02,USED WITH 09401-12410(2PCS),JSAEMA61S00102120~ |
17959-75F01-000 |
— | ||
| replacements | |||||
|
18
|
18
09401-12410-000 CLIPClip, filter outlet ->17959-75F02,USED WITH 09401-12410(2PCS),JSAEMA61S00102120~ |
09401-12410-000 |
from US $1.35 |
||
|
18
|
18
17959-78F00-000 HOSE,WTR THROT OUTLET NO.1->17959-75F02,USED WITH 09401-12410(2PCS),JSAEMA61S00102120~ |
17959-78F00-000 |
US $7.76 |
||
|
18
|
18
17959-75F02-000
ホース,ウォータスロットルインレット,NO.2
JSAEMA61S00117128~ |
17959-75F02-000 |
— | ||
| replacement | |||||
|
18
|
18
17959-78F00-000 HOSE,WTR THROT OUTLET NO.1JSAEMA61S00117128~ |
17959-78F00-000 |
US $7.76 |
||
|
19
|
19
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
19
|
19
09401-12410-000 CLIPClip, filter outlet JSAEMA61S00117128~ |
09401-12410-000 |
from US $1.35 |
||
|
20
|
20
09352-13162-600 HOSE(13.5X16.5X600)Protector, seat damper L:600->50 |
09352-13162-600 |
from US $11.40 |
||
|
21
|
21
13431-75F00-000
HARNESS,T.P.S
|
13431-75F00-000 |
— | ||
