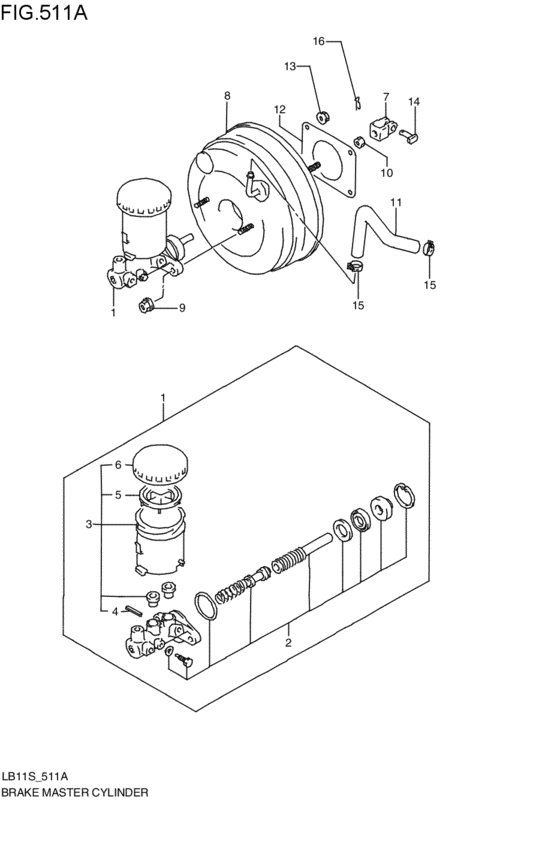

brakes master cylinder (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-57B10-000
Cylinder assy,brake master
1995-10-01~ |
51100-57B10-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-57B11-000
CYLINDER ASSY,BRAKE MASTER
1995-10-01~ |
51100-57B11-000 |
— | ||
|
2
|
2
51810-57B00-000
Repair set,brake master
1995-10-01~ |
51810-57B00-000 |
— | ||
| replacement | |||||
|
2
|
2
51810-57B01-000 REPAIR SET,BRAKE MASTER1995-10-01~ |
51810-57B01-000 |
US $61.60 |
||
|
3
|
3
51200-77E00-000
リザーバアッシ,マスタシリンダ
1995-10-01~ |
51200-77E00-000 |
— | ||
| replacement | |||||
|
3
|
3
51200-77E01-000 RESERVOIR ASSY,MASTER CYLINDER1995-10-01~ |
51200-77E01-000 |
US $156.80 |
||
|
4
|
4
09205-05003-000 PIN,SPRING(5X45)1995-10-01~ |
09205-05003-000 |
US $1.76 |
||
|
5
|
5
51234-60A20-000 STRAINER,MASTER CYLINDER1995-10-01~ |
51234-60A20-000 |
US $7.68 |
||
|
6
|
6
51220-60A20-000 CAP,RESERVOIR1995-10-01~ |
51220-60A20-000 |
US $17.60 |
||
|
7
|
7
51182-60A60-000
クレビス,シリンダプッシュロッド
1995-10-01~ |
51182-60A60-000 |
— | ||
| replacement | |||||
|
7
|
7
51182-77E00-000 CLEVIS,CYLINDER PUSH ROD1995-10-01~ |
51182-77E00-000 |
US $9.12 |
||
|
8
|
8
51300-77E10-000
BOOSTER ASSY,BRAKE MASTER
1995-10-01~ |
51300-77E10-000 |
— | ||
|
9
|
9
09159-08075-000 NUT1995-10-01~ |
09159-08075-000 |
US $0.91 |
||
|
10
|
10
09140-10019-000 NUT1995-10-01~ |
09140-10019-000 |
US $9.20 |
||
|
11
|
11
51010-58B00-000 HOSE,BRAKE VACUUM1995-10-01~ |
51010-58B00-000 |
US $48.21 |
||
|
12
|
12
51132-82003-000 PACKING,BRAKE MASTER CYLINDER1995-10-01~ |
51132-82003-000 |
US $1.60 |
||
|
13
|
13
09159-08069-000
Nut
1995-10-01~ |
09159-08069-000 |
— | ||
| replacement | |||||
|
13
|
13
09159-08135-000 NUT1995-10-01~ |
09159-08135-000 |
from US $0.77 |
||
|
14
|
14
09200-10021-000 PIN1995-10-01~ |
09200-10021-000 |
US $1.28 |
||
|
15
|
15
09401-15404-000 CLIP1995-10-01~ |
09401-15404-000 |
from US $1.06 |
||
|
16
|
16
09385-10006-000 PIN,SNAPPin 1995-10-01~ |
09385-10006-000 |
from US $1.60 |
||
