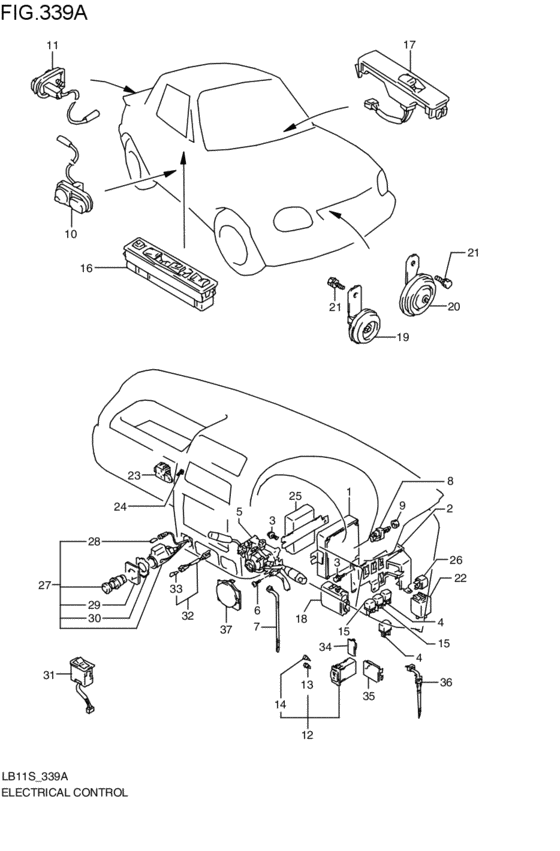

electrical control (スイッチアッシ,パワーウィンドゥ; 1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33920-79E40-000
コントローラアッシ,フューエルインジェクション
1995-10-01~ |
33920-79E40-000 |
— | ||
|
2
|
2
33924-77E00-000
Bracket,epi cont
1995-10-01~ |
33924-77E00-000 |
— | ||
|
3
|
3
02162-06103-000
Bolt
1995-10-01~ |
02162-06103-000 |
— | ||
| replacement | |||||
|
3
|
3
02162-0610A-000 SCREW1995-10-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
4
|
4
38850-50F50-000 RELAY ASSY,MAIN/FUEL PUMPEPI RELAY; 1995-10-01~ |
38850-50F50-000 |
from US $34 |
||
|
5
|
5
37400-77E00-000 SWITCH ASSY,COMB1995-10-01~ |
37400-77E00-000 |
US $905.60 |
||
|
6
|
6
02112-05123-000
Screw 5x12
1995-10-01~ |
02112-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0512A-000 SCREW1995-10-01~ |
02112-0512A-000 |
from US $0.80 |
||
|
7
|
7
09407-25401-000 CLAMP(L:235)Clamp (l:235) 1995-10-01~ |
09407-25401-000 |
from US $2.08 |
||
|
8
|
8
37740-60D01-000 SWITCH ASSY,STOP LAMP5MT; 1995-10-01~ |
37740-60D01-000 |
US $42.40 |
||
|
9
|
9
09140-10043-000 NUTNut, tie rod rh thread 1995-10-01~ |
09140-10043-000 |
from US $0.91 |
||
|
10
|
10
37670-60G00-000
Switch assy,door
1995-10-01~ |
37670-60G00-000 |
— | ||
| replacements | |||||
|
10
|
10
37670-60G01-000 SWITCH ASSY,DOOR1995-10-01~ |
37670-60G01-000 |
US $22.40 |
||
|
10
|
10
37670-79E01-000 SWITCH ASSY,TRUNK1995-10-01~ |
37670-79E01-000 |
US $17.19 |
||
|
11
|
11
37670-79E00-000
Switch assy,trunk
1995-10-01~ |
37670-79E00-000 |
— | ||
| replacement | |||||
|
11
|
11
37670-79E01-000 SWITCH ASSY,TRUNK1995-10-01~ |
37670-79E01-000 |
US $17.19 |
||
|
12
|
12
37860-70F00-000 SWITCH ASSY,RR DEFOGGER1995-10-01~ |
37860-70F00-000 |
US $139.20 |
||
|
13
|
13
09471-12135-000 BULB(CLEAR)クリア; 1995-10-01~ |
09471-12135-000 |
US $57 |
||
|
14
|
14
37399-60E10-000 BULB,SWITCH(GREEN)グリーン; 1995-10-01~ |
37399-60E10-000 |
US $10.34 |
||
|
15
|
15
38850-50F50-000 RELAY ASSY,MAIN/FUEL PUMPHEADLAMP RELAY; 1995-10-01~ |
38850-50F50-000 |
from US $34 |
||
|
16
|
16
37990-56B50-H2H
スイッチアッシ,パワーウィンド,マスタ
ブラック; 1995-10-01~ |
37990-56B50-H2H |
— | ||
| replacement | |||||
|
16
|
16
37990-56B51-H2H
SWITCH ASSY,P/W MASTER
ブラック; 1995-10-01~ |
37990-56B51-H2H |
— | ||
|
17
|
17
37995-56B60-H2H
SWITCH ASSY,P/W SUB
ブラック; 1995-10-01~ |
37995-56B60-H2H |
— | ||
|
18
|
18
38700-77E10-000 CONTROLLER ASSY,PWR DR LOCK1995-10-01~ |
38700-77E10-000 |
US $198.72 |
||
|
19
|
19
38500-60A00-000
ホーンアッシ
ハイピッチド; 1995-10-01~ |
38500-60A00-000 |
— | ||
| replacement | |||||
|
19
|
19
38500-60A01-000 HORN ASSYハイピッチド; 1995-10-01~ |
38500-60A01-000 |
US $100 |
||
|
20
|
20
38500-70E00-000 HORN ASSY,LOW PITCHEDローピッチド; 1995-10-01~ |
38500-70E00-000 |
US $74.40 |
||
|
21
|
21
01570-08123-000
Bolt
1995-10-01~ |
01570-08123-000 |
— | ||
| replacement | |||||
|
21
|
21
01570-0812A-000 Bolt1995-10-01~ |
01570-0812A-000 |
US $14.40 |
||
|
22
|
22
38610-84001-000
リレー,ターンシグナル/4ウェイ
OMRON; 1995-10-01~ |
38610-84001-000 |
— | ||
| replacement | |||||
|
22
|
22
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way OMRON; 1995-10-01~ |
38610-76G00-000 |
US $56.80 |
||
|
23
|
23
38590-77E10-000 CONTROLLER,WARNING BUZZER1995-10-01~ |
38590-77E10-000 |
US $138 |
||
|
24
|
24
03541-05163-000
Screw
1995-10-01~ |
03541-05163-000 |
— | ||
| replacement | |||||
|
24
|
24
03541-0516A-000 SCREW1995-10-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
26
|
26
38850-50F50-000 RELAY ASSY,MAIN/FUEL PUMPHORN RELAY; 1995-10-01~ |
38850-50F50-000 |
from US $34 |
||
|
27
|
27
39400-86821-000 LIGHTER ASSY,CIGARETTE1995-10-01~ |
39400-86821-000 |
US $27.20 |
||
|
28
|
28
09471-12055-000 BULB(14V1.4W,T5)DENSO; 1995-10-01~ |
09471-12055-000 |
from US $2.40 |
||
|
29
|
29
39471-60A00-000 RIM,CIGARETTE1995-10-01~ |
39471-60A00-000 |
US $4.23 |
||
|
30
|
30
39472-82000-000 WASHER,CIGARETTE LIGHTER1995-10-01~ |
39472-82000-000 |
US $1.25 |
||
|
32
|
32
36550-60E00-000 LAMP ASSY,ASHTRAY ILLUM1995-10-01~ |
36550-60E00-000 |
US $21.90 |
||
|
33
|
33
09471-12091-000 BULB(12V1.4W G30)DENSO; 1995-10-01~ |
09471-12091-000 |
US $28 |
||
|
34
|
34
37285-60E00-000 CAP,OPTION SW HOLE1995-10-01~ |
37285-60E00-000 |
US $2.24 |
||
|
35
|
35
37955-60E00-000 CAP,MIRROR SW HOLE1995-10-01~ |
37955-60E00-000 |
US $4.31 |
||
|
36
|
36
09407-12404-000 CLAMP(L:140)1995-10-01~ |
09407-12404-000 |
US $2.08 |
||
|
37
|
37
39161-79E00-000
COVER,CLOCK HOLE
1995-10-01~ |
39161-79E00-000 |
— | ||
