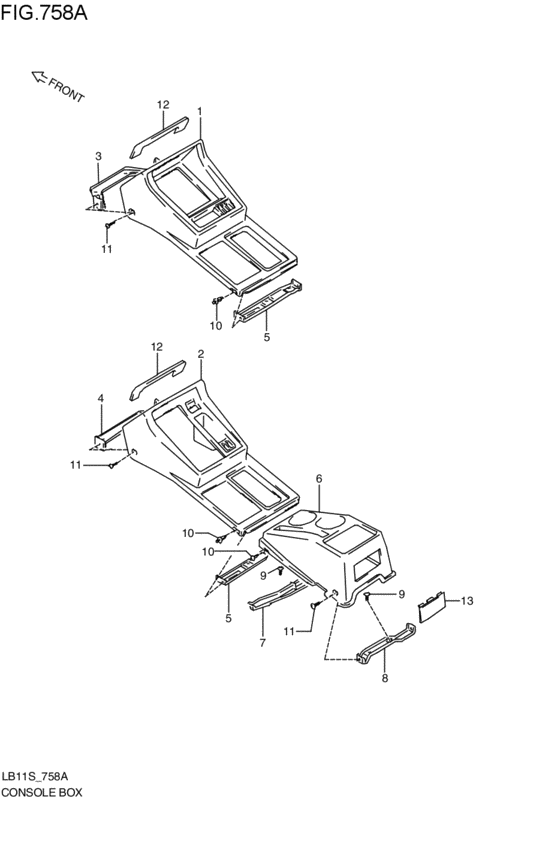

console box (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73911-62A20-5ES BOX,CENTER CONSOLE FRブラック; 5MT; 1995-10-01~ |
73911-62A20-5ES |
US $127.68 |
||
|
3
|
3
73931-60A00-000 BRACKET,CTR CONSOLE FR NO.15MT; 1995-10-01~ |
73931-60A00-000 |
US $10.52 |
||
|
5
|
5
73932-60A10-000 BRACKET,CTR CONSOLE FR NO.21995-10-01~ |
73932-60A10-000 |
US $16.80 |
||
|
6
|
6
73921-79E00-5ES
BOX,CENTER CONSOLE RR
ブラック; 1995-10-01~ |
73921-79E00-5ES |
— | ||
|
7
|
7
73933-56B00-000 BRACKET,CTR CONSOLE RR NO.11995-10-01~ |
73933-56B00-000 |
US $16.80 |
||
|
8
|
8
73934-60A00-000 BRACKET,CTR CONSOLE RR NO.21995-10-01~ |
73934-60A00-000 |
US $10.40 |
||
|
9
|
9
03241-06123-000
Screw
1995-10-01~ |
03241-06123-000 |
— | ||
| replacement | |||||
|
9
|
9
03241-0612A-000 SCREW1995-10-01~ |
03241-0612A-000 |
US $0.80 |
||
|
10
|
10
09409-06314-5PK CLIP(BLACK)ブラック; 1995-10-01~ |
09409-06314-5PK |
from US $1.46 |
||
|
11
|
11
03241-05123-000
Screw
1995-10-01~ |
03241-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0512A-000 SCREW1995-10-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
12
|
12
73915-60A00-000 CUSHION,CENTER CONSOLE1995-10-01~ |
73915-60A00-000 |
US $20 |
||
|
13
|
13
73924-79E00-5ES
CAP,CTR CONSOLE RR
ブラック; 1995-10-01~ |
73924-79E00-5ES |
— | ||
| replacement | |||||
|
13
|
13
73924-79E00-T01 CAP,CTR CONSOLE RRブラック; 1995-10-01~ |
73924-79E00-T01 |
US $19.20 |
||
