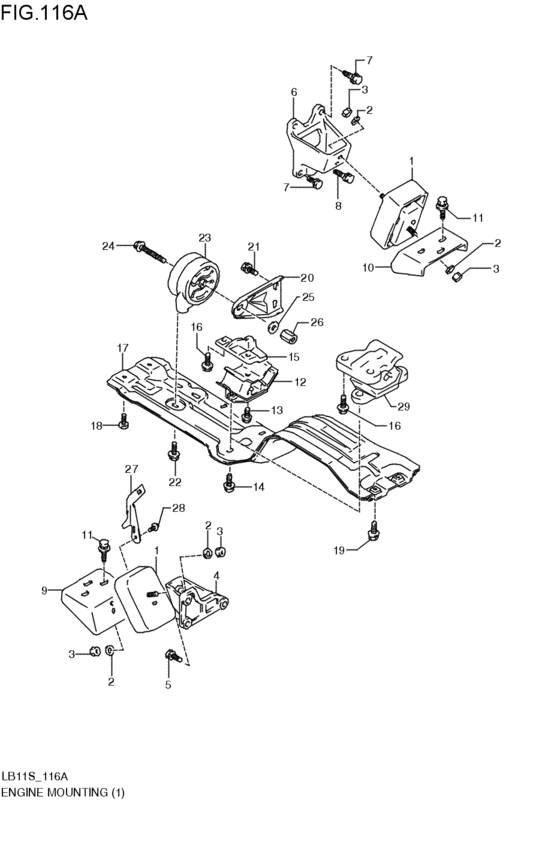

engine mounting (5MT; 1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-58B10-000 MOUNTING,ENG FR5MT; 1995-10-01~ |
11610-58B10-000 |
US $179.20 |
||
|
2
|
2
08321-01103-000
Washer
5MT; 1995-10-01~ |
08321-01103-000 |
— | ||
| replacements | |||||
|
2
|
2
08321-0110B-000 WASHER,LOCKWasher, knuckle end 5MT; 1995-10-01~ |
08321-0110B-000 |
from US $0.80 |
||
|
2
|
2
08321-0110A-000 WASHER,LOCK5MT; 1995-10-01~ |
08321-0110A-000 |
from US $0.80 |
||
|
3
|
3
08310-00103-000
Nut
5MT; 1995-10-01~ |
08310-00103-000 |
— | ||
| replacements | |||||
|
3
|
3
08310-0010B-000 NUT5MT; 1995-10-01~ |
08310-0010B-000 |
from US $0.80 |
||
|
3
|
3
08310-0010A-000 NUT5MT; 1995-10-01~ |
08310-0010A-000 |
from US $0.80 |
||
|
4
|
4
11641-56B02-000 BRACKET,ENG FR MTG,R5MT; 1995-10-01~ |
11641-56B02-000 |
US $70.29 |
||
|
5
|
5
01570-10303-000
Bolt
5MT; 1995-10-01~ |
01570-10303-000 |
— | ||
| replacement | |||||
|
5
|
5
01570-1030A-000 Bolt5MT; 1995-10-01~ |
01570-1030A-000 |
from US $1.12 |
||
|
6
|
6
11651-57B00-000 BRACKET,ENG FR MTG,L5MT; 1995-10-01~ |
11651-57B00-000 |
US $74.34 |
||
|
7
|
7
01570-10303-000
Bolt
5MT; 1995-10-01~ |
01570-10303-000 |
— | ||
| replacement | |||||
|
7
|
7
01570-1030A-000 Bolt5MT; 1995-10-01~ |
01570-1030A-000 |
from US $1.12 |
||
|
8
|
8
01570-10403-000
Bolt, upper
5MT; 1995-10-01~ |
01570-10403-000 |
— | ||
| replacement | |||||
|
8
|
8
01570-1040A-000 Bolt5MT; 1995-10-01~ |
01570-1040A-000 |
US $1.06 |
||
|
9
|
9
11661-56B00-000 BRACKET,ENG FR MTG FRAME SIDE5MT; 1995-10-01~ |
11661-56B00-000 |
US $17.22 |
||
|
10
|
10
11661-57B00-000 BRACKET,ENG FR MTG FRAME SIDE5MT; 1995-10-01~ |
11661-57B00-000 |
US $18.77 |
||
|
11
|
11
09118-10052-000 BOLT(10X30)5MT; 1995-10-01~ |
09118-10052-000 |
from US $1.44 |
||
|
12
|
12
11710-60A01-000 MOUNTING,ENG RR5MT; 1995-10-01~1996-02-01 |
11710-60A01-000 |
US $217.60 |
||
|
13
|
13
01560-10203-000
Bolt
5MT; 1995-10-01~1996-02-01 |
01560-10203-000 |
— | ||
| replacement | |||||
|
13
|
13
01560-1020A-000 Bolt5MT; 1995-10-01~1996-02-01 |
01560-1020A-000 |
US $17.30 |
||
|
14
|
14
01560-10163-000
ボルト
5MT; 1995-10-01~ |
01560-10163-000 |
— | ||
| replacement | |||||
|
14
|
14
01560-1016A-000 Bolt5MT; 1995-10-01~ |
01560-1016A-000 |
US $0.96 |
||
|
15
|
15
11741-60A01-000 BRACKET,ENG RR MTG5MT; 1995-10-01~1996-02-01 |
11741-60A01-000 |
US $47.47 |
||
|
16
|
16
01560-10303-000
ボルト
5MT; 1995-10-01~ |
01560-10303-000 |
— | ||
| replacement | |||||
|
16
|
16
01560-1030A-000 Bolt5MT; 1995-10-01~ |
01560-1030A-000 |
US $1.12 |
||
|
17
|
17
11730-58B23-000 MEMBER,ENG RR MTG5MT; 1995-10-01~ |
11730-58B23-000 |
US $252.80 |
||
|
18
|
18
01580-10253-000
ボルト
5MT; 1995-10-01~ |
01580-10253-000 |
— | ||
| replacement | |||||
|
18
|
18
01580-1025A-000 Bolt5MT; 1995-10-01~ |
01580-1025A-000 |
US $19.50 |
||
|
19
|
19
01580-10253-000
ボルト
5MT; 1995-10-01~ |
01580-10253-000 |
— | ||
| replacement | |||||
|
19
|
19
01580-1025A-000 Bolt5MT; 1995-10-01~ |
01580-1025A-000 |
US $19.50 |
||
|
20
|
20
11755-60A01-000 BRACKET,TORQUE STOPPER5MT; 1995-10-01~ |
11755-60A01-000 |
US $11.89 |
||
|
21
|
21
01560-10203-000
Bolt
5MT; 1995-10-01~ |
01560-10203-000 |
— | ||
| replacement | |||||
|
21
|
21
01560-1020A-000 Bolt5MT; 1995-10-01~ |
01560-1020A-000 |
US $17.30 |
||
|
22
|
22
01560-10163-000
ボルト
5MT; 1995-10-01~ |
01560-10163-000 |
— | ||
| replacement | |||||
|
22
|
22
01560-1016A-000 Bolt5MT; 1995-10-01~ |
01560-1016A-000 |
US $0.96 |
||
|
23
|
23
11910-60A03-000 BUSH,TORQUE STOPPER5MT; 1995-10-01~ |
11910-60A03-000 |
US $132 |
||
|
24
|
24
01560-10803-000
Bolt
5MT; 1995-10-01~ |
01560-10803-000 |
— | ||
| replacement | |||||
|
24
|
24
01560-1080A-000 Bolt5MT; 1995-10-01~ |
01560-1080A-000 |
US $21.70 |
||
|
25
|
25
09160-10119-000 WASHER(10.5X22X1.6)Washer, wheel set 5MT; 1995-10-01~ |
09160-10119-000 |
from US $0.96 |
||
| replacement | |||||
|
25
|
25
09160-10143-000 WASHER(10.5X22X1.6)5MT; 1995-10-01~ |
09160-10143-000 |
from US $0.91 |
||
|
26
|
26
09140-10040-000 NUT5MT; 1995-10-01~ |
09140-10040-000 |
US $32.40 |
||
|
27
|
27
18568-56B01-000 BRACKET,CANISTER HOSE CLAMP5MT; 1995-10-01~ |
18568-56B01-000 |
US $4.60 |
||
|
28
|
28
02162-06123-000
Bolt (6x12)
5MT; 1995-10-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
28
|
28
02162-0612B-000 SCREWBolt 5MT; 1995-10-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
28
|
28
02162-0612A-000 SCREWBolt, bracket 5MT; 1995-10-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
29
|
29
11710-77E00-000 MOUNTING,ENG RR5MT; 1996-02-01~ |
11710-77E00-000 |
US $69.55 |
||
