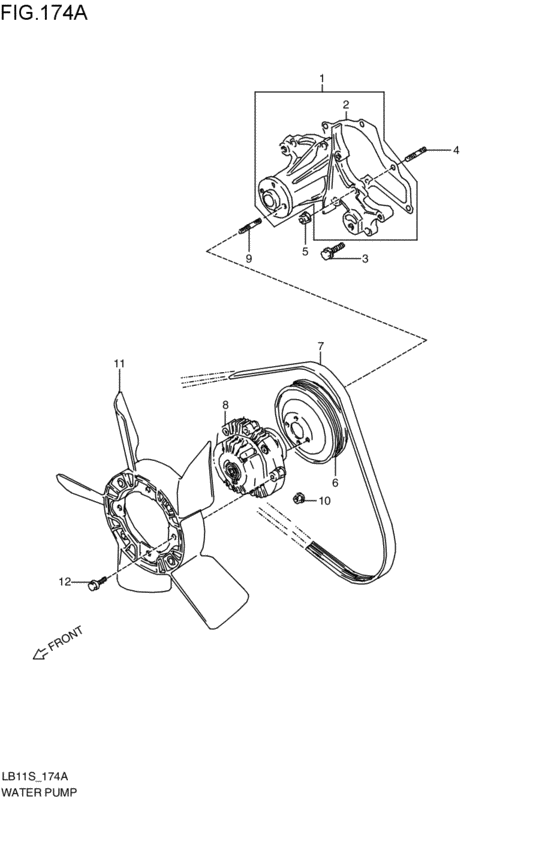

water pump (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-60815-000
PUMP, WATER
1995-10-01~ |
17400-60815-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-60816-000 Water Pump1995-10-01~ |
17400-60816-000 |
from US $109.96 |
||
|
2
|
2
17431-60A00-000 GASKET,WATER PUMP1995-10-01~ |
17431-60A00-000 |
from US $3.80 |
||
|
3
|
3
09103-06066-000 BOLT(6X23)Bolt (6x23) 1995-10-01~ |
09103-06066-000 |
US $0.96 |
||
|
4
|
4
01421-06203-000
Stud bolt (l:20)(green)
1995-10-01~ |
01421-06203-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0620A-000 BOLT,STUD1995-10-01~ |
01421-0620A-000 |
from US $1.12 |
||
|
5
|
5
08316-10063-000
Nut
1995-10-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT1995-10-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
17511-57B00-000 PULLEY,WATER PUMP1995-10-01~ |
17511-57B00-000 |
from US $22.70 |
||
|
7
|
7
17521-61A00-000 BELT,WATER PUMP 4PK8001995-10-01~ |
17521-61A00-000 |
from US $31.77 |
||
| replacement | |||||
|
7
|
7
17521-61A00-CDN
Belt,wtr pump 4pk800
1995-10-01~ |
17521-61A00-CDN |
— | ||
|
8
|
8
17120-57B01-000 CLUTCH ASSY,FAN1995-10-01~ |
17120-57B01-000 |
US $211.60 |
||
|
9
|
9
01411-06203-000
New Genuine Part
1995-10-01~ |
01411-06203-000 |
— | ||
| replacement | |||||
|
9
|
9
01411-0620A-000 BOLT,STUD1995-10-01~ |
01411-0620A-000 |
US $0.91 |
||
|
10
|
10
08316-10063-000
Nut
1995-10-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUT1995-10-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
17110-60A00-000 FAN,ENG COOLING1995-10-01~ |
17110-60A00-000 |
US $56.67 |
||
|
12
|
12
01550-06203-000
Bolt
1995-10-01~ |
01550-06203-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0620B-000 BOLTBolt, inspection cap 1995-10-01~ |
01550-0620B-000 |
from US $0.76 |
||
