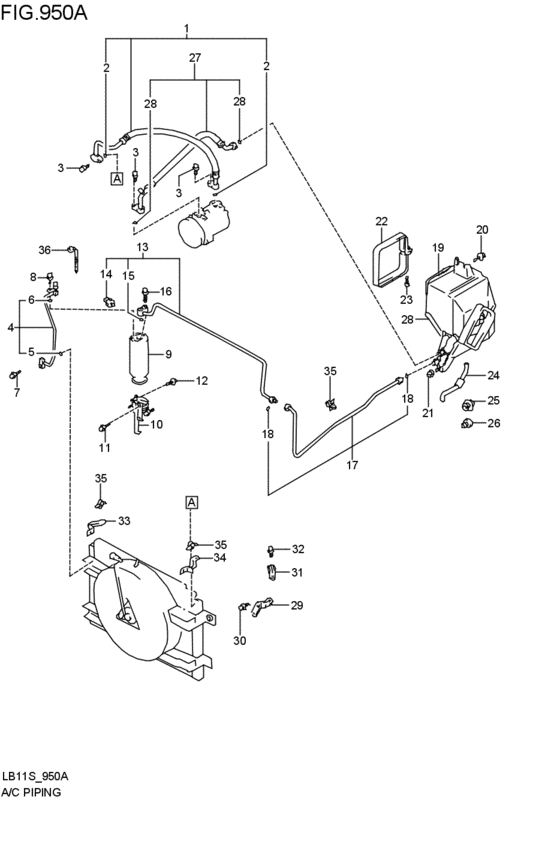

air-conditioner piping (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95720-79E00-000
ホース,ディスチャージ
1995-10-01~ |
95720-79E00-000 |
— | ||
|
2
|
2
95895-50G00-000 O-RING,D:2.4 ID:10.81995-10-01~ |
95895-50G00-000 |
US $1.28 |
||
|
3
|
3
01550-06253-000
Bolt (6x25)
1995-10-01~ |
01550-06253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0625B-000 BOLTBolt, head cover 1995-10-01~ |
01550-0625B-000 |
from US $0.91 |
||
|
3
|
3
01550-0625A-000 BOLTBolt 1995-10-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
4
|
4
95733-79E00-000
パイプ,レシーバ,インレット
1995-10-01~ |
95733-79E00-000 |
— | ||
|
5
|
5
95895-50G00-000 O-RING,D:2.4 ID:10.81995-10-01~ |
95895-50G00-000 |
US $1.28 |
||
|
6
|
6
95891-50G00-000 O-RING,D:1.8 ID:6.71995-10-01~ |
95891-50G00-000 |
from US $0.96 |
||
|
7
|
7
01550-06253-000
Bolt (6x25)
1995-10-01~ |
01550-06253-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0625B-000 BOLTBolt, head cover 1995-10-01~ |
01550-0625B-000 |
from US $0.91 |
||
|
7
|
7
01550-0625A-000 BOLTBolt 1995-10-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
8
|
8
01550-06203-000
Bolt
1995-10-01~ |
01550-06203-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-0620B-000 BOLTBolt, inspection cap 1995-10-01~ |
01550-0620B-000 |
from US $0.76 |
||
|
9
|
9
95330-72B00-000 RECEIVER DRYER1995-10-01~ |
95330-72B00-000 |
US $107.24 |
||
|
10
|
10
95930-67A00-000
BRACKET
1995-10-01~ |
95930-67A00-000 |
— | ||
|
11
|
11
01550-06123-000
Bolt
1995-10-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BOLTBolt, clamp 1995-10-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BOLT1995-10-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
01550-06203-000
Bolt
1995-10-01~ |
01550-06203-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0620B-000 BOLTBolt, inspection cap 1995-10-01~ |
01550-0620B-000 |
from US $0.76 |
||
|
13
|
13
95734-67A00-000
Pipe,rcvr dryer outlet
1995-10-01~ |
95734-67A00-000 |
— | ||
| replacement | |||||
|
13
|
13
95734-67A01-000 PIPE,RECEIVER DRYER OUTLET1995-10-01~ |
95734-67A01-000 |
US $160.45 |
||
|
14
|
14
95526-50G10-000
Switch, dual pressure
1995-10-01~ |
95526-50G10-000 |
— | ||
| replacement | |||||
|
14
|
14
95526-50G30-000 SWITCH,DUAL PRESSURE1995-10-01~ |
95526-50G30-000 |
US $44.84 |
||
|
15
|
15
95891-50G00-000 O-RING,D:1.8 ID:6.71995-10-01~ |
95891-50G00-000 |
from US $0.96 |
||
|
16
|
16
01550-06353-000
Bolt
1995-10-01~ |
01550-06353-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0635B-000 Bolt1995-10-01~ |
01550-0635B-000 |
from US $0.91 |
||
|
16
|
16
01550-0635A-000 Bolt1995-10-01~ |
01550-0635A-000 |
from US $0.96 |
||
|
17
|
17
95732-67A01-000 PIPE,LIQUID1995-10-01~ |
95732-67A01-000 |
US $17.60 |
||
|
18
|
18
95891-50G00-000 O-RING,D:1.8 ID:6.71995-10-01~ |
95891-50G00-000 |
from US $0.96 |
||
|
19
|
19
95400-67A00-000
EVAPORATOR UNIT
1995-10-01~ |
95400-67A00-000 |
— | ||
|
20
|
20
01550-06123-000
Bolt
1995-10-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0612B-000 BOLTBolt, clamp 1995-10-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
20
|
20
01550-0612A-000 BOLT1995-10-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
21
|
21
08316-10083-000
Nut
1995-10-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1008B-000 NUT1995-10-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
22
|
22
95779-60A00-000 CLAMP,EVAP1995-10-01~ |
95779-60A00-000 |
US $17.15 |
||
|
23
|
23
02112-35303-000
Screw
1995-10-01~ |
02112-35303-000 |
— | ||
| replacement | |||||
|
23
|
23
02112-3530A-000 SCREW1995-10-01~ |
02112-3530A-000 |
from US $0.91 |
||
|
24
|
24
95480-67A00-000
HOSE,DRAIN
1995-10-01~ |
95480-67A00-000 |
— | ||
|
25
|
25
74813-82000-000 GROMMET,CAR AIR CON,NO.11995-10-01~ |
74813-82000-000 |
US $6.72 |
||
| replacement | |||||
|
25
|
25
74814-82000-000 GROMMET,CAR AIR CON,NO.21995-10-01~ |
74814-82000-000 |
US $6.08 |
||
|
26
|
26
74814-82000-000 GROMMET,CAR AIR CON,NO.21995-10-01~ |
74814-82000-000 |
US $6.08 |
||
|
27
|
27
95710-67A10-000 HOSE,SUCTION1995-10-01~ |
95710-67A10-000 |
US $181.79 |
||
|
28
|
28
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) 1995-10-01~ |
95896-50G00-000 |
US $1.28 |
||
|
29
|
29
95772-57B01-000
STAY
1995-10-01~ |
95772-57B01-000 |
— | ||
|
30
|
30
01550-06123-000
Bolt
1995-10-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0612B-000 BOLTBolt, clamp 1995-10-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
30
|
30
01550-0612A-000 BOLT1995-10-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
31
|
31
95772-70C51-000 CLAMP,SUCT HOSE1995-10-01~ |
95772-70C51-000 |
US $9.83 |
||
|
32
|
32
09122-86003-000 SCREW(6X16)Bolt (6x16) 1995-10-01~ |
09122-86003-000 |
US $11.80 |
||
|
33
|
33
95781-60A00-000
Stay,rcvr dryer outlet pipe,r
1995-10-01~ |
95781-60A00-000 |
— | ||
|
34
|
34
95782-60A00-000
Stay,rcvr dryer outlet pipe,l
1995-10-01~ |
95782-60A00-000 |
— | ||
|
35
|
35
09403-08406-000 CLAMP1995-10-01~ |
09403-08406-000 |
from US $1.44 |
||
|
36
|
36
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap 1995-10-01~ |
09407-14403-000 |
from US $2.08 |
||
