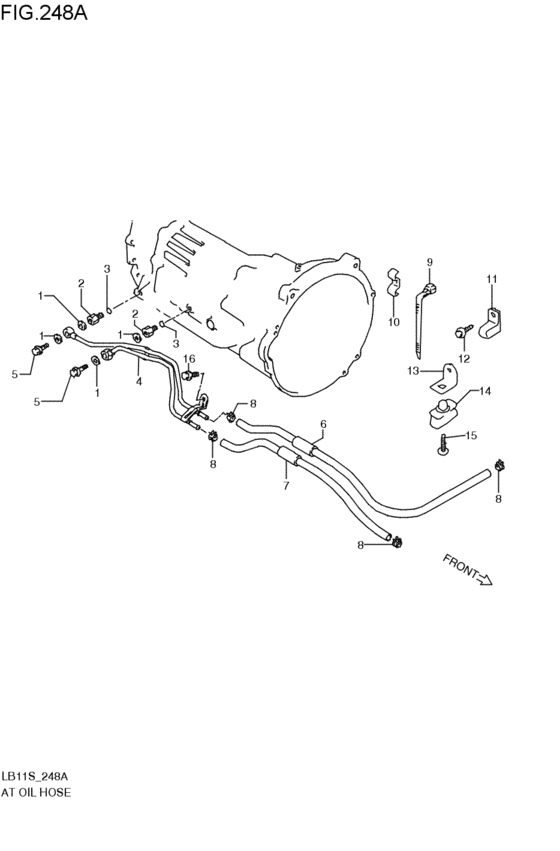

at - oil hose (4AT; 1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union 4AT; 1995-10-01~ |
09168-14015-000 |
from US $1.17 |
||
|
2
|
2
24743-57B10-000 UNION,OIL4AT; 1995-10-01~ |
24743-57B10-000 |
US $46.36 |
||
|
3
|
3
29737-57B00-000 O-RING,OIL PIPE4AT; 1995-10-01~ |
29737-57B00-000 |
from US $2.28 |
||
|
4
|
4
22910-77EA0-000
パイプ,オイル
4AT; 1995-10-01~ |
22910-77EA0-000 |
— | ||
| replacement | |||||
|
4
|
4
22910-77EA1-000 PIPE,OIL4AT; 1995-10-01~ |
22910-77EA1-000 |
US $116 |
||
|
5
|
5
09360-14012-000 BOLT,14X27Bolt, union (14x27) 4AT; 1995-10-01~ |
09360-14012-000 |
from US $6.88 |
||
|
6
|
6
22931-57B10-000
Hose,oil inlet
4AT; 1995-10-01~ |
22931-57B10-000 |
— | ||
|
7
|
7
22932-57B10-000
Hose,oil outlet
4AT; 1995-10-01~ |
22932-57B10-000 |
— | ||
|
8
|
8
09401-13415-000
クランプ
4AT; 1995-10-01~ |
09401-13415-000 |
— | ||
| replacement | |||||
|
8
|
8
09401-13419-000 CLIP4AT; 1995-10-01~ |
09401-13419-000 |
from US $1.60 |
||
|
9
|
9
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap 4AT; 1995-10-01~ |
09407-14403-000 |
from US $2.08 |
||
|
10
|
10
24899-85500-000
PLATE,OIL PIPE
4AT; 1995-10-01~ |
24899-85500-000 |
— | ||
|
11
|
11
09404-10418-000
CLAMP(L:137)
4AT; 1995-10-01~ |
09404-10418-000 |
— | ||
|
12
|
12
01550-10203-000
Bolt
4AT; 1995-10-01~ |
01550-10203-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-1020A-000 BOLTBolt, bal sprocket 4AT; 1995-10-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
13
|
13
22935-61A00-000
Bracket,oil hose clamp,no.2
4AT; 1995-10-01~ |
22935-61A00-000 |
— | ||
| replacement | |||||
|
13
|
13
22935-61A10-000 BRACKET,OIL HOSE CLAMP,NO.24AT; 1995-10-01~ |
22935-61A10-000 |
US $3.53 |
||
|
14
|
14
09403-14309-000 CLAMP4AT; 1995-10-01~ |
09403-14309-000 |
US $4.32 |
||
|
15
|
15
02162-06123-000
Bolt (6x12)
4AT; 1995-10-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02162-0612B-000 SCREWBolt 4AT; 1995-10-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket 4AT; 1995-10-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
16
|
16
01550-06103-000
Bolt, front
4AT; 1995-10-01~ |
01550-06103-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0610B-000 BoltBolt 4AT; 1995-10-01~ |
01550-0610B-000 |
from US $0.80 |
||
|
16
|
16
01550-0610A-000 BOLT4AT; 1995-10-01~ |
01550-0610A-000 |
from US $0.80 |
||
