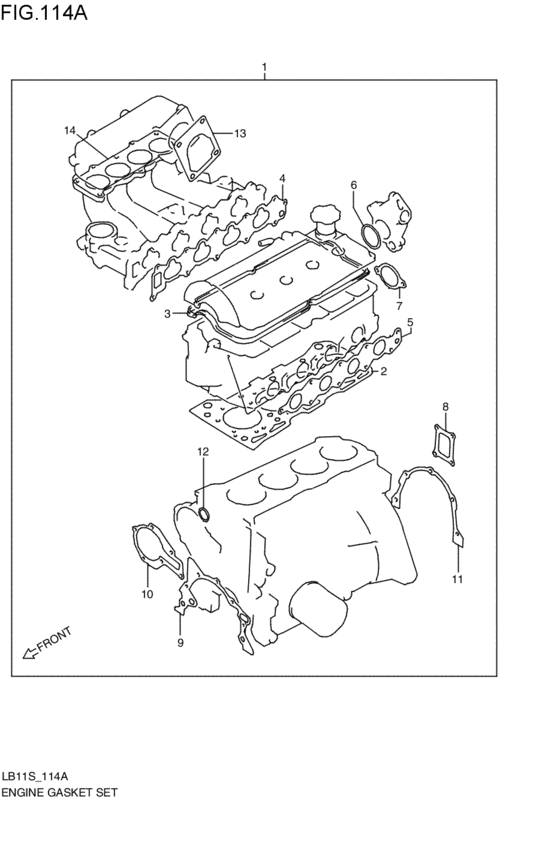

engine gasket set (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-58829-000
ガスケットセット,エンジン
1995-10-01~ |
11400-58829-000 |
— | ||
| replacement | |||||
|
1
|
1
11400-58832-000 GASKET SET,ENGINE1995-10-01~ |
11400-58832-000 |
US $232 |
||
|
2
|
2
11141-71C00-000 GASKET,CYL HEAD1995-10-01~ |
11141-71C00-000 |
US $115.52 |
||
|
3
|
3
11189-71C00-000 GASKET,CYL HEAD COVERGasket, cylinder head cover 1995-10-01~ |
11189-71C00-000 |
US $21.60 |
||
|
4
|
4
13119-57B00-000 GASKET,INTK MANFGasket, intake manifold 1995-10-01~ |
13119-57B00-000 |
US $15.52 |
||
|
5
|
5
14140-58B01-000
ガスケット,エキゾーストマニホールド
1995-10-01~ |
14140-58B01-000 |
— | ||
| replacement | |||||
|
5
|
5
14140-52G00-000 Gasket, exhaust manifold1995-10-01~ |
14140-52G00-000 |
US $26.40 |
||
|
6
|
6
11162-71C00-000
Oリング,ケース
1995-10-01~ |
11162-71C00-000 |
— | ||
| replacement | |||||
|
6
|
6
11162-71C10-000 O-RING,CASEO ring, dli sensor case 1995-10-01~ |
11162-71C10-000 |
US $2.24 |
||
|
7
|
7
17699-60B02-000 GASKET,THERMO CASE1995-10-01~ |
17699-60B02-000 |
US $5.92 |
||
|
8
|
8
11229-60A00-000 GASKET,CYL BLOCK PLATE1995-10-01~ |
11229-60A00-000 |
US $13.44 |
||
|
9
|
9
16119-60A04-000
Gasket
1995-10-01~ |
16119-60A04-000 |
— | ||
| replacement | |||||
|
9
|
9
16119-60A05-000 GASKET,OIL PUMP1995-10-01~ |
16119-60A05-000 |
US $16.80 |
||
|
10
|
10
17431-60A00-000 GASKET,WATER PUMP1995-10-01~ |
17431-60A00-000 |
US $4.64 |
||
|
11
|
11
11349-60A01-000 GASKET,OIL SEAL HSGGasket, oil seal housing 1995-10-01~ |
11349-60A01-000 |
US $19.20 |
||
|
12
|
12
09280-28008-000 O RING(D:3.5,ID:27.7)1995-10-01~ |
09280-28008-000 |
US $1.28 |
||
|
13
|
13
13421-58B00-000 GASKET,THROTTLE BODY1995-10-01~ |
13421-58B00-000 |
US $2.72 |
||
|
14
|
14
13122-58B00-000
GASKET,SURGE TANK
1995-10-01~ |
13122-58B00-000 |
— | ||
