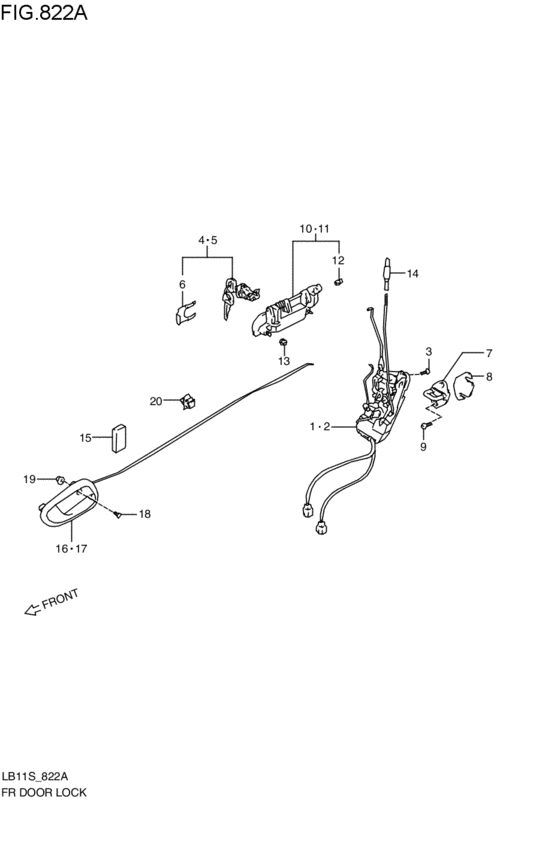

front door lock (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-79E00-000 LATCH ASSY,FR DR,R1995-10-01~ |
82201-79E00-000 |
US $325.68 |
||
|
2
|
2
82202-79E00-000
Latch assy,front door,l
1995-10-01~ |
82202-79E00-000 |
— | ||
|
3
|
3
09137-06024-000 SCREW(6X18)1995-10-01~ |
09137-06024-000 |
US $1.28 |
||
|
4
|
4
82201-60850-000 CYLINDER,FR DR LOCKCylinder, front door lock rh 1995-10-01~ |
82201-60850-000 |
US $95 |
||
|
5
|
5
82201-60860-000 CYLINDER,FR DR LOCKCylinder, front door lock lh 1995-10-01~ |
82201-60860-000 |
US $95 |
||
|
6
|
6
82291-70B00-000 RETAINER,CYLINDER1995-10-01~ |
82291-70B00-000 |
US $3.31 |
||
|
7
|
7
82610-60A01-000 STRIKER,FR DOOR LATCH1995-10-01~ |
82610-60A01-000 |
US $21.60 |
||
|
8
|
8
78199-78000-000 SPACER,DOOR LOCK STRIKER1995-10-01~ |
78199-78000-000 |
US $1.60 |
||
|
9
|
9
09137-08011-000 SCREW(8X18)1995-10-01~ |
09137-08011-000 |
US $1.44 |
||
|
10
|
10
82801-74F00-5PK HANDLE,SIDE DR OUT,Rブラック; 1995-10-01~ |
82801-74F00-5PK |
US $53.73 |
||
|
11
|
11
82802-74F00-5PK HANDLE,SIDE DR OUT,Lブラック; 1995-10-01~ |
82802-74F00-5PK |
US $53.73 |
||
|
12
|
12
82816-74F00-000 SNAP,ADJUSTING JOINT1995-10-01~ |
82816-74F00-000 |
US $2.13 |
||
|
13
|
13
08316-20063-000
Nut
1995-10-01~ |
08316-20063-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-2006A-000 NUT1995-10-01~ |
08316-2006A-000 |
from US $0.76 |
||
|
14
|
14
82982-79E00-5PK
KNOB,DOOR INSIDE LOCK
ブラック; 1995-10-01~ |
82982-79E00-5PK |
— | ||
|
15
|
15
77591-75000-000 PAD1995-10-01~ |
77591-75000-000 |
US $2.28 |
||
|
16
|
16
83101-79E01-5ES
Handle assy,fr door inside,r
ブラック; 1995-10-01~ |
83101-79E01-5ES |
— | ||
|
17
|
17
83102-79E01-5ES
HANDLE ASSY,FR DOOR INSIDE,L
ブラック; 1995-10-01~ |
83102-79E01-5ES |
— | ||
|
18
|
18
03121-05163-000
Screw
1995-10-01~ |
03121-05163-000 |
— | ||
| replacement | |||||
|
18
|
18
03121-0516A-000 SCREW1995-10-01~ |
03121-0516A-000 |
from US $0.80 |
||
|
19
|
19
09148-06007-000 NUT1995-10-01~ |
09148-06007-000 |
US $0.91 |
||
|
20
|
20
83271-63D10-000 CLIP,DR R/CON ROD1995-10-01~ |
83271-63D10-000 |
US $1.60 |
||
