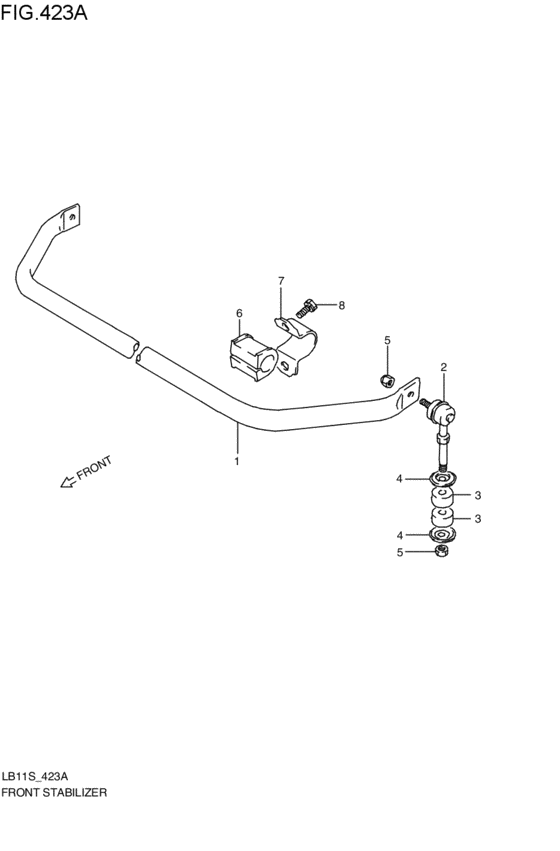

front stabilizer (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42311-60A00-000 BAR,STABILIZER FRNHK; 1995-10-01~ |
42311-60A00-000 |
US $170.02 |
||
|
2
|
2
42420-60A00-000
ジョイント,スタビライザボール
1995-10-01~ |
42420-60A00-000 |
— | ||
| replacement | |||||
|
2
|
2
42420-65D00-000 JOINT,STAB BALL1995-10-01~ |
42420-65D00-000 |
US $57.60 |
||
|
3
|
3
09320-10024-000 CUSHION1995-10-01~ |
09320-10024-000 |
US $5.92 |
||
|
4
|
4
09165-10002-000 WASHER1995-10-01~ |
09165-10002-000 |
US $2.08 |
||
|
5
|
5
09159-10056-000 NUT1995-10-01~ |
09159-10056-000 |
US $1.12 |
||
|
6
|
6
42412-60A00-000 BUSHING,STAB BAR MOUNT1995-10-01~ |
42412-60A00-000 |
US $13.60 |
||
|
7
|
7
42411-60A00-000 BRACKET,STABILIZER BAR MOUNT1995-10-01~ |
42411-60A00-000 |
US $7.76 |
||
|
8
|
8
01570-08253-000
Bolt, upper
1995-10-01~ |
01570-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01570-0825B-000 BOLT1995-10-01~ |
01570-0825B-000 |
US $1.12 |
||
|
8
|
8
01570-0825A-000 BOLT1995-10-01~ |
01570-0825A-000 |
from US $1.06 |
||
