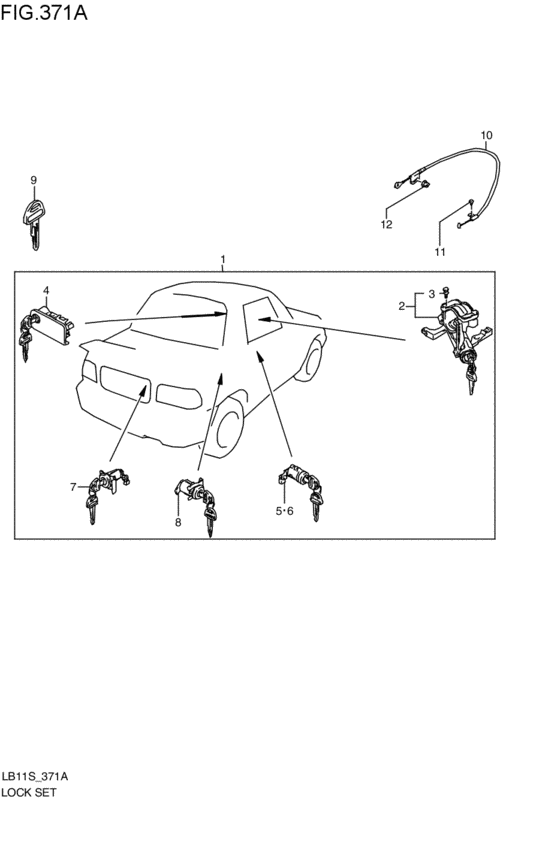

lock set (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37100-79821-5ES
ロックセット
ブラック; 4AT; 1995-10-01~ |
37100-79821-5ES |
— | ||
| replacement | |||||
|
1
|
1
37100-79822-5ES
New Genuine Part
ブラック; 4AT; 1995-10-01~ |
37100-79822-5ES |
— | ||
|
2
|
2
37100-77870-000
ロックアッシ,ステアリング
4AT; 1995-10-01~ |
37100-77870-000 |
— | ||
| replacement | |||||
|
2
|
2
37100-77871-000 LOCK ASSY,STEERING4AT; 1995-10-01~ |
37100-77871-000 |
US $174.06 |
||
|
3
|
3
37152-84100-000
Bolt
1995-10-01~ |
37152-84100-000 |
— | ||
| replacement | |||||
|
3
|
3
37152-84G00-000 BOLT, STRG LOCK1995-10-01~ |
37152-84G00-000 |
from US $2.98 |
||
|
4
|
4
73430-77810-5ES
LOCK,GLOVE BOX
ブラック; 1995-10-01~ |
73430-77810-5ES |
— | ||
|
5
|
5
82201-60850-000 CYLINDER,FR DR LOCKCylinder, front door lock rh 1995-10-01~ |
82201-60850-000 |
US $95 |
||
|
6
|
6
82201-60860-000 CYLINDER,FR DR LOCKCylinder, front door lock lh 1995-10-01~ |
82201-60860-000 |
US $95 |
||
|
7
|
7
82500-50882-000
CYLINDER,TRUNK LID LOCK
1995-10-01~ |
82500-50882-000 |
— | ||
|
8
|
8
89300-60802-000 CYLINDER,FUEL LID LOCKCylinder, fuel lid lock 1995-10-01~ |
89300-60802-000 |
US $76.80 |
||
|
9
|
9
37145-60A00-000 KEY,BLANKOPT; 1995-10-01~ |
37145-60A00-000 |
US $26.40 |
||
|
10
|
10
28551-77EA0-000
Cable comp,key interlock
4AT; 1995-10-01~ |
28551-77EA0-000 |
— | ||
|
11
|
11
09125-05061-000 SCREW(5X8)4AT; 1995-10-01~ |
09125-05061-000 |
US $9.60 |
||
|
12
|
12
08316-10083-000
Nut
4AT; 1995-10-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1008B-000 NUT4AT; 1995-10-01~ |
08316-1008B-000 |
from US $0.76 |
||
