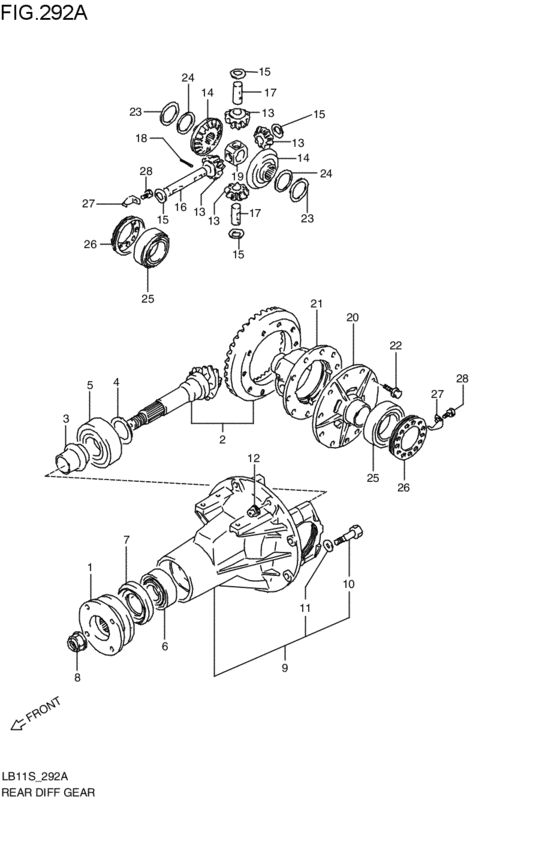

リヤデファレンシャルギヤ (デファレンシャルキャリアセット; 1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-56B01-000 FLANGE,UNIVERSAL JOINT1995-10-01~ |
27110-56B01-000 |
US $131.20 |
||
|
2
|
2
27300-61831-000
BEVEL PINION&GEAR SET
1995-10-01~ |
27300-61831-000 |
— | ||
|
3
|
3
27315-60A01-000 SPACER,DRIVE BEVEL PINION1995-10-01~ |
27315-60A01-000 |
US $28 |
||
|
4
|
4
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) 1995-10-01~ |
09181-35101-000 |
from US $1.35 |
||
|
4
|
4
09181-35117-000 SHIM(35X42X1.12)1995-10-01~ |
09181-35117-000 |
US $21.70 |
||
|
4
|
4
09181-35119-000 SHIM(35X42X1.18)1995-10-01~ |
09181-35119-000 |
from US $1.82 |
||
|
4
|
4
09181-35122-000 SHIM(35X42X1.24)1995-10-01~ |
09181-35122-000 |
US $21.70 |
||
|
4
|
4
09181-35125-000 SHIM(35X42X1.3)1995-10-01~ |
09181-35125-000 |
US $21.70 |
||
|
5
|
5
09265-35002-000
ベアリング,35X80X22.75
1995-10-01~ |
09265-35002-000 |
— | ||
| replacement | |||||
|
5
|
5
09265-35011-000 BEARING(35X80X22.75)1995-10-01~ |
09265-35011-000 |
US $40 |
||
|
6
|
6
09265-30010-000 BEARING(30X72X20.75)1995-10-01~ |
09265-30010-000 |
US $45.60 |
||
|
7
|
7
09283-40027-000 SEAL,OIL(40x72x11x18)1995-10-01~ |
09283-40027-000 |
from US $7.25 |
||
|
8
|
8
27375-60A00-000 NUT,UNIVERSAL JOINT1995-10-01~ |
27375-60A00-000 |
from US $5.11 |
||
|
9
|
9
27450-60850-000 CARRIER SET,DIFF1995-10-01~ |
27450-60850-000 |
US $397.44 |
||
|
10
|
10
09111-12010-000 BOLT(12X58)1995-10-01~ |
09111-12010-000 |
US $2.43 |
||
|
11
|
11
08321-01123-000
Washer
1995-10-01~ |
08321-01123-000 |
— | ||
| replacement | |||||
|
11
|
11
08321-0112A-000 WASHER,LOCK1995-10-01~ |
08321-0112A-000 |
from US $0.76 |
||
|
12
|
12
09159-10091-000 NUT1995-10-01~ |
09159-10091-000 |
US $2.88 |
||
|
13
|
13
27331-83020-000 PINION,DIFFERENTIAL1995-10-01~ |
27331-83020-000 |
from US $31.39 |
||
| replacements | |||||
|
13
|
13
27331-76A20-000
PINION,DIFFERENTIAL
1995-10-01~ |
27331-76A20-000 |
— | ||
|
13
|
13
27331-76A21-000 Pinion,differential1995-10-01~ |
27331-76A21-000 |
from US $43.75 |
||
|
14
|
14
27341-83000-000 GEAR,DIFF1995-10-01~ |
27341-83000-000 |
from US $41.04 |
||
|
15
|
15
09164-15006-000 WASHER1995-10-01~ |
09164-15006-000 |
from US $1.58 |
||
|
16
|
16
27351-64B20-000 SHAFT,DIFF SIDE PINION1995-10-01~ |
27351-64B20-000 |
US $20.80 |
||
|
17
|
17
27355-77E00-000 SHAFT,DIFF PINION NO.21995-10-01~ |
27355-77E00-000 |
US $21.34 |
||
|
18
|
18
09205-05007-000 PIN,SPRING(5X36)1995-10-01~ |
09205-05007-000 |
US $1.76 |
||
|
19
|
19
27356-86081-000 JOINT,DIFF PINION SHAFT1995-10-01~ |
27356-86081-000 |
from US $25.29 |
||
|
20
|
20
27411-60A22-000 CASE,DIFF,L1995-10-01~ |
27411-60A22-000 |
US $114.45 |
||
|
21
|
21
27421-60A13-000 CASE,DIFF,R1995-10-01~ |
27421-60A13-000 |
US $195.04 |
||
|
22
|
22
09103-10184-000 BOLT(10X25)1995-10-01~ |
09103-10184-000 |
US $30.20 |
||
| replacement | |||||
|
22
|
22
09103-10253-000
Bolt,10x28
1995-10-01~ |
09103-10253-000 |
— | ||
|
23
|
23
09160-35013-000 WASHER(35X46X0.8)CHKK; 1995-10-01~ |
09160-35013-000 |
from US $2.74 |
||
|
23
|
23
09160-35014-000 WASHER(35X46X0.7)CHKK; 1995-10-01~ |
09160-35014-000 |
from US $2.74 |
||
|
23
|
23
09160-35015-000 WASHER(35X46X0.6)CHKK; 1995-10-01~ |
09160-35015-000 |
from US $3.13 |
||
|
24
|
24
09164-35003-000 WASHERCHKK; 1995-10-01~ |
09164-35003-000 |
from US $3.74 |
||
|
25
|
25
09265-45002-000 BEARING(45.2X80X19.84)1995-10-01~ |
09265-45002-000 |
from US $45.60 |
||
|
26
|
26
27461-83000-000 ADJUSTER,DIFF SIDE BEARING1995-10-01~ |
27461-83000-000 |
from US $7.52 |
||
|
27
|
27
27462-63202-000 PLATE,BEARING LOCK1995-10-01~ |
27462-63202-000 |
US $2.74 |
||
|
28
|
28
01550-08123-000
Bolt
1995-10-01~ |
01550-08123-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0812B-000 BoltPlug, drain 1995-10-01~ |
01550-0812B-000 |
from US $0.96 |
||
|
28
|
28
01550-0812A-000 BOLT1995-10-01~ |
01550-0812A-000 |
from US $0.91 |
||
