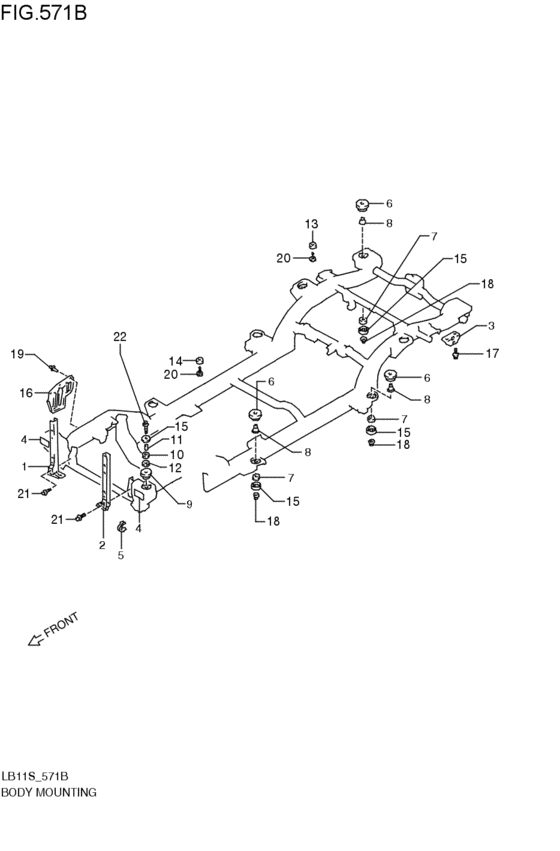

ボディマウンチング (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71410-60A01-000 STAY,RADIATOR,R1995-10-01~ |
71410-60A01-000 |
US $45.26 |
||
|
2
|
2
71420-60A11-000 STAY,RADIATOR,L1995-10-01~ |
71420-60A11-000 |
US $55.20 |
||
|
3
|
3
71451-60A00-000 HOOK,SHIPPING RR1995-10-01~ |
71451-60A00-000 |
US $10.27 |
||
|
4
|
4
71481-56B00-000 PROTECTOR,FRONT BUMPER MEMBER1995-10-01~ |
71481-56B00-000 |
US $3.02 |
||
|
5
|
5
71491-79E00-000
Protector,front towing hook
1995-10-01~ |
71491-79E00-000 |
— | ||
| replacement | |||||
|
5
|
5
71481-82CA0-000 PROTECTOR,REAR HOOK1995-10-01~ |
71481-82CA0-000 |
US $3.02 |
||
|
6
|
6
71511-60A00-000 CUSHION,BODY MTG NO.11995-10-01~ |
71511-60A00-000 |
from US $17.42 |
||
|
7
|
7
71512-60A10-000 CUSHION,BODY MTG NO.21995-10-01~ |
71512-60A10-000 |
US $13.60 |
||
|
8
|
8
71513-60A00-000 COLLAR,BODY MOUNTING1995-10-01~ |
71513-60A00-000 |
US $2.08 |
||
|
9
|
9
71514-60A00-000 CUSHION,BODY FR MTG NO.11995-10-01~ |
71514-60A00-000 |
US $16.67 |
||
|
10
|
10
71515-60A00-000 CUSHION,BODY FR MTG NO.21995-10-01~ |
71515-60A00-000 |
US $8.83 |
||
|
11
|
11
71516-56B00-000
カラー,ボディフロントマウンチング
1995-10-01~ |
71516-56B00-000 |
— | ||
| replacement | |||||
|
11
|
11
71516-56B01-000 COLLAR,BODY FR MOUNTING1995-10-01~ |
71516-56B01-000 |
US $14.08 |
||
|
12
|
12
71517-56B02-000 SPACER,BODY FRONT MTG1995-10-01~ |
71517-56B02-000 |
US $2.29 |
||
|
13
|
13
71521-56B00-000 PAD,BODY MOUNTING1995-10-01~ |
71521-56B00-000 |
US $11.52 |
||
|
14
|
14
71521-77E00-000 PAD,BODY MOUNTING1995-10-01~ |
71521-77E00-000 |
US $7.18 |
||
|
15
|
15
71632-83010-000
ボトム,ボディマウンチング
1995-10-01~ |
71632-83010-000 |
— | ||
| replacement | |||||
|
15
|
15
71632-83011-000 BOTTOM,BODY MOUNTING1995-10-01~ |
71632-83011-000 |
US $2.24 |
||
|
16
|
16
72211-56B01-000 FLAP,FR FRAME SIDE,R1995-10-01~ |
72211-56B01-000 |
US $18 |
||
|
17
|
17
09103-12043-000 BOLT(12X20)1995-10-01~ |
09103-12043-000 |
US $1.92 |
||
|
18
|
18
09159-10060-000 NUT1995-10-01~ |
09159-10060-000 |
from US $1.28 |
||
|
19
|
19
09409-06318-000 CLIP1995-10-01~ |
09409-06318-000 |
US $12.90 |
||
|
20
|
20
09409-10302-5PK CLIP(BLACK)ブラック; 1995-10-01~ |
09409-10302-5PK |
US $1.28 |
||
|
21
|
21
01570-08203-000
Bolt
1995-10-01~ |
01570-08203-000 |
— | ||
| replacements | |||||
|
21
|
21
01570-0820B-000 Bolt1995-10-01~ |
01570-0820B-000 |
US $17.30 |
||
|
21
|
21
01570-0820A-000 BOLT1995-10-01~ |
01570-0820A-000 |
from US $0.96 |
||
|
22
|
22
01570-10853-000
Bolt
1995-10-01~ |
01570-10853-000 |
— | ||
| replacement | |||||
|
22
|
22
01570-1085C-000 Bolt1995-10-01~ |
01570-1085C-000 |
US $1.68 |
||
