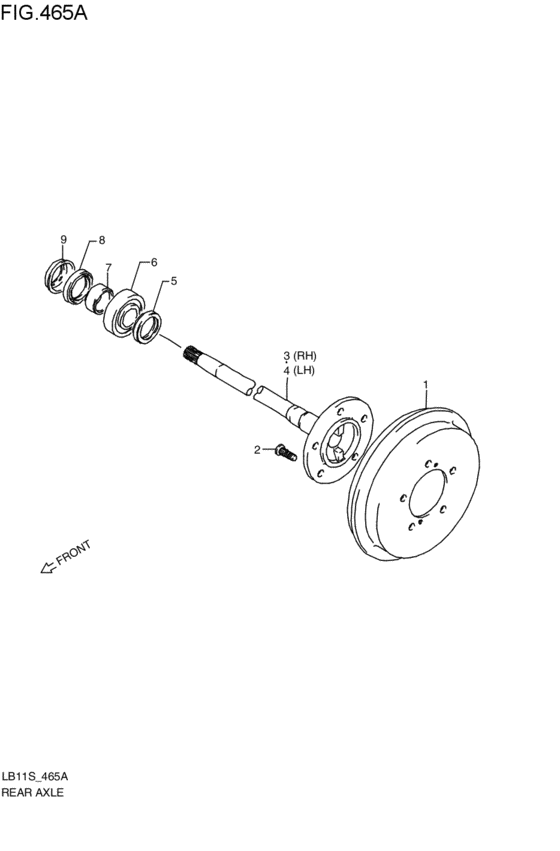

rear axle (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43511-60A10-000 DRUM,BRAKE RR1995-10-01~ |
43511-60A10-000 |
US $167.81 |
||
|
2
|
2
09119-12012-000 BOLT(12X38)1995-10-01~ |
09119-12012-000 |
US $2.72 |
||
|
3
|
3
44211-60A10-000
シャフト,リヤアクスル,ライト
1995-10-01~ |
44211-60A10-000 |
— | ||
| replacement | |||||
|
3
|
3
44210-60AV0-000 SHAFT ASSY,REAR AXLE,R1995-10-01~ |
44210-60AV0-000 |
US $307.28 |
||
|
4
|
4
44221-60A10-000
シャフト,リヤアクスル,レフト
1995-10-01~ |
44221-60A10-000 |
— | ||
| replacement | |||||
|
4
|
4
44220-60AV0-000 SHAFT ASSY,REAR AXLE,L1995-10-01~ |
44220-60AV0-000 |
US $307.28 |
||
|
5
|
5
09284-45001-000 SEAL,OIL(45X59X8)1995-10-01~ |
09284-45001-000 |
from US $9.97 |
||
|
6
|
6
09269-35010-000 BEARING(35X80X21)1995-10-01~ |
09269-35010-000 |
US $109.60 |
||
|
7
|
7
43485-73000-000 RING,RR WHEEL BRG RETAINER1995-10-01~ |
43485-73000-000 |
from US $8.51 |
||
|
8
|
8
09282-48003-000 SEAL,OIL(48X62X9)1995-10-01~ |
09282-48003-000 |
from US $11.63 |
||
|
9
|
9
43588-73000-000 PROTECTOR,OIL SEAL1995-10-01~ |
43588-73000-000 |
from US $1.52 |
||
