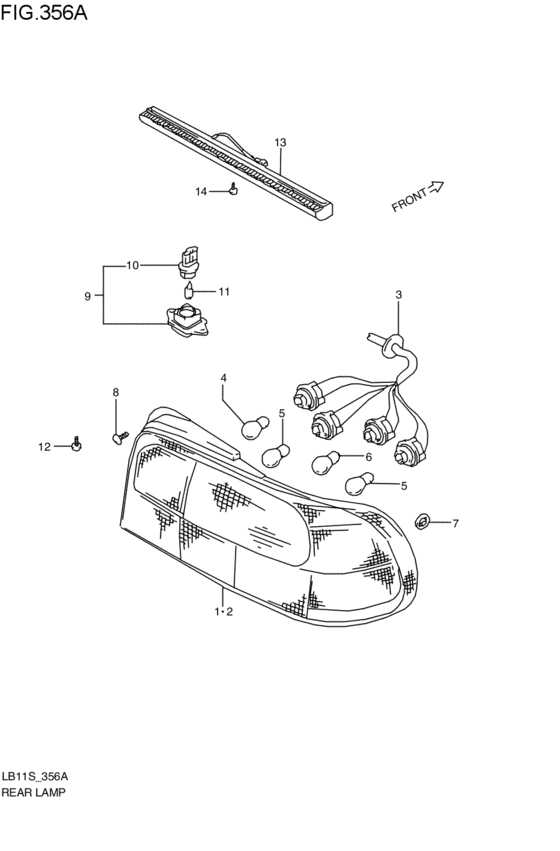

rear lamp (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-79E11-000
Lamp unit,rr comb,rh
1995-10-01~ |
35650-79E11-000 |
— | ||
|
2
|
2
35670-79E11-000
Lamp unit,rr comb,lh
1995-10-01~ |
35670-79E11-000 |
— | ||
|
3
|
3
35658-79E10-000
C0rd assy
1995-10-01~ |
35658-79E10-000 |
— | ||
|
4
|
4
09471-12186-000 BULB(12V21W,AMBER)1995-10-01~ |
09471-12186-000 |
from US $5.65 |
||
|
5
|
5
09471-12083-000 BULB(12V21/5W)STANLEY,49641A; 1995-10-01~ |
09471-12083-000 |
from US $4.75 |
||
| replacement | |||||
|
5
|
5
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY,49641A; 1995-10-01~ |
09471-12128-000 |
from US $7.20 |
||
|
6
|
6
09471-12045-000 BULB(12V21W)STANLEY,A4957E; 1995-10-01~ |
09471-12045-000 |
from US $2.54 |
||
|
7
|
7
35659-70B00-000 GROMMET,RR COMB. LAMP1995-10-01~ |
35659-70B00-000 |
US $3.02 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
1995-10-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt 1995-10-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 1995-10-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
35910-70C10-999
ランプアッシ,ライセンス
1995-10-01~ |
35910-70C10-999 |
— | ||
| replacement | |||||
|
9
|
9
35910-70C11-000 Lamp assy,license1995-10-01~ |
35910-70C11-000 |
US $41.95 |
||
|
10
|
10
35618-70B20-000
Socket
1995-10-01~ |
35618-70B20-000 |
— | ||
| replacement | |||||
|
10
|
10
35618-70B00-000 SOCKET,LAMP1995-10-01~ |
35618-70B00-000 |
US $6.40 |
||
|
11
|
11
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 1995-10-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
11
|
11
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 1995-10-01~ |
09471-12216-000 |
from US $2.84 |
||
|
12
|
12
02112-05123-000
Screw 5x12
1995-10-01~ |
02112-05123-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-0512A-000 SCREW1995-10-01~ |
02112-0512A-000 |
from US $0.80 |
||
|
13
|
13
35810-79E00-000
LAMP ASSY,HIGH MT STOP
1995-10-01~ |
35810-79E00-000 |
— | ||
|
14
|
14
02142-04083-000
Screw
1995-10-01~ |
02142-04083-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0408B-000 SCREW1995-10-01~ |
02142-0408B-000 |
from US $0.77 |
||
