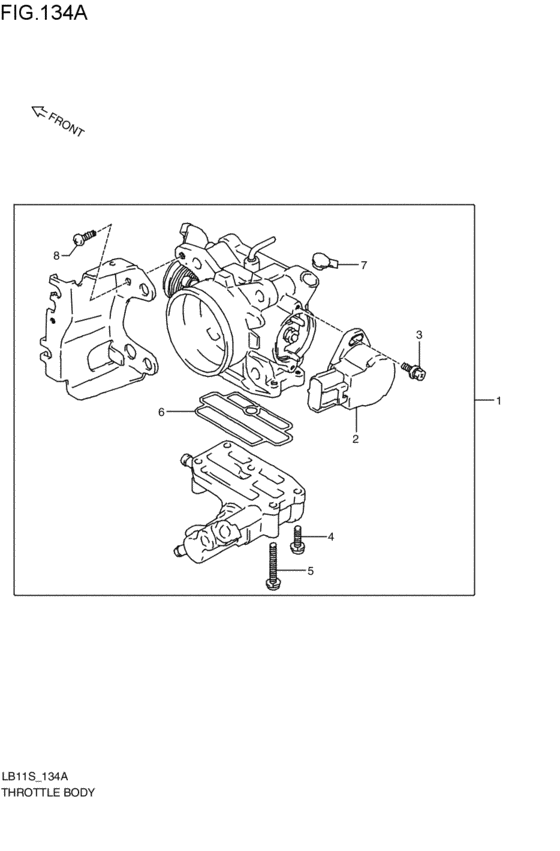

throttle body (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-58B10-000
BODY ASSY,THROTTLE
4AT; 1995-10-01~ |
13400-58B10-000 |
— | ||
|
2
|
2
13420-58B00-000
SENSOR,THROTTLE POSITION
1995-10-01~1995-12-01 |
13420-58B00-000 |
— | ||
|
2
|
2
13420-58B10-000 SENSOR,THROTTLE POSITION1995-12-01~ |
13420-58B10-000 |
US $276.80 |
||
|
3
|
3
13428-58B00-000 BOLT,THROTTLE SENSOR1995-10-01~ |
13428-58B00-000 |
US $1.60 |
||
|
4
|
4
02112-05203-000
Screw
1995-10-01~ |
02112-05203-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0520B-000 SCREW1995-10-01~ |
02112-0520B-000 |
from US $0.77 |
||
|
5
|
5
02112-35353-000
Screw
1995-10-01~ |
02112-35353-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-3535B-000 SCREW1995-10-01~ |
02112-3535B-000 |
US $22.10 |
||
|
6
|
6
18138-58B00-000 O-RING,AIR CONTROL VALVE1995-10-01~ |
18138-58B00-000 |
from US $7.83 |
||
|
7
|
7
13416-58B00-000
CAP
1995-10-01~1995-12-01 |
13416-58B00-000 |
— | ||
|
8
|
8
02112-05123-000
Screw 5x12
1995-10-01~ |
02112-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-0512A-000 SCREW1995-10-01~ |
02112-0512A-000 |
from US $0.80 |
||
