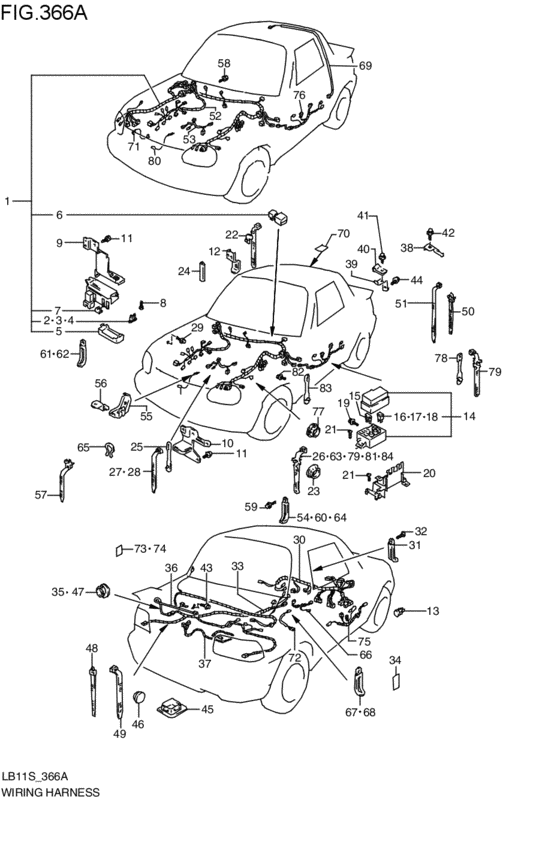

wire ring harness (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36601-79E10-000
ハーネスアッシ,ワイヤリング,メイン
4AT; 1995-10-01~ |
36601-79E10-000 |
— | ||
|
2
|
2
09481-15101-000 FUSE(15A)Fuse (15a) 1995-10-01~ |
09481-15101-000 |
from US $1.28 |
||
|
3
|
3
09481-20101-000 FUSE(20A)1995-10-01~ |
09481-20101-000 |
from US $3.35 |
||
|
4
|
4
09481-25103-000 FUSE(25A)1995-10-01~ |
09481-25103-000 |
from US $2.15 |
||
|
5
|
5
36717-77E01-000 COVER,FUSE BOX1995-10-01~ |
36717-77E01-000 |
US $8.68 |
||
|
6
|
6
33553-52E00-000 FILTER,NOISE SUPPR1995-10-01~ |
33553-52E00-000 |
US $57.76 |
||
|
7
|
7
36795-82000-000 BREAKER,POWER WINDOW1995-10-01~ |
36795-82000-000 |
US $24.84 |
||
|
8
|
8
02162-05123-000
Screw
1995-10-01~ |
02162-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0512A-000 SCREW1995-10-01~ |
02162-0512A-000 |
from US $0.80 |
||
|
9
|
9
36735-77E13-000
Bracket,fuse box
1995-10-01~ |
36735-77E13-000 |
— | ||
|
10
|
10
36614-70E10-000
BRACKET,MAIN HARN
1995-10-01~ |
36614-70E10-000 |
— | ||
|
11
|
11
02162-06103-000
Bolt
1995-10-01~ |
02162-06103-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0610A-000 SCREW1995-10-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
12
|
12
36996-70E00-000 PROTECTOR,MAIN HARNESS1995-10-01~ |
36996-70E00-000 |
US $2.72 |
||
|
13
|
13
09409-07320-000 CAP1995-10-01~ |
09409-07320-000 |
US $1.28 |
||
|
14
|
14
36740-77E00-000 BOX ASSY,MAIN FUSE1995-10-01~ |
36740-77E00-000 |
US $93.84 |
||
|
15
|
15
09481-15101-000 FUSE(15A)Fuse (15a) 1995-10-01~ |
09481-15101-000 |
from US $1.28 |
||
|
16
|
16
09481-30203-000 FUSE(30A)1995-10-01~ |
09481-30203-000 |
US $13.92 |
||
|
17
|
17
09481-60202-000 FUSE(60A)1995-10-01~ |
09481-60202-000 |
from US $5.47 |
||
|
18
|
18
09481-80301-000 FUSE(80A)1995-10-01~ |
09481-80301-000 |
from US $5.74 |
||
|
19
|
19
09138-06040-000 BOLT(6X10)1995-10-01~ |
09138-06040-000 |
US $1.52 |
||
|
20
|
20
36737-70E10-000
BRACKET,MAIN FUSE
1995-10-01~ |
36737-70E10-000 |
— | ||
|
21
|
21
02162-06103-000
Bolt
1995-10-01~ |
02162-06103-000 |
— | ||
| replacement | |||||
|
21
|
21
02162-0610A-000 SCREW1995-10-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
22
|
22
36990-56B00-000 CLAMP,HARN DASH PANEL1995-10-01~ |
36990-56B00-000 |
US $1.60 |
||
|
23
|
23
09308-25002-000 GROMMET1995-10-01~ |
09308-25002-000 |
US $11.80 |
||
|
24
|
24
75958-77E00-000 PROTECTOR,NO.41995-10-01~ |
75958-77E00-000 |
US $5.96 |
||
|
25
|
25
09407-05403-000 CLAMP,L:881995-10-01~ |
09407-05403-000 |
from US $0.91 |
||
|
26
|
26
09407-12404-000 CLAMP(L:140)1995-10-01~ |
09407-12404-000 |
US $2.08 |
||
|
27
|
27
09407-17401-000
Clamp (l:150)
1995-10-01~ |
09407-17401-000 |
— | ||
| replacement | |||||
|
27
|
27
09407-17402-000 CLAMP1995-10-01~ |
09407-17402-000 |
from US $1.98 |
||
|
28
|
28
09407-25401-000 CLAMP(L:235)Clamp (l:235) 1995-10-01~ |
09407-25401-000 |
from US $2.08 |
||
|
29
|
29
09115-06001-000
Bolt, lh
1995-10-01~ |
09115-06001-000 |
— | ||
| replacement | |||||
|
29
|
29
09115-06005-000 BOLT(6X16)1995-10-01~ |
09115-06005-000 |
US $1.28 |
||
|
30
|
30
36620-79E00-000
ハーネスアッシ,ワイヤリング,インストゥルメントパネル
1995-10-01~ |
36620-79E00-000 |
— | ||
|
31
|
31
09404-06427-000
クランプ,L:80
1995-10-01~ |
09404-06427-000 |
— | ||
| replacements | |||||
|
31
|
31
09404-06434-000
CLAMP(L:80 T:1.0)
1995-10-01~ |
09404-06434-000 |
— | ||
|
31
|
31
09404-06433-000
CLAMP(L:80)
1995-10-01~ |
09404-06433-000 |
— | ||
|
31
|
31
09404-06436-000 Clamp(L:80)1995-10-01~ |
09404-06436-000 |
from US $2.13 |
||
|
31
|
31
09404-06036-000 Clamp(L:80)1995-10-01~ |
09404-06036-000 |
from US $1.82 |
||
|
31
|
31
09404-06432-000
CLAMP(L:65)
1995-10-01~ |
09404-06432-000 |
— | ||
| replacement | |||||
|
31
|
31
09404-06039-000 Clamp(L:65)1995-10-01~ |
09404-06039-000 |
from US $1.82 |
||
|
32
|
32
03541-05163-000
Screw
1995-10-01~ |
03541-05163-000 |
— | ||
| replacement | |||||
|
32
|
32
03541-0516A-000 SCREW1995-10-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
33
|
33
36630-79E60-000
ハーネスアッシ,ワイヤリング,フロア
1995-10-01~ |
36630-79E60-000 |
— | ||
|
34
|
34
36930-82010-000 COVER,HARNESSCover, roof wire 1995-10-01~ |
36930-82010-000 |
from US $1.73 |
||
|
35
|
35
09308-42001-000
GROMMET
1995-10-01~ |
09308-42001-000 |
— | ||
|
36
|
36
36845-79E00-000
ワイヤ,ライセンスランプ
1995-10-01~ |
36845-79E00-000 |
— | ||
|
37
|
37
36875-79E20-000
ワイヤ,フューエル
1995-10-01~ |
36875-79E20-000 |
— | ||
|
38
|
38
36996-56B00-000
ブラケット,アンチロックワイヤクランプ
1995-10-01~ |
36996-56B00-000 |
— | ||
|
39
|
39
36997-60A10-000
CLAMP,RWAL WIRE
1995-10-01~ |
36997-60A10-000 |
— | ||
|
40
|
40
36997-60A00-000
クランプ,アンチロックワイヤ
1995-10-01~ |
36997-60A00-000 |
— | ||
|
41
|
41
02162-06123-000
Bolt (6x12)
1995-10-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
41
|
41
02162-0612B-000 SCREWBolt 1995-10-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
41
|
41
02162-0612A-000 SCREWBolt, bracket 1995-10-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
42
|
42
01550-08123-000
Bolt
1995-10-01~ |
01550-08123-000 |
— | ||
| replacements | |||||
|
42
|
42
01550-0812B-000 BoltPlug, drain 1995-10-01~ |
01550-0812B-000 |
from US $0.96 |
||
|
42
|
42
01550-0812A-000 BOLT1995-10-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
43
|
43
09129-06002-000 SCREW(6X12)1995-10-01~ |
09129-06002-000 |
US $0.96 |
||
|
44
|
44
09132-06006-000 SCREW(6X12)1995-10-01~ |
09132-06006-000 |
US $1.60 |
||
|
45
|
45
75411-60A00-000 CAP,TAIL MEMBER LOWER1995-10-01~ |
75411-60A00-000 |
US $2.56 |
||
|
46
|
46
36995-60A10-000 GROMMET,SIDE SIL1995-10-01~ |
36995-60A10-000 |
US $1.91 |
||
|
47
|
47
09308-42001-000
GROMMET
1995-10-01~ |
09308-42001-000 |
— | ||
|
48
|
48
09407-11402-000 CLAMP(L:90)1995-10-01~ |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
48
|
48
09407-17402-000 CLAMP1995-10-01~ |
09407-17402-000 |
from US $1.98 |
||
|
49
|
49
09407-25401-000 CLAMP(L:235)Clamp (l:235) 1995-10-01~ |
09407-25401-000 |
from US $2.08 |
||
|
50
|
50
09407-17401-000
Clamp (l:150)
1995-10-01~ |
09407-17401-000 |
— | ||
| replacement | |||||
|
50
|
50
09407-17402-000 CLAMP1995-10-01~ |
09407-17402-000 |
from US $1.98 |
||
|
51
|
51
09407-18403-000
Clamp, switch wire
1995-10-01~ |
09407-18403-000 |
— | ||
| replacement | |||||
|
51
|
51
09407-18402-000 CLAMP(L:165)Clamp (l:165) 1995-10-01~ |
09407-18402-000 |
from US $1.98 |
||
|
52
|
52
36650-70E90-000
ハーネスアッシ,ワイヤリング,エンジン
4AT; 1995-10-01~ |
36650-70E90-000 |
— | ||
| replacement | |||||
|
52
|
52
36650-70E91-000
Harness assy,wrg,end
4AT; 1995-10-01~ |
36650-70E91-000 |
— | ||
|
53
|
53
36670-70E20-000 HARNESS ASSY,WRG INJ1995-10-01~ |
36670-70E20-000 |
US $105.25 |
||
|
54
|
54
09404-06432-000
CLAMP(L:65)
1995-10-01~ |
09404-06432-000 |
— | ||
| replacement | |||||
|
54
|
54
09404-06039-000 Clamp(L:65)1995-10-01~ |
09404-06039-000 |
from US $1.82 |
||
|
55
|
55
36995-70E20-000 BRACKET,ENG HARN1995-10-01~ |
36995-70E20-000 |
US $6.07 |
||
|
56
|
56
36995-57B30-000 BRACKET,HARN1995-10-01~ |
36995-57B30-000 |
US $3.02 |
||
|
57
|
57
09407-12405-000
CLAMP
1995-10-01~ |
09407-12405-000 |
— | ||
|
58
|
58
01580-06123-000
Bolt
1995-10-01~ |
01580-06123-000 |
— | ||
| replacements | |||||
|
58
|
58
01580-0612B-000 Bolt1995-10-01~ |
01580-0612B-000 |
US $0.96 |
||
|
58
|
58
01580-0612A-000 Bolt1995-10-01~ |
01580-0612A-000 |
from US $0.91 |
||
|
59
|
59
02162-06103-000
Bolt
1995-10-01~ |
02162-06103-000 |
— | ||
| replacement | |||||
|
59
|
59
02162-0610A-000 SCREW1995-10-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
60
|
60
09404-06432-000
CLAMP(L:65)
1995-10-01~ |
09404-06432-000 |
— | ||
| replacement | |||||
|
60
|
60
09404-06039-000 Clamp(L:65)1995-10-01~ |
09404-06039-000 |
from US $1.82 |
||
|
61
|
61
09404-08207-000
CLAMP(L:80)
1995-10-01~ |
09404-08207-000 |
— | ||
| replacement | |||||
|
61
|
61
09404-08212-000 Clamp1995-10-01~ |
09404-08212-000 |
from US $1.22 |
||
|
62
|
62
09404-08420-000 CLAMP(L:120 T:1.0)1995-10-01~ |
09404-08420-000 |
from US $2.08 |
||
|
63
|
63
09407-12404-000 CLAMP(L:140)1995-10-01~ |
09407-12404-000 |
US $2.08 |
||
|
64
|
64
09404-06433-000
CLAMP(L:80)
1995-10-01~ |
09404-06433-000 |
— | ||
|
65
|
65
09408-00024-000 CLIP(ID:23)Clip, ptt sw terminal 1995-10-01~ |
09408-00024-000 |
from US $2.40 |
||
|
66
|
66
36660-70E00-000
HARNESS ASSY,WRG MISSION
4AT; 1995-10-01~ |
36660-70E00-000 |
— | ||
|
67
|
67
09404-08206-000 CLAMP(L:65 T:0.8)Clamp 1995-10-01~ |
09404-08206-000 |
from US $1.22 |
||
|
68
|
68
09404-08420-000 CLAMP(L:120 T:1.0)1995-10-01~ |
09404-08420-000 |
from US $2.08 |
||
|
69
|
69
36820-60A30-000
WIRE,ROOM LAMP
1995-10-01~ |
36820-60A30-000 |
— | ||
|
70
|
70
36930-82010-000 COVER,HARNESSCover, roof wire 1995-10-01~ |
36930-82010-000 |
from US $1.73 |
||
|
71
|
71
39312-82012-000 WIRE,NOISE SUPPR1995-10-01~ |
39312-82012-000 |
US $9.76 |
||
|
72
|
72
36880-60A60-000
WIRE,SHIFT ILLUM
4AT; 1995-10-01~ |
36880-60A60-000 |
— | ||
|
73
|
73
36930-82010-000 COVER,HARNESSCover, roof wire 4AT; 1995-10-01~ |
36930-82010-000 |
from US $1.73 |
||
|
74
|
74
36930-82010-000 COVER,HARNESSCover, roof wire 1995-10-01~ |
36930-82010-000 |
from US $1.73 |
||
|
75
|
75
36756-79E00-000
WIRE,DR DRVR
1995-10-01~ |
36756-79E00-000 |
— | ||
|
76
|
76
36756-79E10-000
ワイヤ,ドア,アシスタント
1995-10-01~ |
36756-79E10-000 |
— | ||
|
77
|
77
09308-40001-000 GROMMET1995-10-01~ |
09308-40001-000 |
US $21.70 |
||
|
78
|
78
09407-05403-000 CLAMP,L:881995-10-01~ |
09407-05403-000 |
from US $0.91 |
||
|
79
|
79
09407-12404-000 CLAMP(L:140)1995-10-01~ |
09407-12404-000 |
US $2.08 |
||
|
80
|
80
36955-60A00-000
ワイヤ,パワーステアリング
1995-10-01~ |
36955-60A00-000 |
— | ||
| replacement | |||||
|
80
|
80
36955-70E00-000 WIRE,POWER STEERING1995-10-01~ |
36955-70E00-000 |
US $5.70 |
||
|
81
|
81
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap 1995-10-01~ |
09407-14403-000 |
from US $2.08 |
||
|
82
|
82
09115-06001-000
Bolt, lh
1995-10-01~ |
09115-06001-000 |
— | ||
| replacement | |||||
|
82
|
82
09115-06005-000 BOLT(6X16)1995-10-01~ |
09115-06005-000 |
US $1.28 |
||
|
83
|
83
09407-05403-000 CLAMP,L:881995-10-01~ |
09407-05403-000 |
from US $0.91 |
||
|
84
|
84
09407-12404-000 CLAMP(L:140)1995-10-01~ |
09407-12404-000 |
US $2.08 |
||
