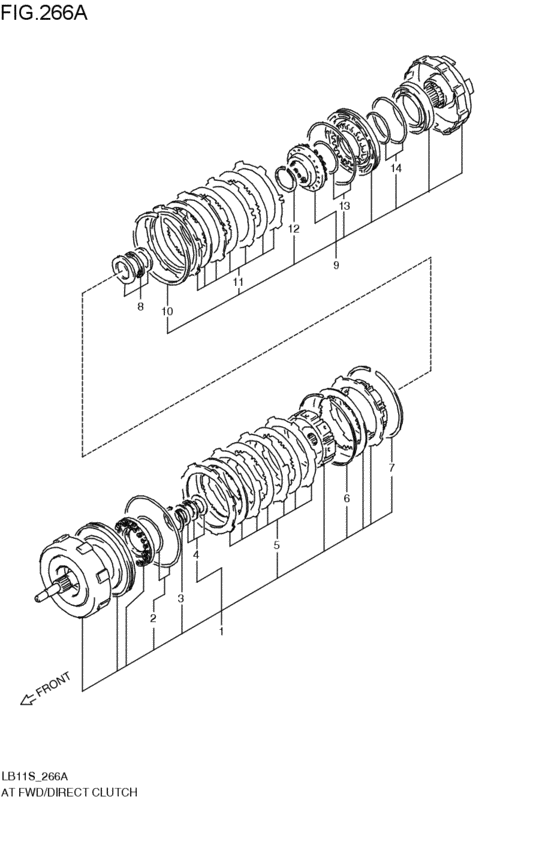

at - forward / direct clutch (4AT; 1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26601-57B10-000
クラッチアッシ,マルチプルディスク
4AT; 1995-10-01~ |
26601-57B10-000 |
— | ||
| replacements | |||||
|
1
|
1
26601-57B11-000 CLUTCH ASSY,FWD MULTIPLE DISK4AT; 1995-10-01~ |
26601-57B11-000 |
US $1,458.56 |
||
|
1
|
1
26662-65DT0-000 BEARING SET,THRUST N0.84AT; 1995-10-01~ |
26662-65DT0-000 |
US $52.26 |
||
|
2
|
2
26622-57BT2-000
O-RING SET,CLUTCH
4AT; 1995-10-01~ |
26622-57BT2-000 |
— | ||
|
3
|
3
26691-57B00-000 RING,RETAINING RETURN SPRING4AT; 1995-10-01~ |
26691-57B00-000 |
US $9.60 |
||
|
4
|
4
26661-57BT0-000 BEARING SET,THRUST NO.74AT; 1995-10-01~ |
26661-57BT0-000 |
US $47.10 |
||
|
5
|
5
26631-57BU0-000 PLATE SET,DIRECT CLUTCH4AT; 1995-10-01~ |
26631-57BU0-000 |
US $397.76 |
||
|
6
|
6
24191-57B00-000 RING,RETAINING O/D CL4AT; 1995-10-01~ |
24191-57B00-000 |
US $10.49 |
||
|
7
|
7
26692-57B01-000 RING,RETAINING BACK PLATE4AT; 1995-10-01~ |
26692-57B01-000 |
US $13.98 |
||
|
8
|
8
26662-57BT0-000 BEARING SET,THRUST NO.84AT; 1995-10-01~ |
26662-57BT0-000 |
US $52.26 |
||
| replacement | |||||
|
8
|
8
26662-65DT0-000 BEARING SET,THRUST N0.84AT; 1995-10-01~ |
26662-65DT0-000 |
US $52.26 |
||
|
9
|
9
26602-57B01-000
CLUTCH ASSY,DIRECT
4AT; 1995-10-01~ |
26602-57B01-000 |
— | ||
|
10
|
10
26692-57B10-000 RING,DIRECT CLUTCH4AT; 1995-10-01~ |
26692-57B10-000 |
US $14.06 |
||
|
11
|
11
26621-57BT0-000 PLATE SET,DIRECT CLUTCH4AT; 1995-10-01~ |
26621-57BT0-000 |
US $375.36 |
||
|
12
|
12
26691-57B00-000 RING,RETAINING RETURN SPRING4AT; 1995-10-01~ |
26691-57B00-000 |
US $9.60 |
||
|
13
|
13
26622-57BT2-000
O-RING SET,CLUTCH
4AT; 1995-10-01~ |
26622-57BT2-000 |
— | ||
|
14
|
14
26632-57BT0-000
Oリングセット,ダイレクトクラッチ
4AT; 1995-10-01~ |
26632-57BT0-000 |
— | ||
| replacement | |||||
|
14
|
14
26632-57BT1-000 O-RING SET,DIRECT CL4AT; 1995-10-01~ |
26632-57BT1-000 |
US $21.90 |
||
