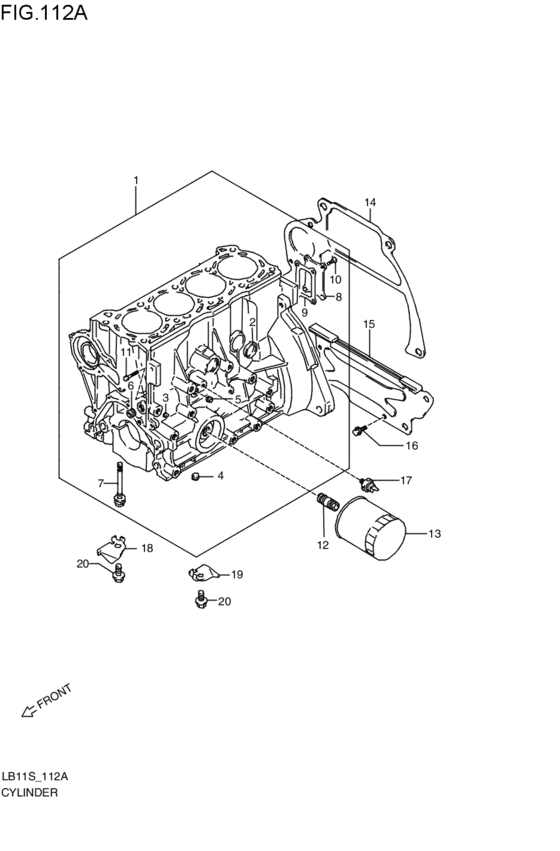

Cylinder (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-62G01-000
ブロックアッシ,シリンダ
1995-10-01~ |
11200-62G01-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-58B05-X12 BLOCK ASSY,CYLINDER G16A1995-10-01~ |
11200-58B05-X12 |
US $4,576 |
||
|
2
|
2
09241-30009-000
Plug
1995-10-01~ |
09241-30009-000 |
— | ||
| replacement | |||||
|
2
|
2
09241-30010-000 PLUG1995-10-01~ |
09241-30010-000 |
US $2.40 |
||
|
3
|
3
09246-05006-000 PLUG(1/8PT,H:5.5)1995-10-01~ |
09246-05006-000 |
from US $1.42 |
||
|
4
|
4
09246-06002-000
PLUG
1995-10-01~ |
09246-06002-000 |
— | ||
| replacement | |||||
|
4
|
4
09246-08007-000 PLUG1995-10-01~ |
09246-08007-000 |
US $1.76 |
||
|
5
|
5
09246-06002-000
PLUG
1995-10-01~ |
09246-06002-000 |
— | ||
| replacement | |||||
|
5
|
5
09246-08007-000 PLUG1995-10-01~ |
09246-08007-000 |
US $1.76 |
||
|
6
|
6
09246-08002-000 PLUG1995-10-01~ |
09246-08002-000 |
US $1.76 |
||
|
7
|
7
11260-60A00-000 BOLT,CRK BRG CAP1995-10-01~ |
11260-60A00-000 |
US $5.37 |
||
|
8
|
8
11221-60A00-000 PLATE,CYLINDER BLOCK1995-10-01~ |
11221-60A00-000 |
US $4.23 |
||
|
9
|
9
11229-60A00-000 GASKET,CYL BLOCK PLATE1995-10-01~ |
11229-60A00-000 |
US $13.44 |
||
|
10
|
10
02122-06123-000
Screw
1995-10-01~ |
02122-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
02122-0612B-000 SCREW1995-10-01~ |
02122-0612B-000 |
from US $0.80 |
||
|
10
|
10
02122-0612A-000 SCREW1995-10-01~ |
02122-0612A-000 |
from US $0.80 |
||
|
11
|
11
01500-06253-000 BoltBolt, fuel injection bracket 1995-10-01~ |
01500-06253-000 |
US $2.49 |
||
| replacement | |||||
|
11
|
11
01500-0625A-000 BOLTBolt, gear shift arm 1995-10-01~ |
01500-0625A-000 |
from US $0.80 |
||
|
12
|
12
11241-73003-000 STAND,OIL FILTER1995-10-01~ |
11241-73003-000 |
US $6.40 |
||
|
13
|
13
16510-61A01-000
フィルタアッシ,オイル(TOKYO ROKI)
TOKYO ROKI; 1995-10-01~ |
16510-61A01-000 |
— | ||
| replacements | |||||
|
13
|
13
16510-61A20-MHL
Filter assy, oil
TOKYO ROKI; 1995-10-01~ |
16510-61A20-MHL |
— | ||
|
13
|
13
16510-61A31-000
FILTER ASSY,OIL WAKO
TOKYO ROKI; 1995-10-01~ |
16510-61A31-000 |
— | ||
|
14
|
14
11311-60A00-000
プレート,クラッチハウジング,アッパ
1995-10-01~ |
11311-60A00-000 |
— | ||
| replacement | |||||
|
14
|
14
11311-60A01-000 PLATE,CLUTCH HSG UPPER1995-10-01~ |
11311-60A01-000 |
US $38.40 |
||
|
15
|
15
11320-57B00-000 PLATE,CLUTCH HSG LOWER1995-10-01~ |
11320-57B00-000 |
US $43.20 |
||
|
16
|
16
02162-06103-000
Bolt
1995-10-01~ |
02162-06103-000 |
— | ||
| replacement | |||||
|
16
|
16
02162-0610A-000 SCREW1995-10-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
17
|
17
37820-82001-000
Switch assy, oil pressure
1995-10-01~ |
37820-82001-000 |
— | ||
| replacement | |||||
|
17
|
17
37820-820P0-000 SWITCH ASSY,OIL PRESSURE1995-10-01~ |
37820-820P0-000 |
from US $12.02 |
||
|
18
|
18
11213-72F01-000
Plate, breather front
1995-10-01~ |
11213-72F01-000 |
— | ||
| replacement | |||||
|
18
|
18
11213-72F02-000 PLATE,BREATHER FRONT1995-10-01~ |
11213-72F02-000 |
US $3.28 |
||
|
19
|
19
11214-72F01-000 PLATE,BREATHER REAR1995-10-01~ |
11214-72F01-000 |
US $3.28 |
||
|
20
|
20
01550-08163-000
Bolt, holder
1995-10-01~ |
01550-08163-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0816B-000 BOLT1995-10-01~ |
01550-0816B-000 |
from US $0.91 |
||
|
20
|
20
01550-0816A-000 BOLTBolt, rear 1995-10-01~ |
01550-0816A-000 |
from US $0.91 |
||
