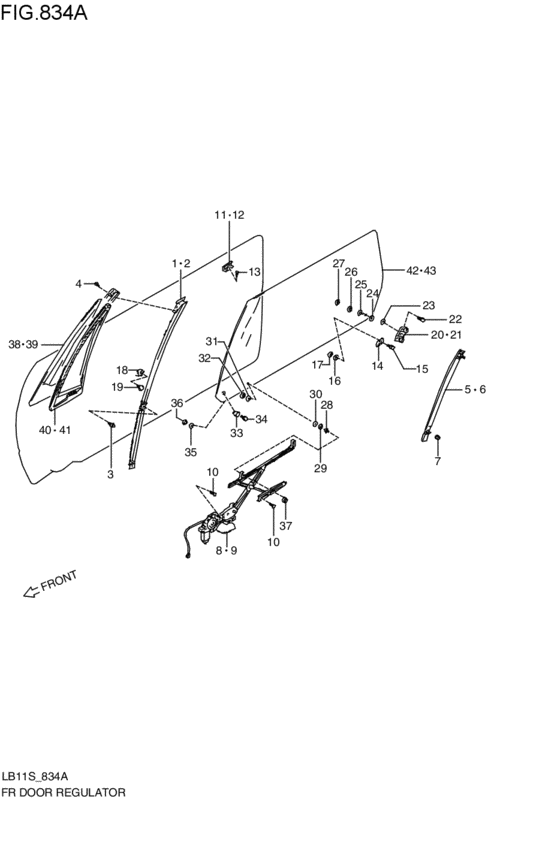

front door regulator (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81710-79E00-000
Sash comp,fr door ctr,r
1995-10-01~ |
81710-79E00-000 |
— | ||
|
2
|
2
81730-79E00-000
SASH,FR DOOR CENTER,L
1995-10-01~ |
81730-79E00-000 |
— | ||
|
3
|
3
01580-06163-000
Bolt
1995-10-01~ |
01580-06163-000 |
— | ||
| replacement | |||||
|
3
|
3
01580-0616A-000 BOLT1995-10-01~ |
01580-0616A-000 |
from US $0.96 |
||
|
4
|
4
02122-04103-000
Screw
1995-10-01~ |
02122-04103-000 |
— | ||
| replacement | |||||
|
4
|
4
02122-0410A-000 SCREWScrew (4x10) 1995-10-01~ |
02122-0410A-000 |
from US $0.80 |
||
|
5
|
5
81720-79E00-000
SASH,FR DOOR REAR,R
1995-10-01~ |
81720-79E00-000 |
— | ||
|
6
|
6
81740-79E00-000
SASH,FR DOOR REAR,L
1995-10-01~ |
81740-79E00-000 |
— | ||
|
7
|
7
08361-25083-000
Nut
1995-10-01~ |
08361-25083-000 |
— | ||
| replacement | |||||
|
7
|
7
08361-2508A-000 NUT1995-10-01~ |
08361-2508A-000 |
from US $0.80 |
||
|
8
|
8
83401-79E00-000
REGULATOR ASSY,FR WINDOW,R
1995-10-01~ |
83401-79E00-000 |
— | ||
|
9
|
9
83402-79E00-000 REGULATOR ASSY,FR WINDOW,L1995-10-01~ |
83402-79E00-000 |
US $382.72 |
||
|
10
|
10
02112-76123-000
Screw
1995-10-01~ |
02112-76123-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-7612B-000 SCREW1995-10-01~ |
02112-7612B-000 |
from US $0.96 |
||
|
11
|
11
83511-80F00-000
SUPPORT,DOOR TRIM,R
1995-10-01~ |
83511-80F00-000 |
— | ||
|
12
|
12
83521-80F00-000
SUPPORT,DOOR TRIM,L
1995-10-01~ |
83521-80F00-000 |
— | ||
|
13
|
13
02112-76123-000
Screw
1995-10-01~ |
02112-76123-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-7612B-000 SCREW1995-10-01~ |
02112-7612B-000 |
from US $0.96 |
||
|
14
|
14
83512-50D00-000 STABILIZER,DOOR GLASS MALE1995-10-01~ |
83512-50D00-000 |
US $17.60 |
||
|
15
|
15
01570-06123-000
Bolt
1995-10-01~ |
01570-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01570-0612B-000 BOLTBolt, upper 1995-10-01~ |
01570-0612B-000 |
US $0.80 |
||
|
15
|
15
01570-0612A-000 BOLTBolt 1995-10-01~ |
01570-0612A-000 |
from US $0.80 |
||
|
16
|
16
83517-50D00-000
PACKING
1995-10-01~ |
83517-50D00-000 |
— | ||
|
17
|
17
83516-50D00-000 NUT,DOOR STABILIZER1995-10-01~ |
83516-50D00-000 |
US $4.67 |
||
|
18
|
18
83513-80F00-000
Stopper,fr door window up
1995-10-01~ |
83513-80F00-000 |
— | ||
|
19
|
19
09103-08335-000
Bolt
1995-10-01~ |
09103-08335-000 |
— | ||
| replacement | |||||
|
19
|
19
09103-08421-000 BOLT(8X9.5)1995-10-01~ |
09103-08421-000 |
from US $1.85 |
||
|
20
|
20
83515-50D00-000
BRACKET S/ASSY,RR SASH,R
1995-10-01~ |
83515-50D00-000 |
— | ||
|
21
|
21
83525-50D00-000
BRACKET S/ASSY,RR SASH,L
1995-10-01~ |
83525-50D00-000 |
— | ||
|
22
|
22
01570-06123-000
Bolt
1995-10-01~ |
01570-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
01570-0612B-000 BOLTBolt, upper 1995-10-01~ |
01570-0612B-000 |
US $0.80 |
||
|
22
|
22
01570-0612A-000 BOLTBolt 1995-10-01~ |
01570-0612A-000 |
from US $0.80 |
||
|
23
|
23
83517-50D00-000
PACKING
1995-10-01~ |
83517-50D00-000 |
— | ||
|
24
|
24
83526-80F00-000
CUSHION,REAR BRACKET
1995-10-01~ |
83526-80F00-000 |
— | ||
|
25
|
25
83526-80F00-000
CUSHION,REAR BRACKET
1995-10-01~ |
83526-80F00-000 |
— | ||
|
26
|
26
83517-50D00-000
PACKING
1995-10-01~ |
83517-50D00-000 |
— | ||
|
27
|
27
83516-50D00-000 NUT,DOOR STABILIZER1995-10-01~ |
83516-50D00-000 |
US $4.67 |
||
|
28
|
28
83518-50D00-000 BOLT,WINDOW RGLTR BOTTOM1995-10-01~ |
83518-50D00-000 |
US $5.96 |
||
|
29
|
29
83519-50D00-000
スペーサ,ウィンドレギュレータボトム
1995-10-01~ |
83519-50D00-000 |
— | ||
|
30
|
30
83517-50D00-000
PACKING
1995-10-01~ |
83517-50D00-000 |
— | ||
|
31
|
31
83517-50D00-000
PACKING
1995-10-01~ |
83517-50D00-000 |
— | ||
|
32
|
32
83516-50D00-000 NUT,DOOR STABILIZER1995-10-01~ |
83516-50D00-000 |
US $4.67 |
||
|
33
|
33
83531-50D00-000
STOPPER,DOOR GLASS MALE
1995-10-01~ |
83531-50D00-000 |
— | ||
|
34
|
34
01570-06123-000
Bolt
1995-10-01~ |
01570-06123-000 |
— | ||
| replacements | |||||
|
34
|
34
01570-0612B-000 BOLTBolt, upper 1995-10-01~ |
01570-0612B-000 |
US $0.80 |
||
|
34
|
34
01570-0612A-000 BOLTBolt 1995-10-01~ |
01570-0612A-000 |
from US $0.80 |
||
|
35
|
35
83517-50D00-000
PACKING
1995-10-01~ |
83517-50D00-000 |
— | ||
|
36
|
36
83516-50D00-000 NUT,DOOR STABILIZER1995-10-01~ |
83516-50D00-000 |
US $4.67 |
||
|
37
|
37
08316-20063-000
Nut
1995-10-01~ |
08316-20063-000 |
— | ||
| replacement | |||||
|
37
|
37
08316-2006A-000 NUT1995-10-01~ |
08316-2006A-000 |
from US $0.76 |
||
|
38
|
38
84521-79E30-000
Glass,front door partition,r
グリーン,ASAHI; 1995-10-01~ |
84521-79E30-000 |
— | ||
|
39
|
39
84526-79E30-000
GLASS,FR DR PARTITION,L
グリーン,ASAHI; 1995-10-01~ |
84526-79E30-000 |
— | ||
|
40
|
40
84614-79E00-000
Weatherstrip,partition,r
1995-10-01~ |
84614-79E00-000 |
— | ||
|
41
|
41
84615-79E00-000
WEATHERSTRIP,PARTITION,L
1995-10-01~ |
84615-79E00-000 |
— | ||
|
42
|
42
84531-79E30-000
GLASS,FR DR WDO,R
グリーン,ASAHI; 1995-10-01~ |
84531-79E30-000 |
— | ||
|
43
|
43
84536-79E30-000
GLASS,FR DR WDO,L
グリーン,ASAHI; 1995-10-01~ |
84536-79E30-000 |
— | ||
