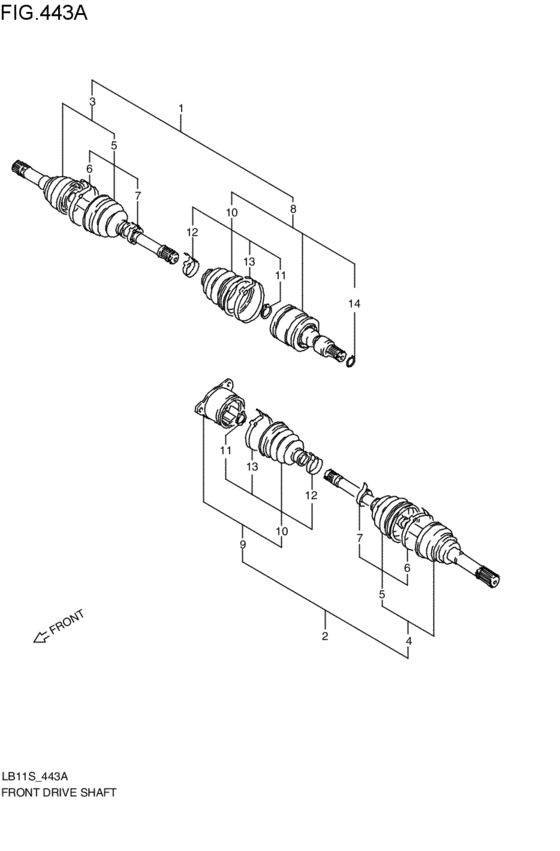

front-drive shaft (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-60A20-000 SHAFT ASSY,FRONT DRIVE,R1995-10-01~ |
44101-60A20-000 |
US $1,495.68 |
||
|
2
|
2
44102-60A10-000 SHAFT ASSY,FRONT DRIVE,L1995-10-01~ |
44102-60A10-000 |
US $1,495.68 |
||
|
3
|
3
44131-60A10-000
ジョイントアッシ,ホイールサイド,ライト
1995-10-01~ |
44131-60A10-000 |
— | ||
| replacement | |||||
|
3
|
3
44101-60A1V-000 SHAFT ASSY,FRONT DRIVE1995-10-01~ |
44101-60A1V-000 |
US $767.36 |
||
|
4
|
4
44132-60A10-000
ジョイントアッシ,ホイールサイド,レフト
1995-10-01~ |
44132-60A10-000 |
— | ||
| replacement | |||||
|
4
|
4
44102-60A10-000 SHAFT ASSY,FRONT DRIVE,L1995-10-01~ |
44102-60A10-000 |
US $1,495.68 |
||
|
5
|
5
44133-60A10-000
Boot set,wheel side
1995-10-01~ |
44133-60A10-000 |
— | ||
| replacement | |||||
|
5
|
5
44133-60A12-000 BOOT SET,WHEEL SIDE1995-10-01~ |
44133-60A12-000 |
US $100.10 |
||
|
6
|
6
44121-60A10-000 CLAMP,BOOT1995-10-01~ |
44121-60A10-000 |
US $16.67 |
||
|
7
|
7
44124-60A10-000 CLAMP,BOOT1995-10-01~ |
44124-60A10-000 |
US $8.76 |
||
|
8
|
8
44135-60A20-000
Joint assy,diff side,rh
1995-10-01~ |
44135-60A20-000 |
— | ||
| replacement | |||||
|
8
|
8
44135-60A22-000 JOINT ASSY,DIFF SIDE,R1995-10-01~ |
44135-60A22-000 |
US $499.84 |
||
|
9
|
9
44136-60A10-000
Joint assy,diff side,lh
1995-10-01~ |
44136-60A10-000 |
— | ||
| replacement | |||||
|
9
|
9
44136-60A12-000 JOINT ASSY,DIFF SIDE,L1995-10-01~ |
44136-60A12-000 |
US $499.84 |
||
|
10
|
10
44134-60A10-000
Boot set,diff side
1995-10-01~ |
44134-60A10-000 |
— | ||
| replacement | |||||
|
10
|
10
44134-60A12-000 BOOT SET,DIFF SIDE1995-10-01~ |
44134-60A12-000 |
US $100.10 |
||
|
11
|
11
44111-60A10-000 RING,SNAP1995-10-01~ |
44111-60A10-000 |
US $3.72 |
||
|
12
|
12
44124-60A10-000 CLAMP,BOOT1995-10-01~ |
44124-60A10-000 |
US $8.76 |
||
|
13
|
13
44121-60A10-000 CLAMP,BOOT1995-10-01~ |
44121-60A10-000 |
US $16.67 |
||
|
14
|
14
09381-25001-000
リング,スナップ
RH; 1995-10-01~ |
09381-25001-000 |
— | ||
| replacement | |||||
|
14
|
14
44111-65D00-000 RING,SNAPRH; 1995-10-01~ |
44111-65D00-000 |
from US $1.60 |
||
