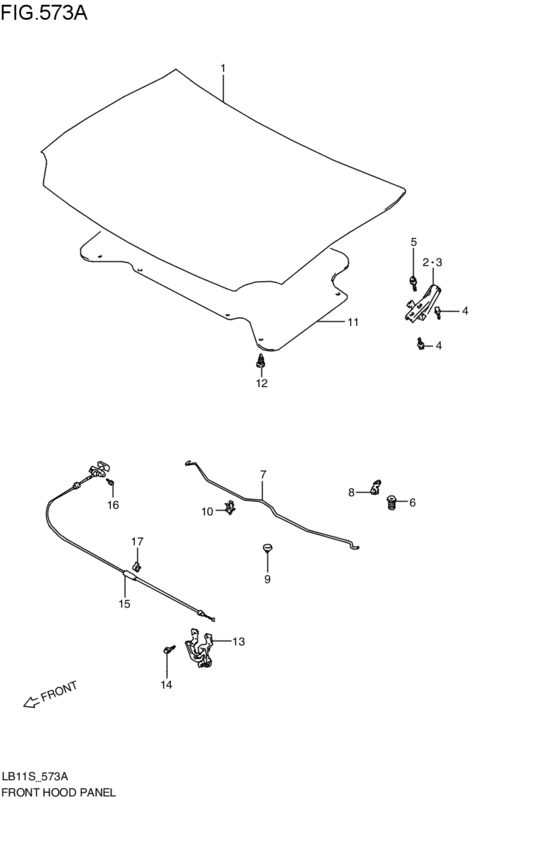

front hood (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58300-79810-000
パネルアッシ,フロントフード
1995-10-01~ |
58300-79810-000 |
— | ||
| replacement | |||||
|
1
|
1
58300-79811-000
PANEL SET,FRONT HOOD
1995-10-01~ |
58300-79811-000 |
— | ||
|
2
|
2
58410-79E00-000
HINGE,FR HOOD,R
1995-10-01~ |
58410-79E00-000 |
— | ||
|
3
|
3
58430-79E00-000
HINGE,FR HOOD,L
1995-10-01~ |
58430-79E00-000 |
— | ||
|
4
|
4
01580-06163-000
Bolt
1995-10-01~ |
01580-06163-000 |
— | ||
| replacement | |||||
|
4
|
4
01580-0616A-000 BOLT1995-10-01~ |
01580-0616A-000 |
from US $0.96 |
||
|
5
|
5
02162-06123-000
Bolt (6x12)
1995-10-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
02162-0612B-000 SCREWBolt 1995-10-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
5
|
5
02162-0612A-000 SCREWBolt, bracket 1995-10-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
6
|
6
72372-82000-000 CUSHION,BACK DR SIDECushion 1995-10-01~ |
72372-82000-000 |
from US $2.12 |
||
|
7
|
7
72431-79E00-000
ステー,フロントフード
1995-10-01~ |
72431-79E00-000 |
— | ||
|
8
|
8
09209-14001-000 LINKAGE1995-10-01~ |
09209-14001-000 |
from US $1.55 |
||
|
9
|
9
09321-10023-000 CUSHION1995-10-01~ |
09321-10023-000 |
from US $1.82 |
||
|
10
|
10
09403-07307-5PK CLAMPブラック; 1995-10-01~ |
09403-07307-5PK |
from US $1.62 |
||
|
11
|
11
75270-79E00-000
SILENCER,FRONT HOOD
1995-10-01~ |
75270-79E00-000 |
— | ||
|
12
|
12
09409-06309-5ES CLIP(BLACK)ブラック; 1995-10-01~ |
09409-06309-5ES |
from US $1.44 |
||
|
13
|
13
82110-79E00-000
LATCH,HOOD
1995-10-01~ |
82110-79E00-000 |
— | ||
|
14
|
14
01580-06123-000
Bolt
1995-10-01~ |
01580-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01580-0612B-000 Bolt1995-10-01~ |
01580-0612B-000 |
US $0.96 |
||
|
14
|
14
01580-0612A-000 Bolt1995-10-01~ |
01580-0612A-000 |
from US $0.91 |
||
|
15
|
15
82160-79E00-000 CABLE,HOOD LATCH RELEASE1995-10-01~ |
82160-79E00-000 |
US $84 |
||
|
16
|
16
02142-05123-000
Screw 5x12
1995-10-01~ |
02142-05123-000 |
— | ||
| replacement | |||||
|
16
|
16
02142-0512A-000 SCREWScrew, lower 1995-10-01~ |
02142-0512A-000 |
from US $0.80 |
||
|
17
|
17
09407-05403-000 CLAMP,L:881995-10-01~ |
09407-05403-000 |
from US $0.91 |
||
